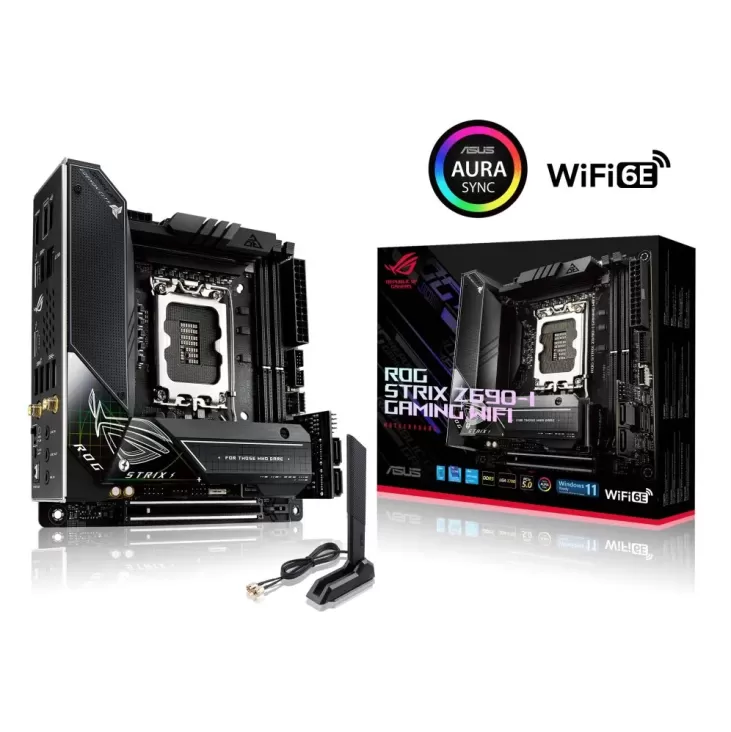

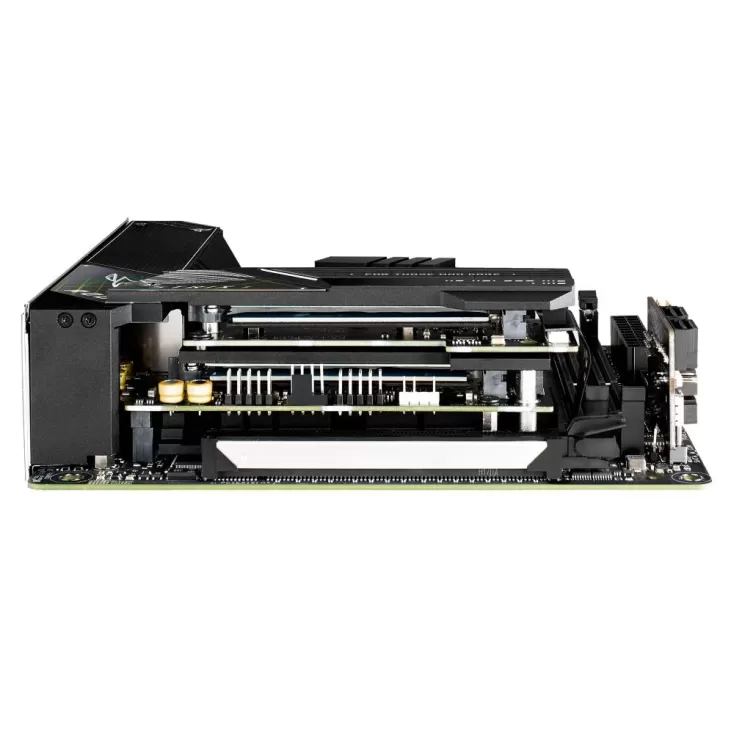

לוח אם Asus ROG STRIX Z690-I GAMING WIFI DDR5 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel^® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel^® 12th Gen processors support PCIe 4.0 x4 mode.

Intel^® Z690 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports***

* Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

*** Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports

2 x DIMM, Max. 64GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

OptiMem II

*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

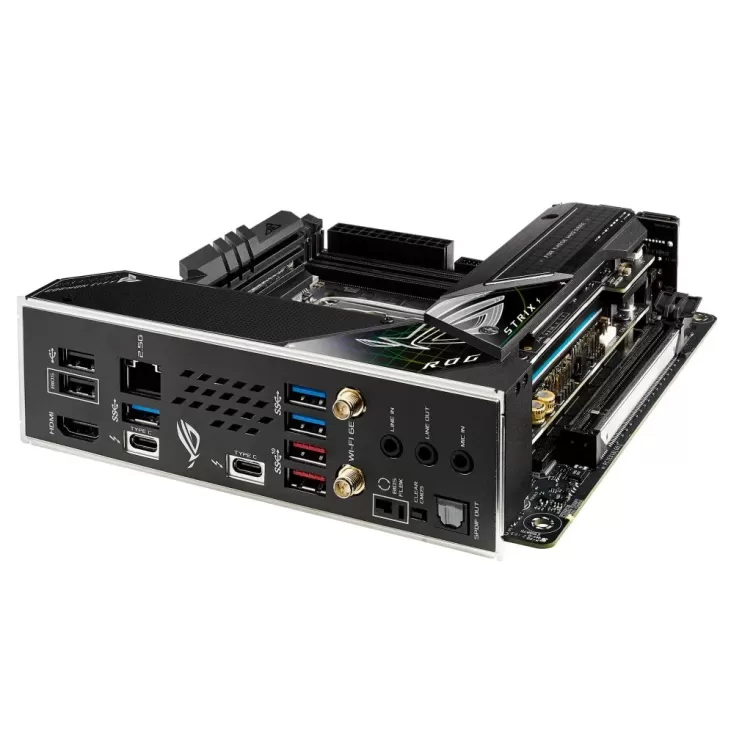

2 x Thunderbolt™ 4 USB Type-C^® port(s)

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

3 x USB 3.2 Gen 1 port(s) (3 x Type-A)

2 x USB 2.0 port(s) (2 x Type-A)

1 x HDMI^® port

1 x Wi-Fi Module

1 x Intel^® 2.5Gb Ethernet port

LED-illuminated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin AIO Pump header(s)

1 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C^®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

Miscellaneous

1 x Addressable Gen 2 header(s)

1 x AURA RGB header(s)

1 x 2 pin POWER_BTN header

2 x USB Type-C^® connectors to Install ROG Strix Front panel SATA card*

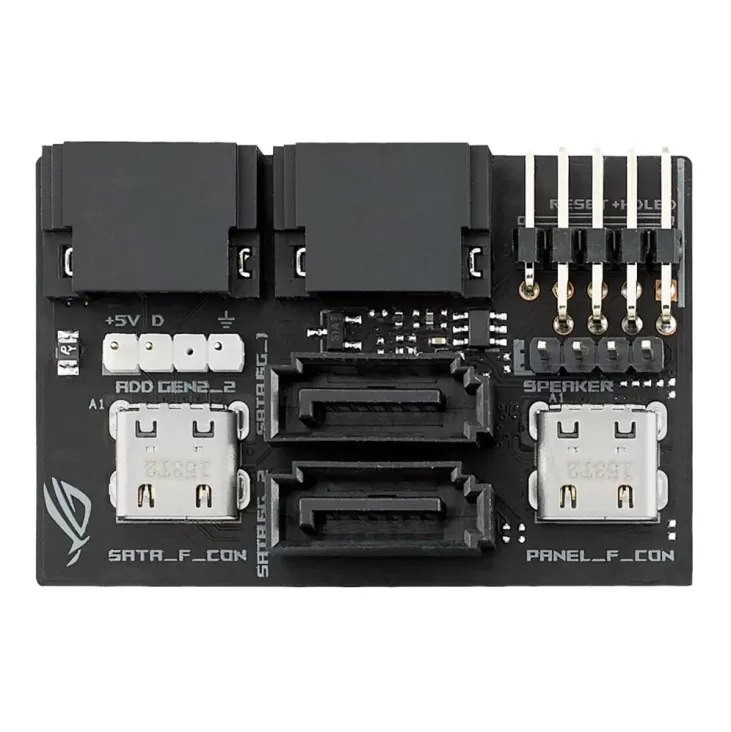

* Install ROG Strix Front panel SATA card to support 4 x SATA 6Gb/s ports, 1 x Addressable Gen 2 header, 1 x Front Panel header and 1 x Speaker header.

"ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback"

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- LED-illuminated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. "

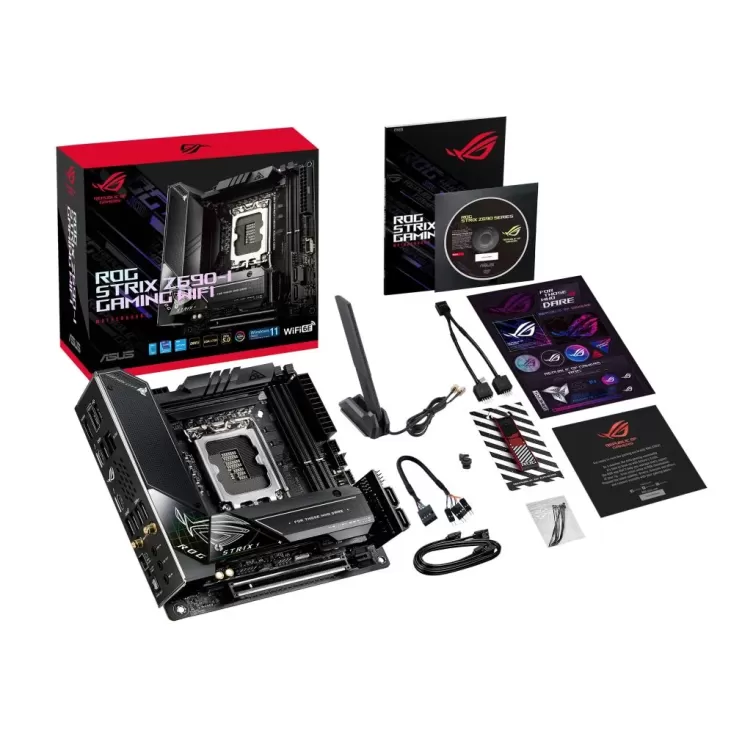

Cables

1 x ROG USB2.0 splitter cable

1 x Panel Cable

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Cable ties pack

1 x M.2 Q-Latch package(s)

1 x ROG key chain

1 x ROG logo plate stickers

1 x ROG Strix stickers

1 x ROG Strix thank you card

Installation Media

1 x Support DVD

Documentation

1 x User guide
