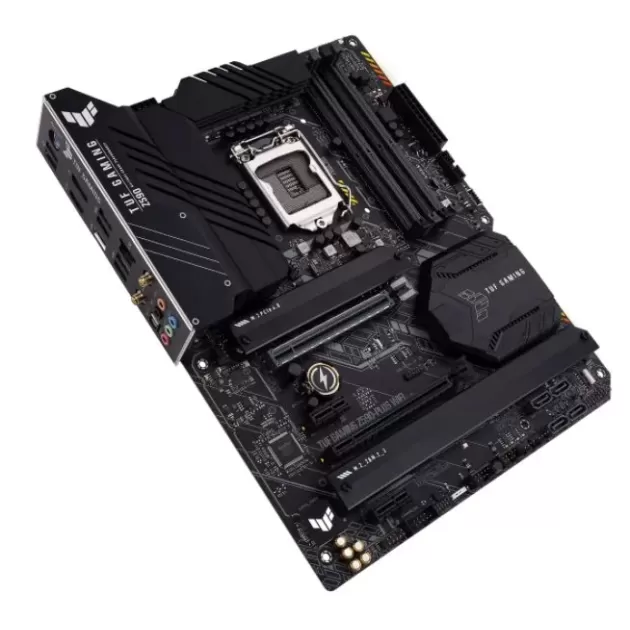

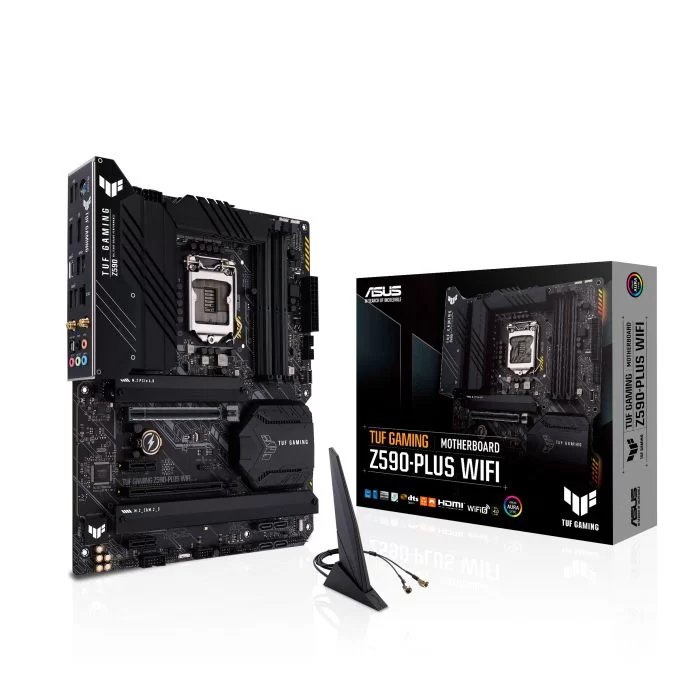

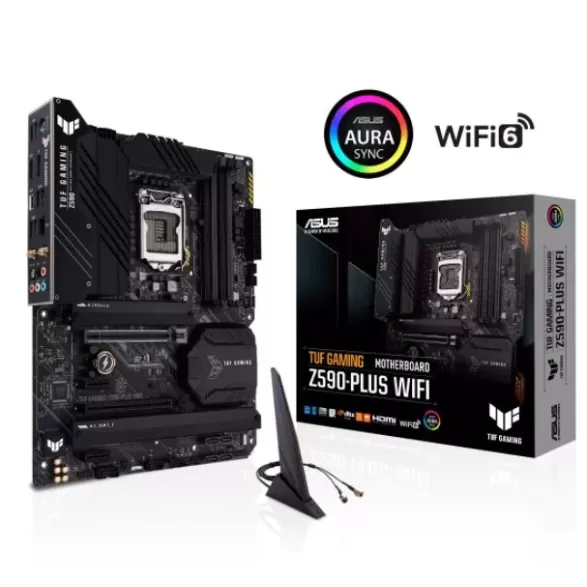

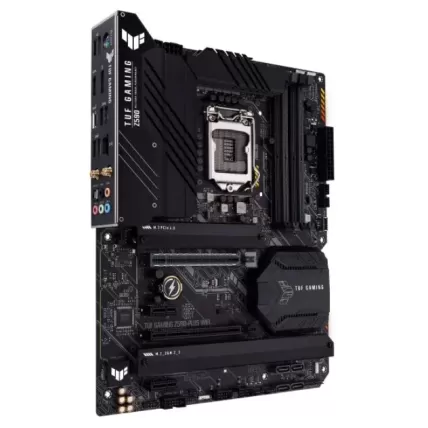

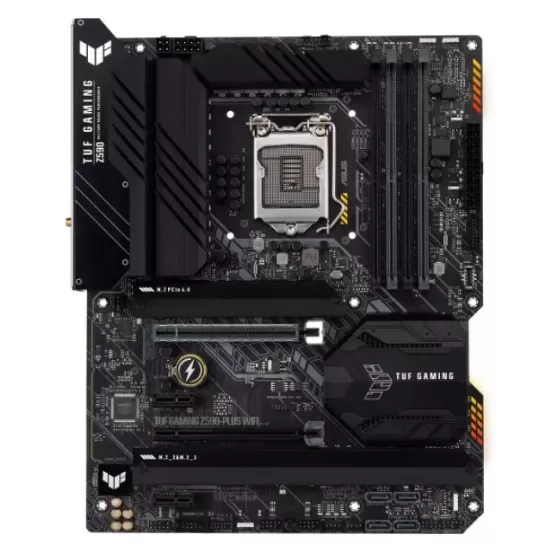

לוח אם Asus TUF GAMING Z590-PLUS WIFI DDR4 LGA1200

073-2241747

גיא אוני 6, אשדוד

Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110

- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel Z590 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)****

6 x SATA 6Gb/s ports

* Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.

** To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

*** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.

**** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.

DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

- Audio cover

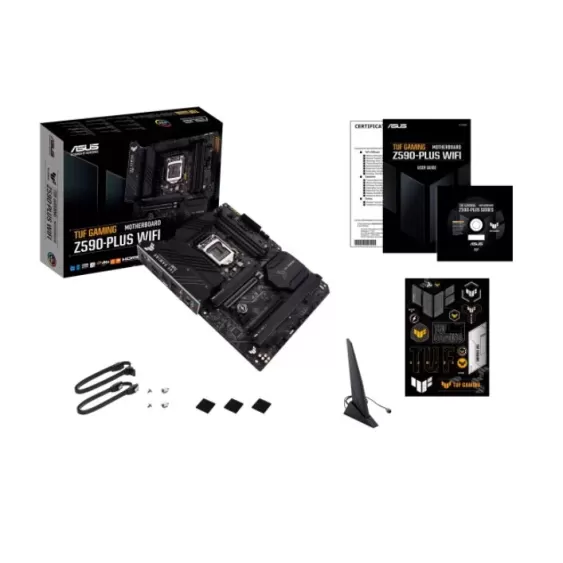

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

2 x M.2 Rubber Packages

1 x M.2 SSD screw package

1 x TUF Gaming sticker

Installation Media

1 x Support DVD

Documentation

1 x TUF Certification card

1 x User manual
