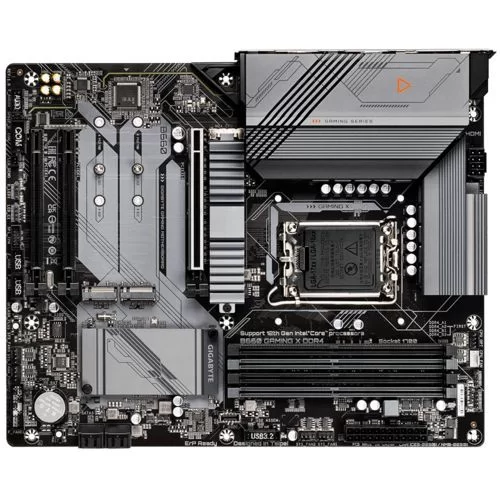

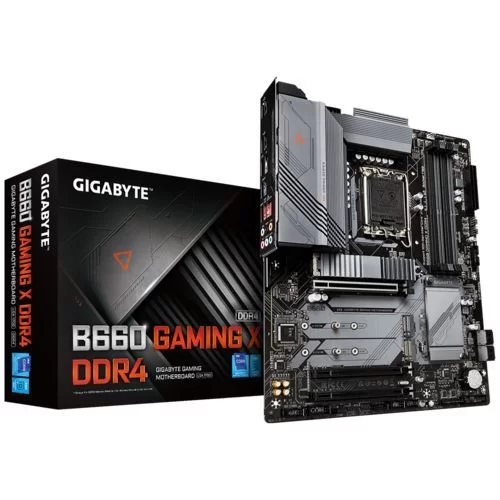

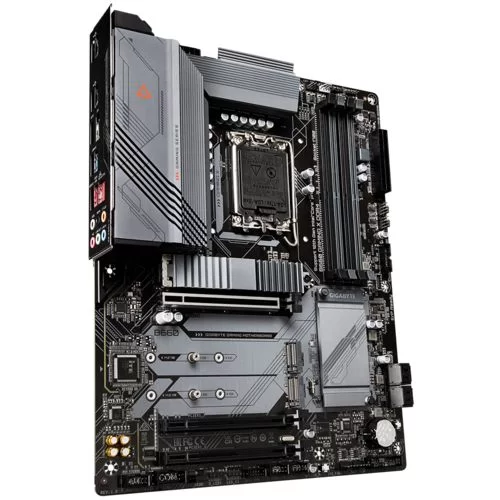

לוח אם Gigabyte B660 GAMING X DDR4 DDR4 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

1. Support for DDR4 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) /3200/3000/2933/2666/2400/2133 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

1. 1 x USB 3.2 Gen 2 Type-A port (red)
2. 2 x USB 3.2 Gen 1 ports
3. 5 x USB 2.0/1.1 ports
4. 1 x DisplayPort
5. 1 x HDMI 2.0 port
6. 1 x RJ-45 port
7. 6 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C header, with USB 3.2 Gen 2 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
17. 1 x serial port header
18. 1 x Q-Flash Plus button
19. 1 x reset button
20. 1 x reset jumper
21. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

1. Realtek Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
