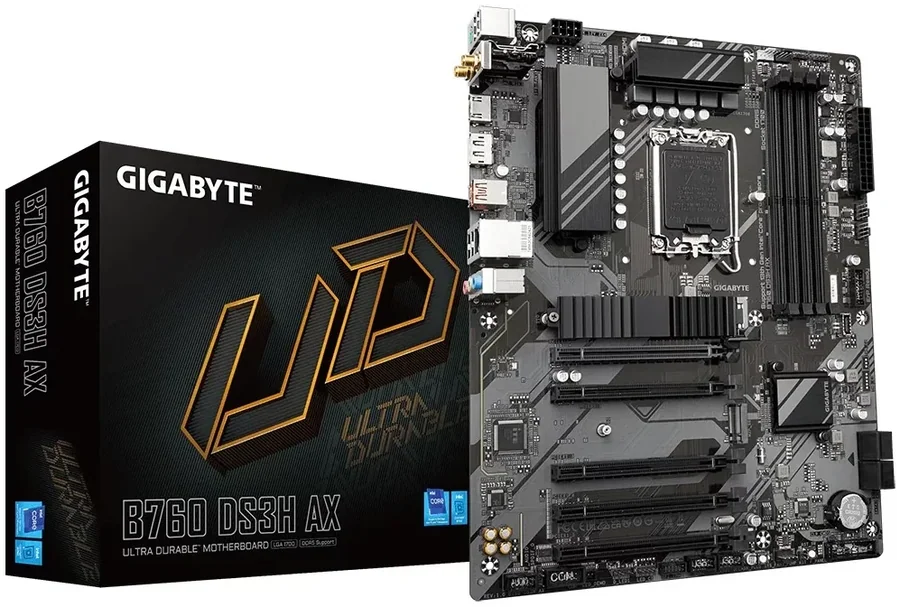

לוח אם Gigabyte B760 DS3H AX DDR5 LGA1700 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

1. 1 x PS/2 keyboard/mouse port
2. 2 x SMA antenna connectors (2T2R)
3. 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
4. 1 x USB 3.2 Gen 2 Type-A port (red)
5. 4 x USB 2.0/1.1 ports
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 2 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB Type-C^®&header, with USB 3.2 Gen 1 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x serial port header
19. 1 x Q-Flash Plus button
20. 1 x reset button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

1. Intel^®&Wi-Fi 6E AX210 (PCB rev. 1.0)
   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.3
   3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   Intel^®&Wi-Fi 6E AX211 (PCB rev. 1.1)
   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.3
   3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   Realtek^®&Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
   1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.3
   3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   (Actual data rate may vary depending on environment and equipment.)
