לוח אם Gigabyte H410M S2 DDR4 LGA1200 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x RGB LED strip header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x USB 3.2 Gen 1 header
10. 1 x USB 2.0/1.1 header
11. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
12. 1 x serial port header
13. 1 x Clear CMOS jumper

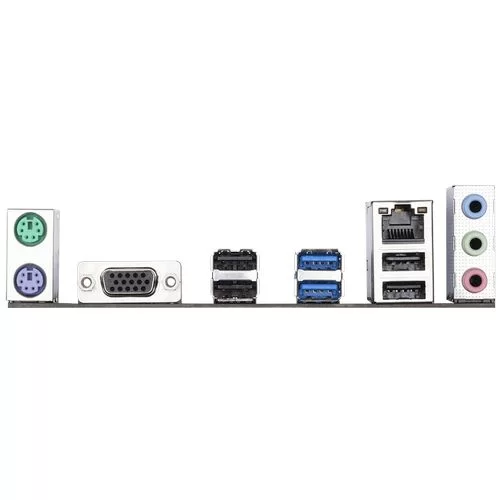

14. 1 x PS/2 keyboard port
15. 1 x PS/2 mouse port
16. 1 x D-Sub port
17. 2 x USB 3.2 Gen 1 ports
18. 4 x USB 2.0/1.1 ports
19. 1 x RJ-45 port
20. 3 x audio jacks

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
