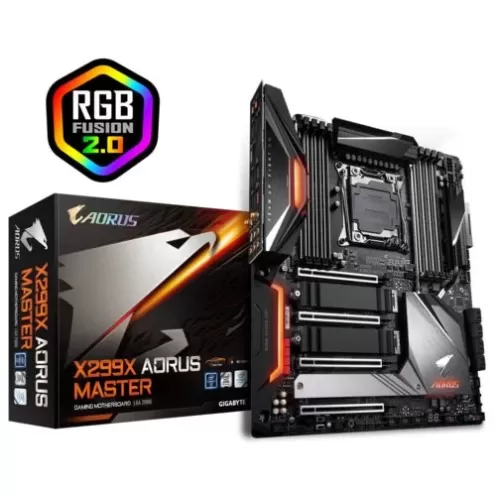

לוח אם Gigabyte X299X AORUS MASTER DDR4 LGA2066 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
   * The M2M and M2Q connectors become unavailable when an Intel Core X series 28-lane processor is used.

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)

8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

1. The M2M and M2Q connectors must work with an Intel VROC Upgrade Key to support RAID configuration. If you want to use VROC, refer to Chapter 3-4, "Configuring Intel Virtual RAID on CPU (Intel VROC)," for setup instructions.
2. * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel Optane Memory Ready

1. * Only Intel Core X series 48-lane processors support Intel Optane Memory.

Intel VROC Ready

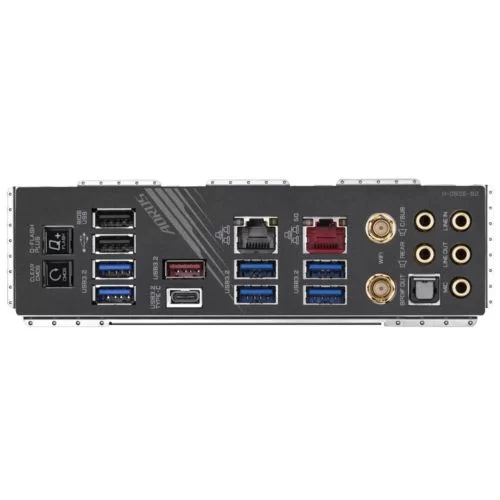

1. 1 x Q-Flash Plus button
2. 1 x Clear CMOS button
3. 1 x USB Type-C port, with USB 3.2 Gen 2 support
4. 1 x USB 3.2 Gen 2 Type-A port (red)
5. 6 x USB 3.2 Gen 1 ports
6. 2 x USB 2.0/1.1 ports
7. 2 x RJ-45 ports
8. 2 x SMA antenna connectors (2T2R)
9. 1 x optical S/PDIF Out connector
10. 5 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 3 x M.2 Socket 3 connectors
10. 8 x SATA 6Gb/s connectors
11. 1 x Intel VROC Upgrade Key header
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C port, with USB 3.2 Gen 2 support
15. 2 x USB 3.2 Gen 1 headers
16. 3 x USB 2.0/1.1 headers
17. 1 x noise detection header
18. 1 x Thunderbolt add-in card connector
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x power button
21. 1 x reset button
22. 2 x temperature sensor headers
23. 1 x Clear CMOS jumper
24. 2 x BIOS switches

1. Realtek ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS SABRE9218 DAC chip
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
2. 1 x Intel GbE LAN chip (10/100/1000 Mbit) (LAN2)
