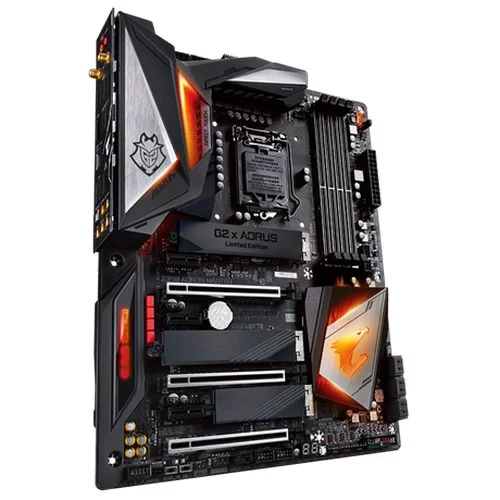

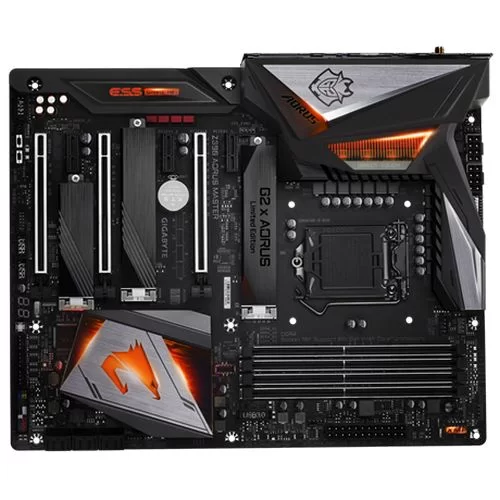

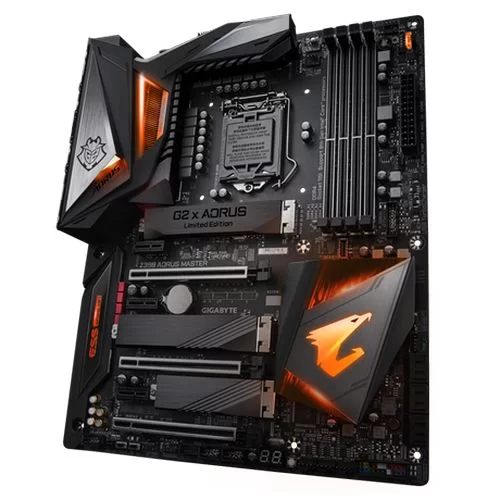

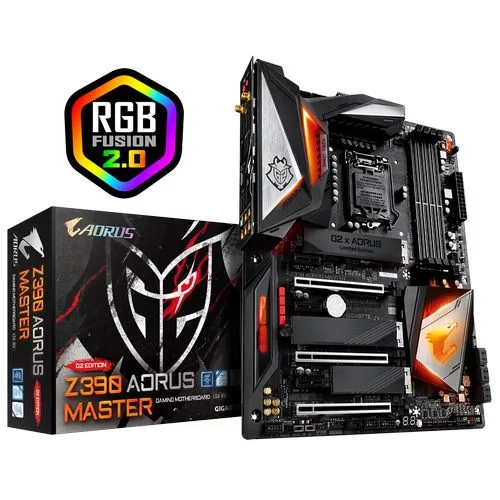

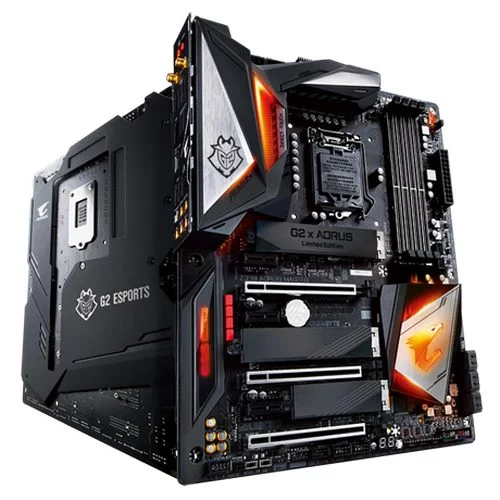

לוח אם Gigabyte Z390 AORUS MASTER G2 Edition DDR4 LGA1151 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 2 x system fan/water cooling pump headers
7. 2 x Addressable LED strip headers
8. 2 x Addressable LED strip power select jumpers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x S/PDIF Out header
15. 1 x USB Type-C port, with USB 3.1 Gen 2 support
16. 1 x USB 3.1 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x Thunderbolt add-in card connector
19. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
20. 1 x OC button
21. 1 x reset button
22. 2 x temperature sensor headers
23. 2 x BIOS switches
24. 1 x Clear CMOS jumper

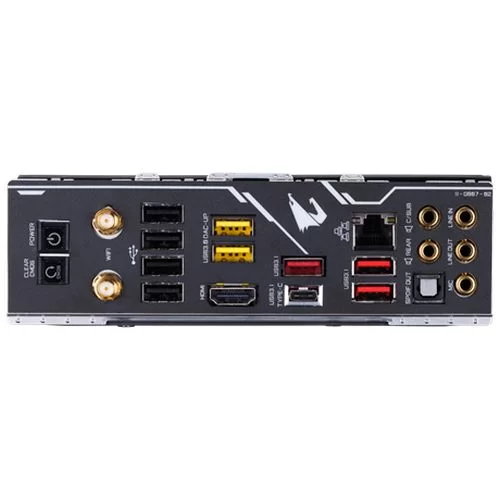

25. Voltage Measurement Points
26. 1 x Power/Reset button
27. 1 x Clear CMOS button
28. 2 x SMA antenna connectors (2T2R)
29. 1 x HDMI port
30. 1 x USB Type-C port, with USB 3.1 Gen 2 support
31. 3 x USB 3.1 Gen 2 Type-A ports (red)
32. 2 x USB 3.1 Gen 1 ports
33. 4 x USB 2.0/1.1 ports
34. 1 x RJ-45 port
35. 1 x optical S/PDIF Out connector
36. 5 x audio jacks

1. Realtek ALC1220-VB codec
   * The front panel line out jack supports DSD audio.
2. ESS SABRE 9118 DAC
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

1. Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5
3. Support for 11ac 160 Mhz wireless standard and up to 1.73 Gbps data rate
