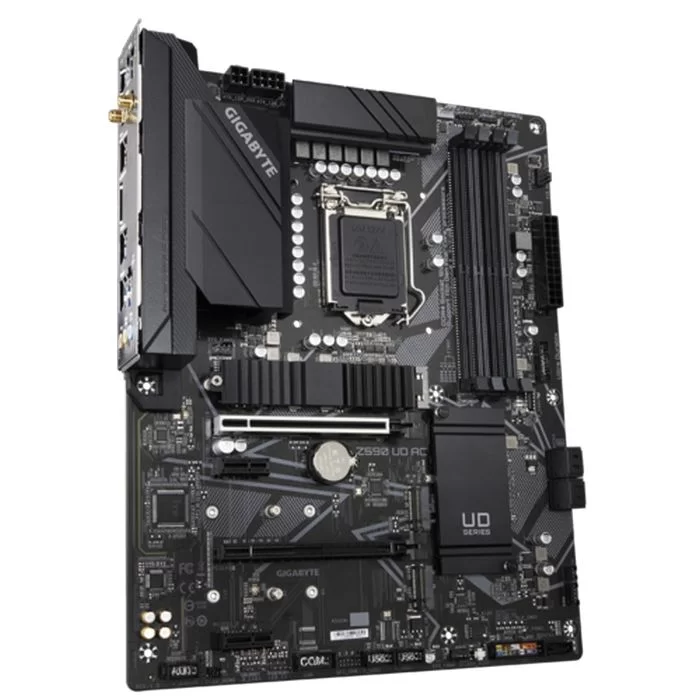

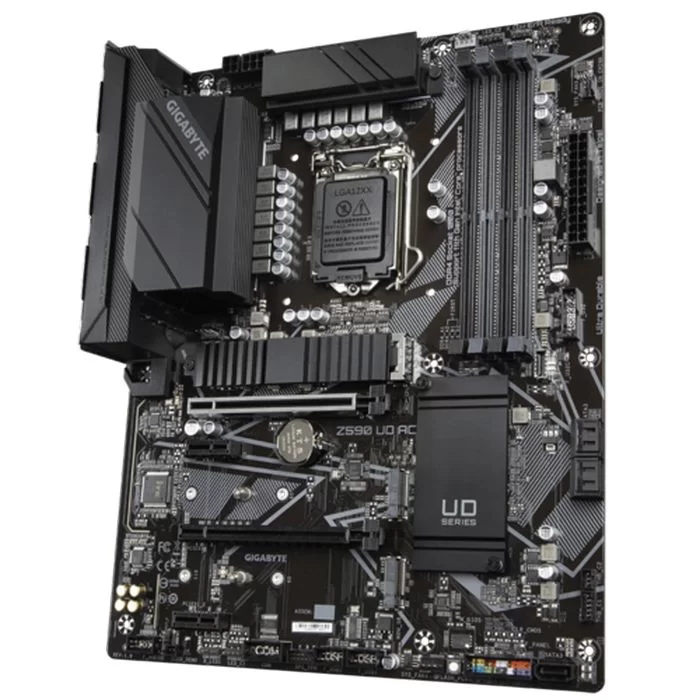

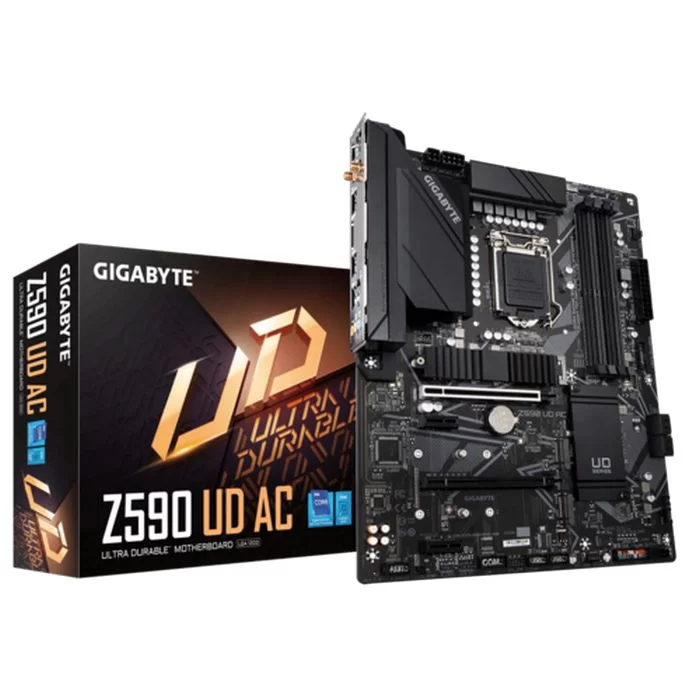

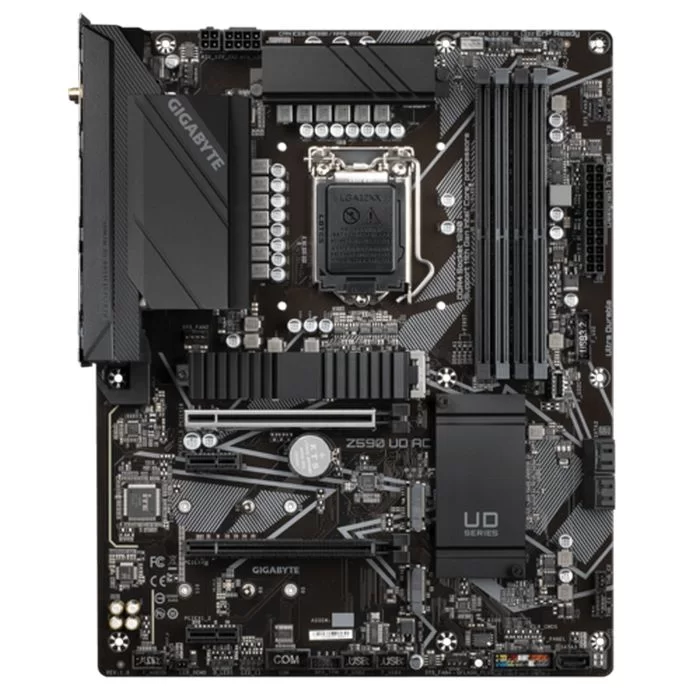

לוח אם Gigabyte Z590 UD AC DDR4 DIMM LGA1200

073-2241747

גיא אוני 6, אשדוד

1. 11th Generation Intel Core i9/i7/i5 processors:
   Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 Mhz
2. 10th Generation Intel Core i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 Mhz memory modules
3. 10th Generation Intel Core i5/i3/Pentium/Celeron processors:
   Support for DDR4 2666/2400/2133 Mhz memory modules
4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 4 x system fan headers
6. 2 x addressable LED strip headers
7. 2 x RGB LED strip headers
8. 1 x Q-Flash Plus button
9. 5 x SATA 6Gb/s connectors
10. 3 x M.2 Socket 3 connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB 3.2 Gen 1 header
15. 1 x USB Type-C header, with USB 3.2 Gen 1 support
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 2 x Thunderbolt add-in card connectors
19. 1 x serial port header
20. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

1. Realtek audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
4. Support for S/PDIF Out

Intel Wi-Fi AC 9462:

1. Intel CNVi interface 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.1
3. Support for 1x1 11ac wireless standard and up to 433 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
