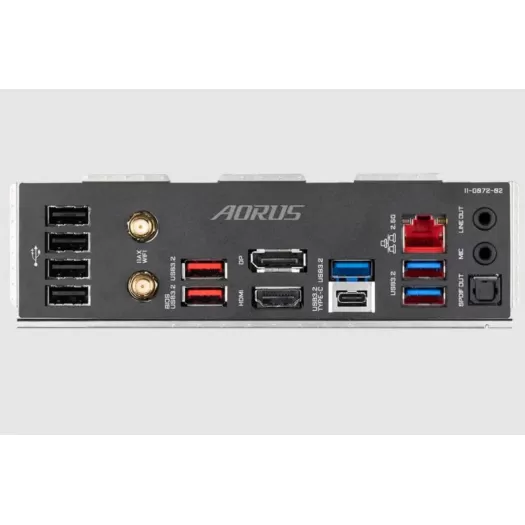

1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 2 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 2 x Thunderbolt add-in card connectors
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x reset button
20. 1 x Q-Flash Plus button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

1. Realtek ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2-channel analog output
4. Support for S/PDIF Out
   7.1-channel digital signals
   * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

Intel Wi-Fi 6 AX201:

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.
