• CPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
  2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  3. 6 x SATA 6Gb/s connectors
  Support for RAID 0, RAID 1, RAID 5, and RAID 10
  Intel^®&Optane™ Memory Ready
  * System acceleration with Intel^®&Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.

• Support for DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
• 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

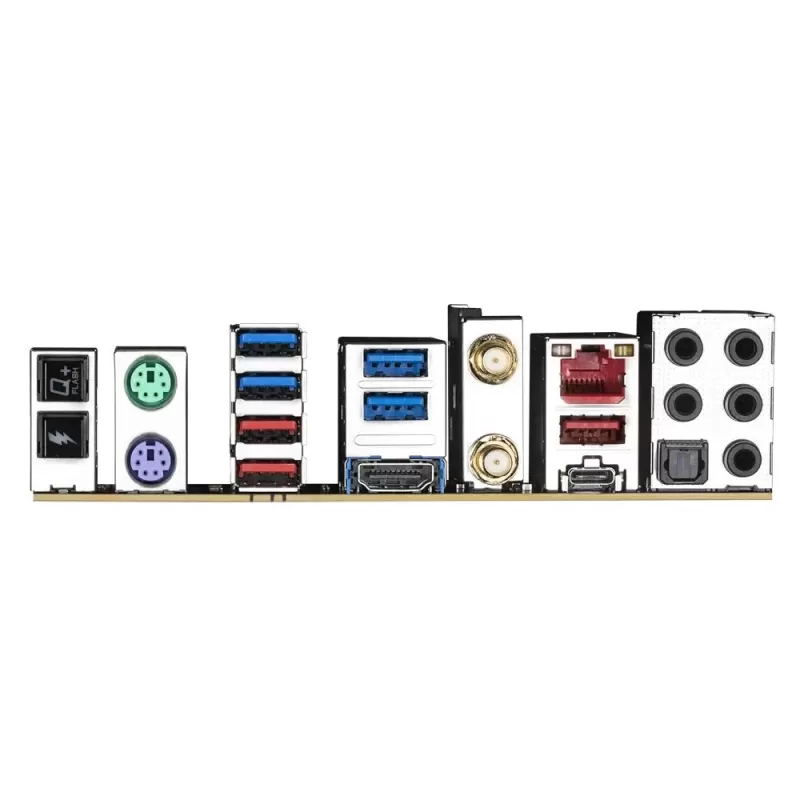

• 1. 1 x Q-Flash Plus button
  2. 1 x OC Ignition button
  3. 1 x PS/2 keyboard port
  4. 1 x PS/2 mouse port
  5. 2 x SMA antenna connectors (2T2R)
  6. 1 x HDMI port
  7. 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
  8. 3 x USB 3.2 Gen 2 Type-A ports (red)
  9. 4 x USB 3.2 Gen 1 ports
  10. 1 x RJ-45 port
  11. 1 x optical S/PDIF Out connector
  12. 5 x audio jacks

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x 6-pin OC_PEG power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 4 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 2 x Thunderbolt™ add-in card connectors
• 2 x temperature sensor headers
• Voltage Measurement Points
• 1 x Clear CMOS jumper
• 1 x power button (PW_SW)
• 1 x reset button (RST_SW)
• 1 x Clear CMOS button (CMOS_SW)
• 1 x Cold Reset button (RTY_SW)
• 1 x Protection Mode button (LIMP_MODE)
• 2 x BIOS switches (BIOS_SW/SB)
• 1 x CPU Ratio up button (RATIO_UP)
• 1 x CPU Ratio down button (RATIO_DW)
• 1 x OC Trigger switch (TGR)
• 1 x Reserved switch (RSV_SW)

1. Realtek^®&ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. Support for DTS:X^®&Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

Intel^®&Wi-Fi 6E AX210

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.
