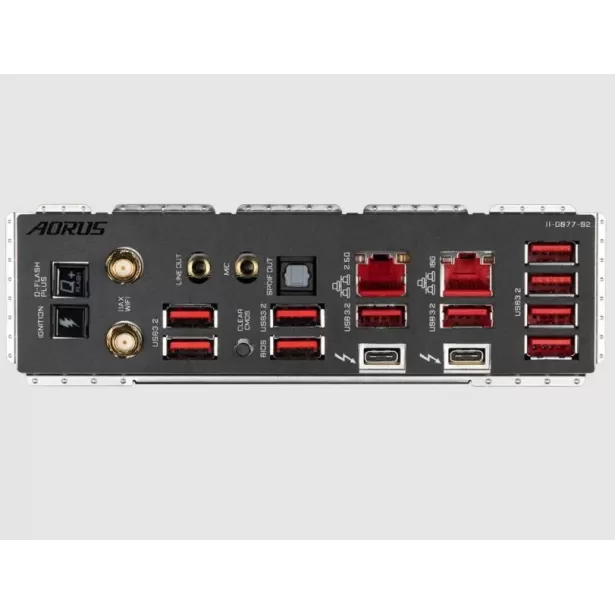

1. 1 x Q-Flash Plus button
2. 1 x OC Ignition button
3. 1 x Clear CMOS button
4. 2 x SMA antenna connectors (2T2R)
5. 2 x Thunderbolt 4 connectors (USB Type-C port, with USB 3.2 Gen 2 support)
6. 10 x USB 3.2 Gen 2 Type-A ports (red)
7. 2 x RJ-45 ports
8. 1 x optical S/PDIF Out connector
9. 2 x audio jacks
   * The mic in jack supports only mono microphone input.

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 4 x system fan headers
6. 4 x system fan/water cooling pump headers
7. 1 x noise detection header
8. 1 x AORUS RGB Memory Armor power header
9. 2 x addressable LED strip + RGB LED strip combo extension cable headers
10. 4 x SATA 6Gb/s connectors
11. 4 x M.2 Socket 3 connectors
12. 1 x front panel header
13. 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
14. 2 x USB 3.2 Gen 1 headers
15. 1 x USB 2.0/1.1 header
16. 2 x temperature sensor headers
17. 1 x power button
18. 1 x reset button

1. 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
2. DTS Sound Unbound
3. High Definition Audio
4. 2-channel
5. Support for S/PDIF Out

Intel Wi-Fi 6E AX210

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

1. Marvell AQtion AQC113C 10GbE LAN chip
   (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
2. Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
