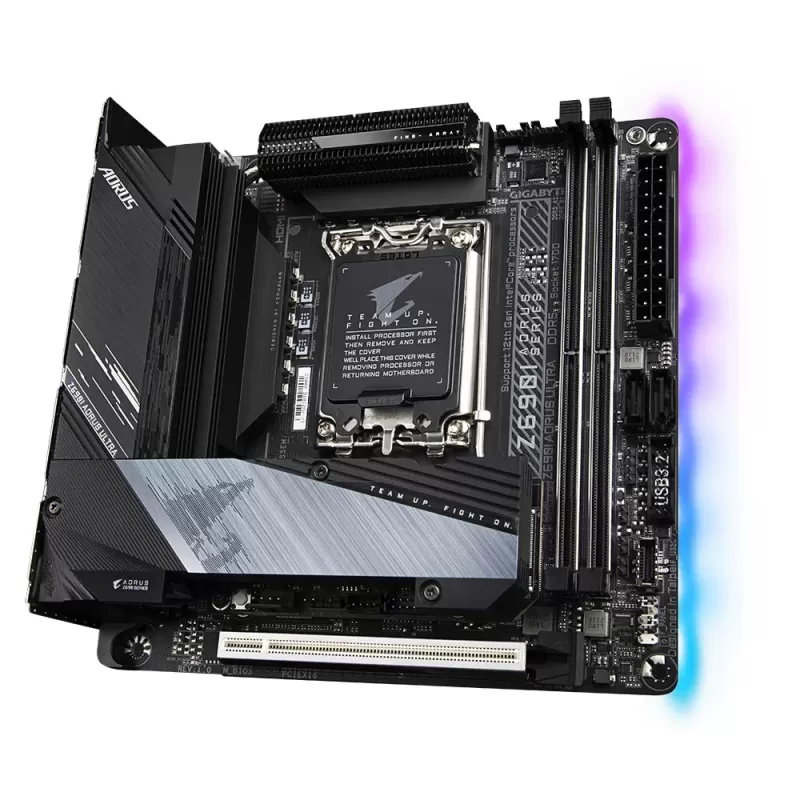

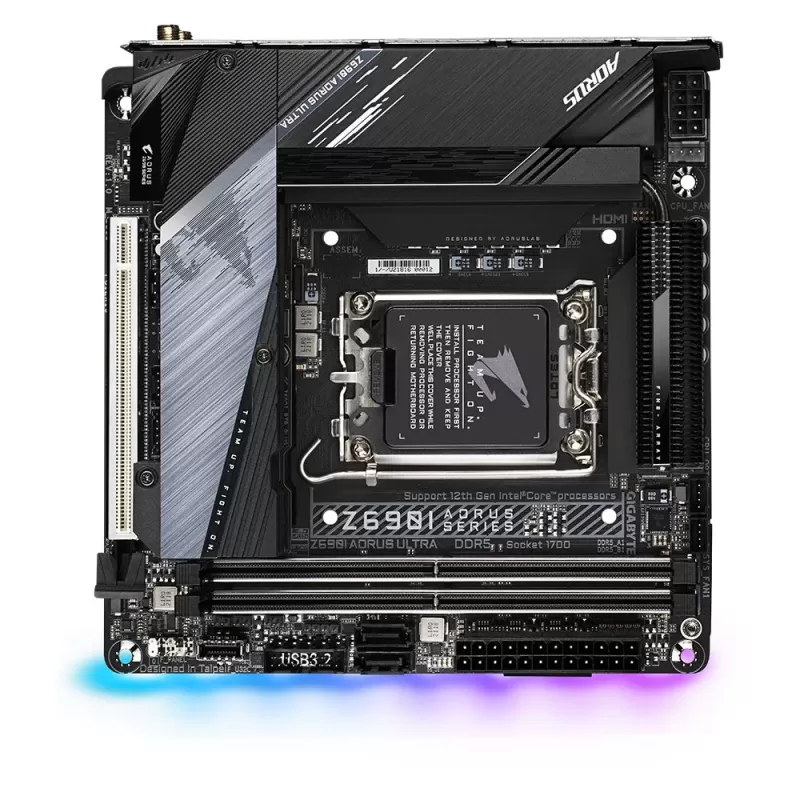

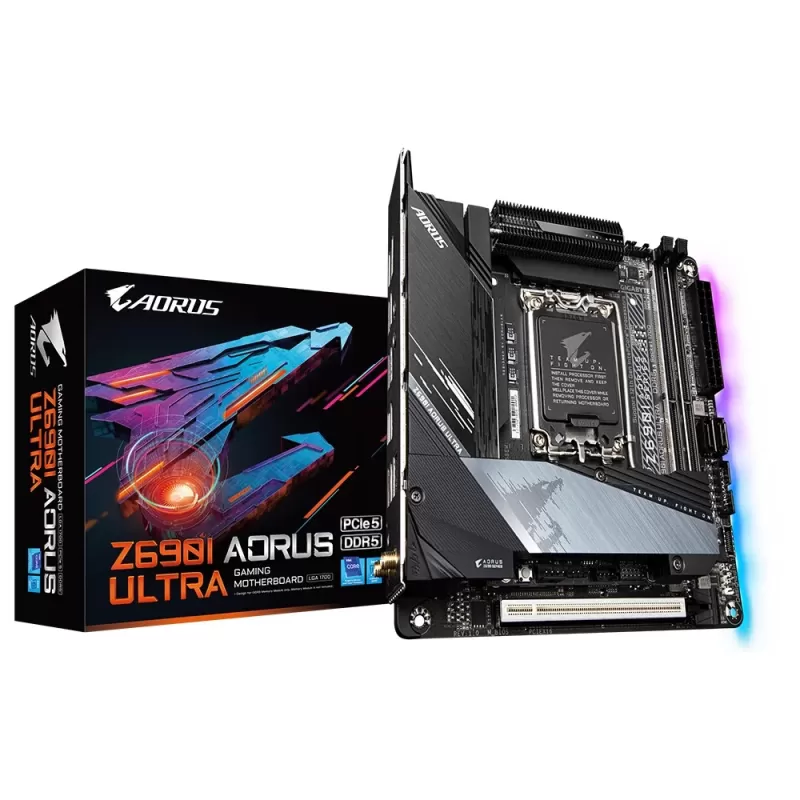

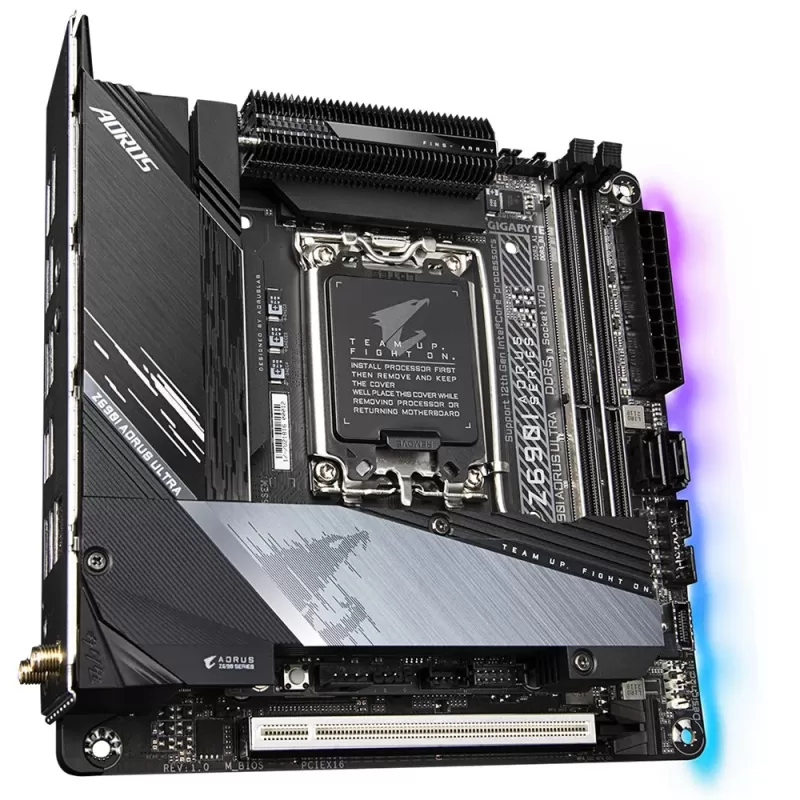

לוח אם Gigabyte Z690I AORUS ULTRA DDR5 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

1. Support for DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
2. 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

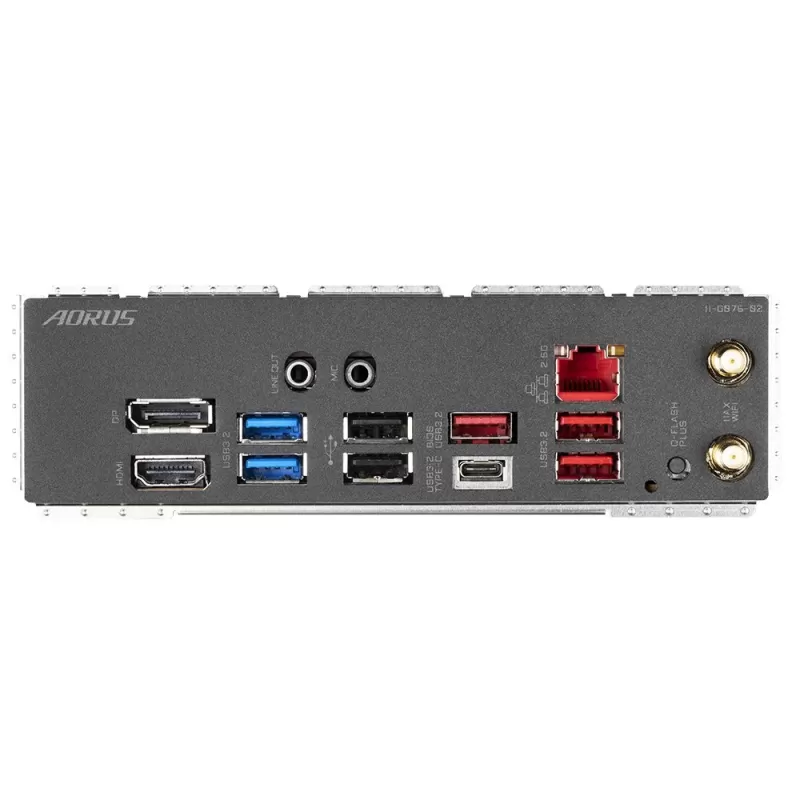

1. 2 x SMA antenna connectors (2T2R)
2. 1 x DisplayPort
3. 1 x HDMI port
4. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
5. 3 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x Q-Flash Plus button
9. 1 x RJ-45 port
10. 2 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x external power connector(Note 1)
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers(SYS_FAN1/SYS_FAN2(Note 1))
7. 1 x addressable LED strip header(Note 1)
8. 1 x RGB LED strip header
9. 2 x M.2 Socket 3 connectors(M2A_CPU(Note 2)/M2P_SB(Note 1))
10. 2 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header(routed from the adapter card on the rear panel)
13. 1 x speaker header
14. 1 x USB Type-C header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 1 x USB 2.0/1.1 header(Note 1)
17. 1 x reset button(Note 1)
18. 1 x reset jumper
19. 1 x Clear CMOS jumper

Intel Wi-Fi 6 AX201:

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

לקבל מידע מלא על מוצר - מעבר לעמוד המוצר
