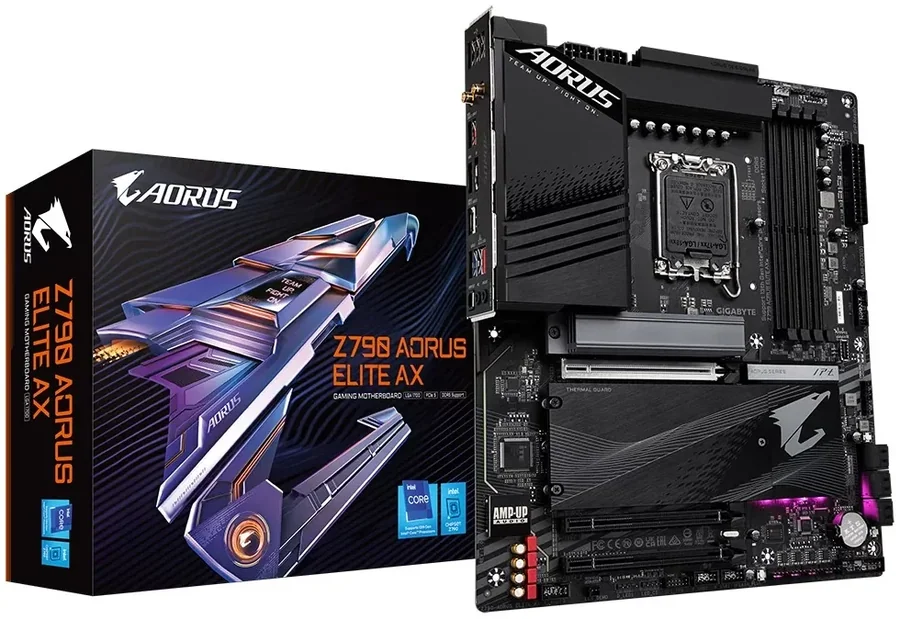

לוח אם Gigabyte Z790 AORUS ELITE AX DDR5 DIMM LGA1700 - יבואן רשמי

073-2241747

גיא אוני 6, אשדוד

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

1. 1 x USB Type-C^®&port, with USB 3.2 Gen 2x2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI 2.0 port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 2 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 4 x M.2 Socket 3 connectors
10. 6 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x USB Type-C^®&header, with USB 3.2 Gen 2 support
14. 1 x USB 3.2 Gen 1 header
15. 2 x USB 2.0/1.1 headers
16. 2 x Thunderbolt™ add-in card connectors
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x reset button
19. 1 x Q-Flash Plus button
20. 1 x Clear CMOS button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

1. Realtek^®&Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

Intel^®&Wi-Fi 6E AX211

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

1. Realtek^®&2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
