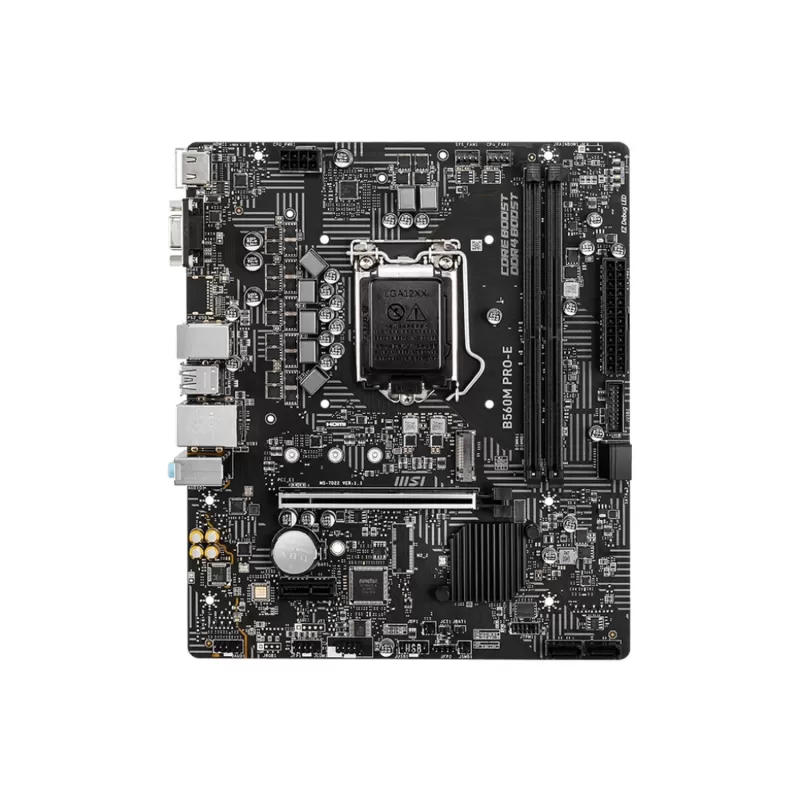

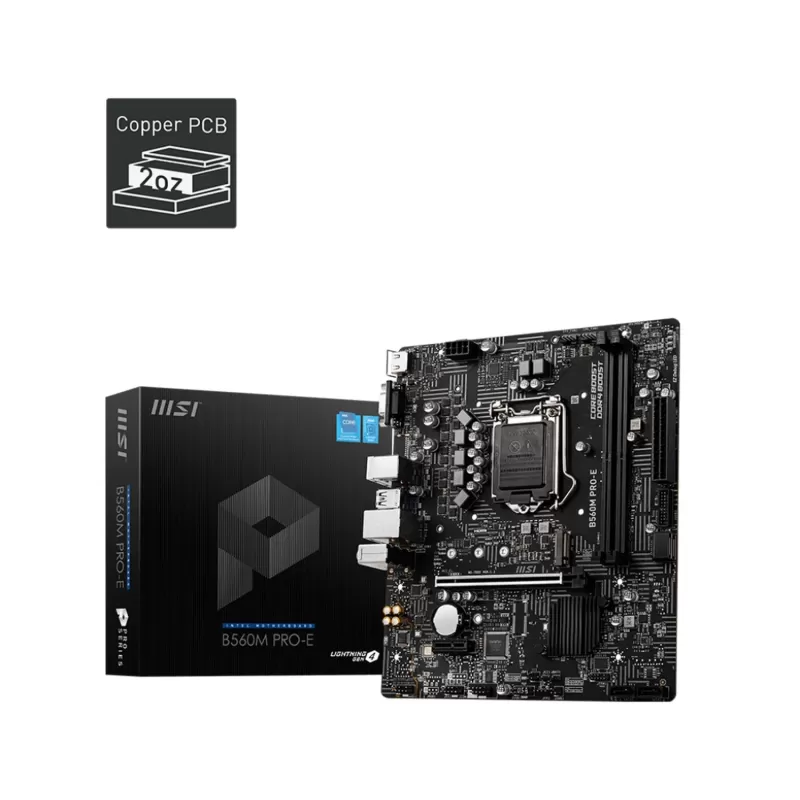

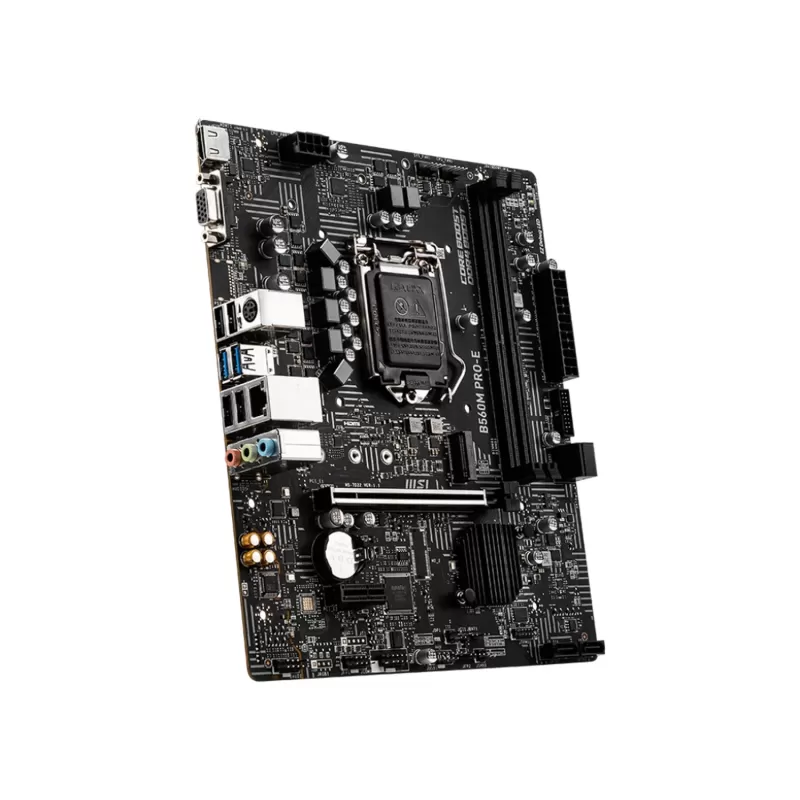

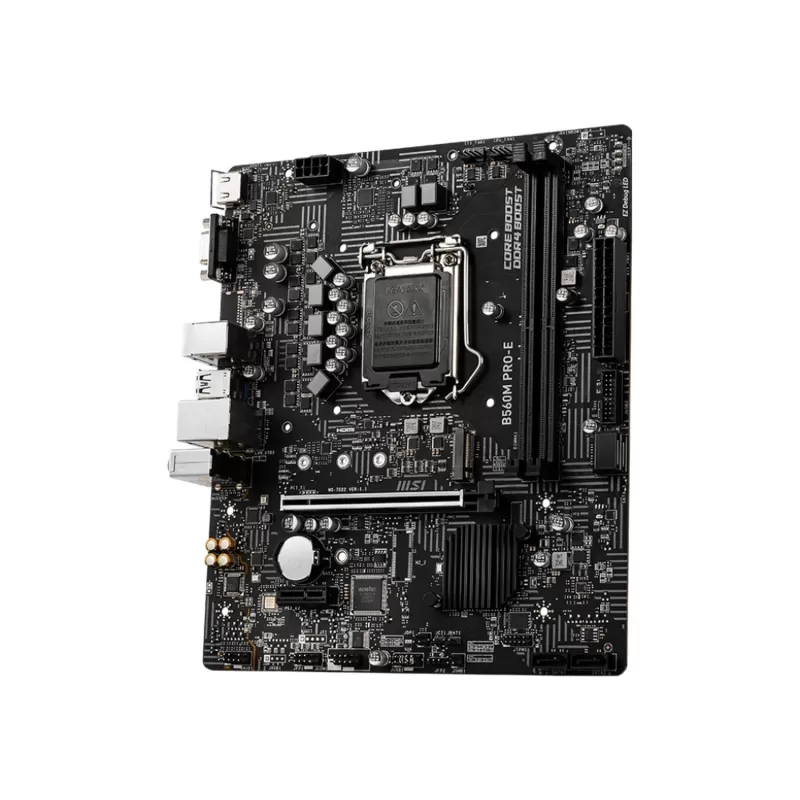

לוח אם MSI B560M PRO-E DDR4 LGA1200

073-2241747

גיא אוני 6, אשדוד

Intel^®&B560 Chipset

• 4x SATA 6Gb/s ports (From B560 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From B560 Chipset)
    • Supports up to PCIe 3.0 x4
    • Supports SATA 6Gb/s¹
    • Supports 2242/ 2260/ 2280 storage devices

1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

• 2x DDR4 memory slots, support up to 64GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^®&CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^®&CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 4800 MHz
  • 1DPC 2R Max speed up to 4600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^®&Extreme Memory Profile (XMP)

1. Please refer to www.msi.com for more information on compatible memory

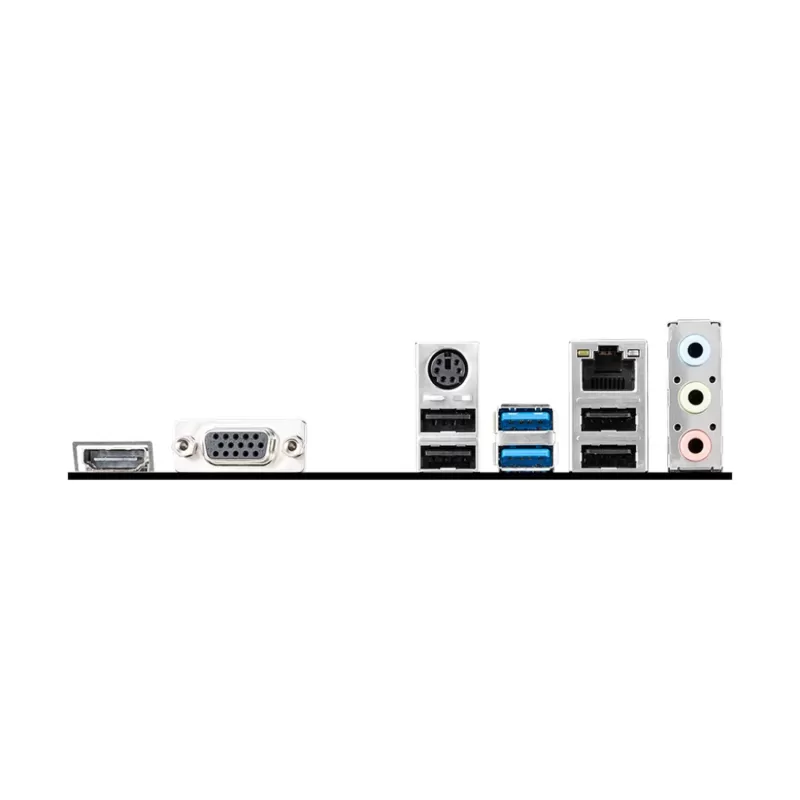

1. HDMI™
2. VGA
3. Mouse / Keyboard
4. LAN port
5. Audio connector
6. USB 2.0
7. USB 3.2 Gen 1 5Gbps Type-A
8. USB 2.0

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

Realtek^®&ALC892/ ALC897 Codec

• 7.1-Channel High Definition Audio
