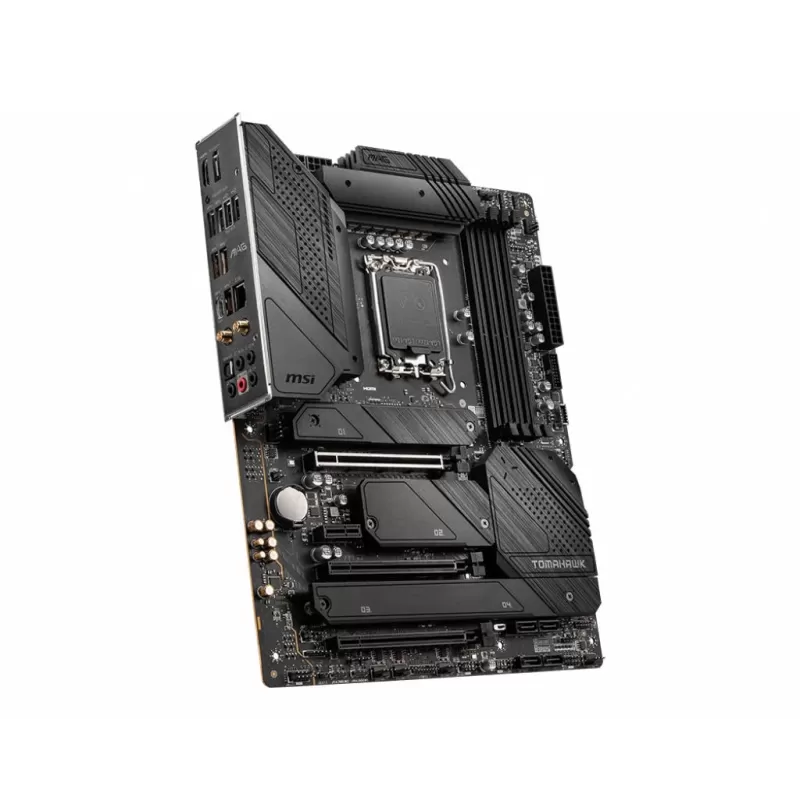

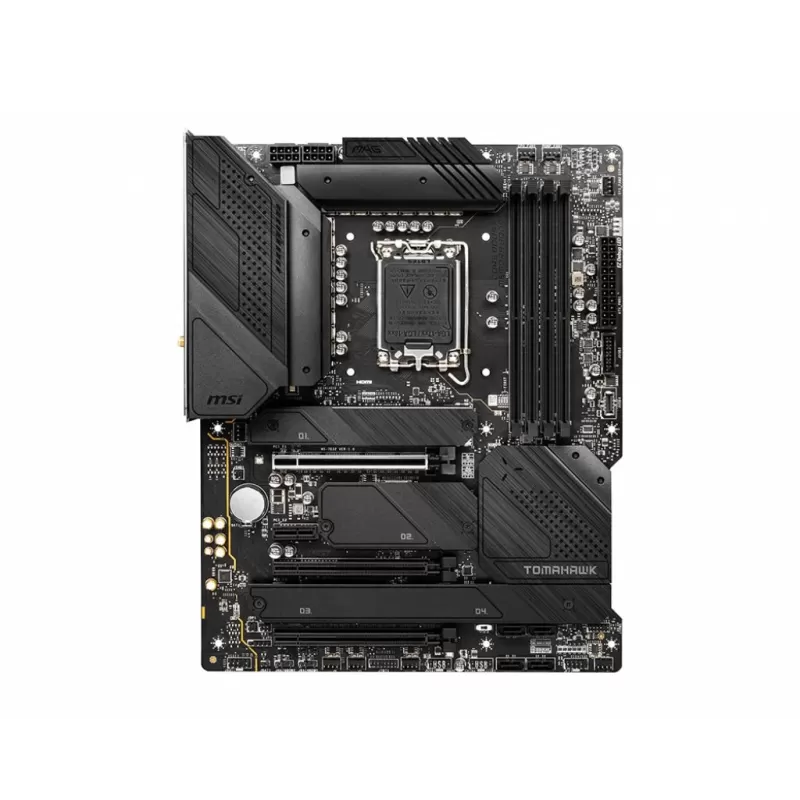

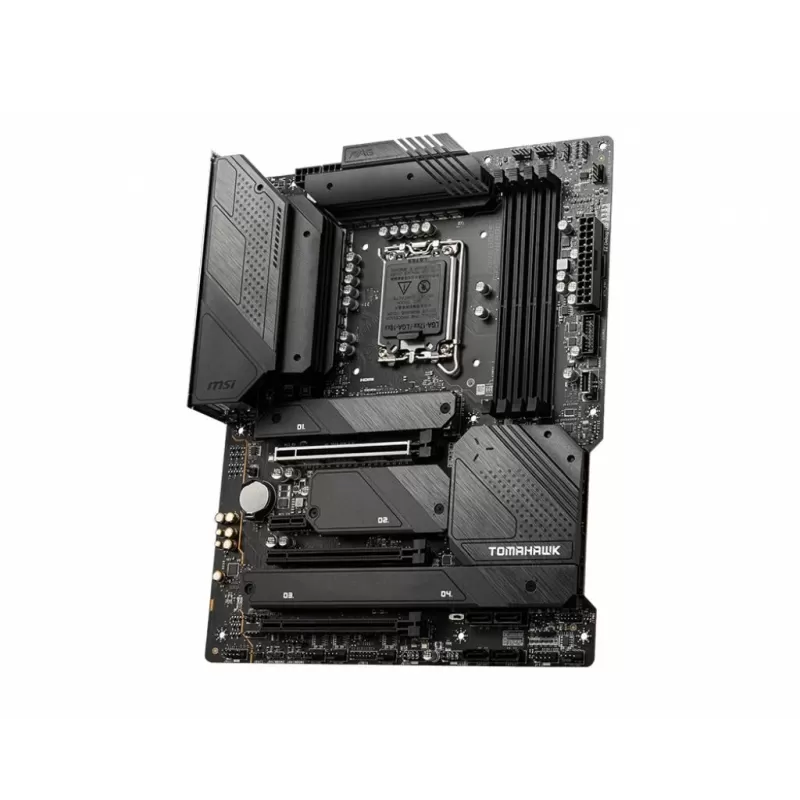

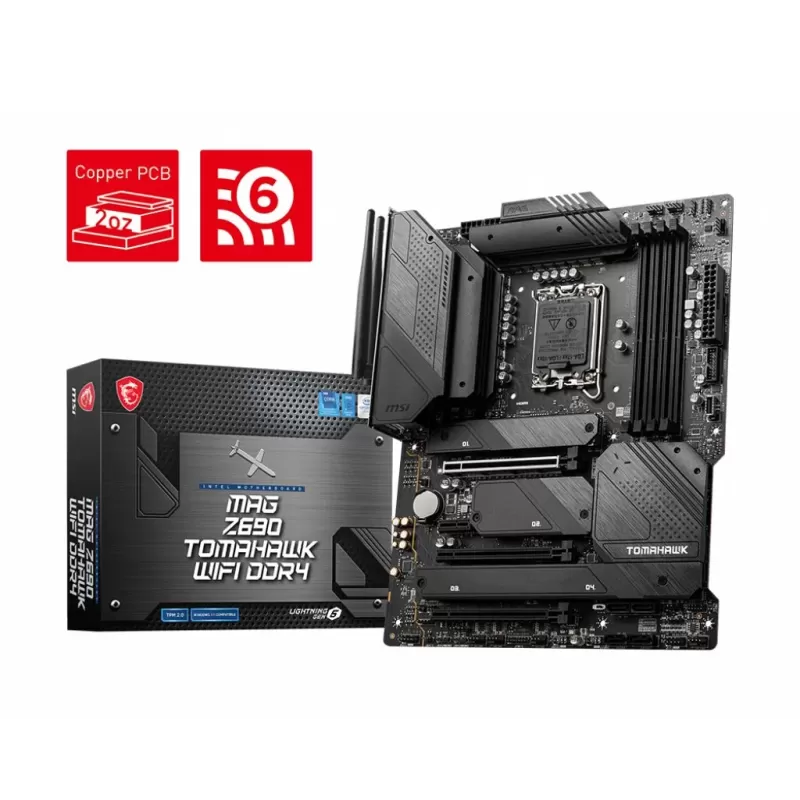

לוח אם MSI MAG Z690 TOMAHAWK WIFI DDR4 LGA1700

073-2241747

גיא אוני 6, אשדוד

• 6x SATA 6Gb/s ports (From Z690 chipset)
• 4x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 chipset)
    • Supports up to PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (From Z690 chipset)
    • Supports up to PCIe 3.0 x4
    • Supports up to SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (From Z690 chipset)
    • Supports up to PCIe 4.0 x4
    • Supports up to SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
• Intel^®&Optane™ Memory Ready for M.2 slots from Z690 Chipset
• Supports Intel^®&Smart Response Technology for Intel Core™ processors

• 4x DDR4 memory slots, support up to 128GB&¹
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^®&Extreme Memory Profile (XMP)

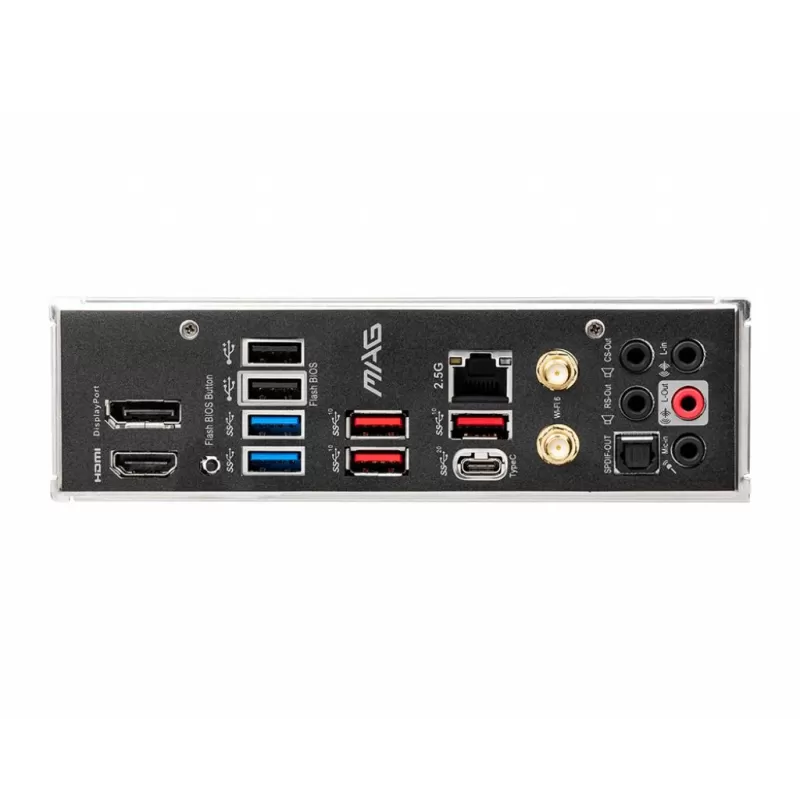

1. DisplayPort 1.4
2. USB 2.0 Port
3. USB 3.2 Gen 2 10Gbps Type-A
4. 2.5G LAN Port
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. HDMI 2.1 Port
8. Flash BIOS Button
9. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2 10Gbps Type-A
11. USB 3.2 Gen 2x2 20Gbps Type-C
12. Optical S/PDIF OUT

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

Realtek^®&ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

• Intel^®&Wi-Fi 6
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth^®&5.2
