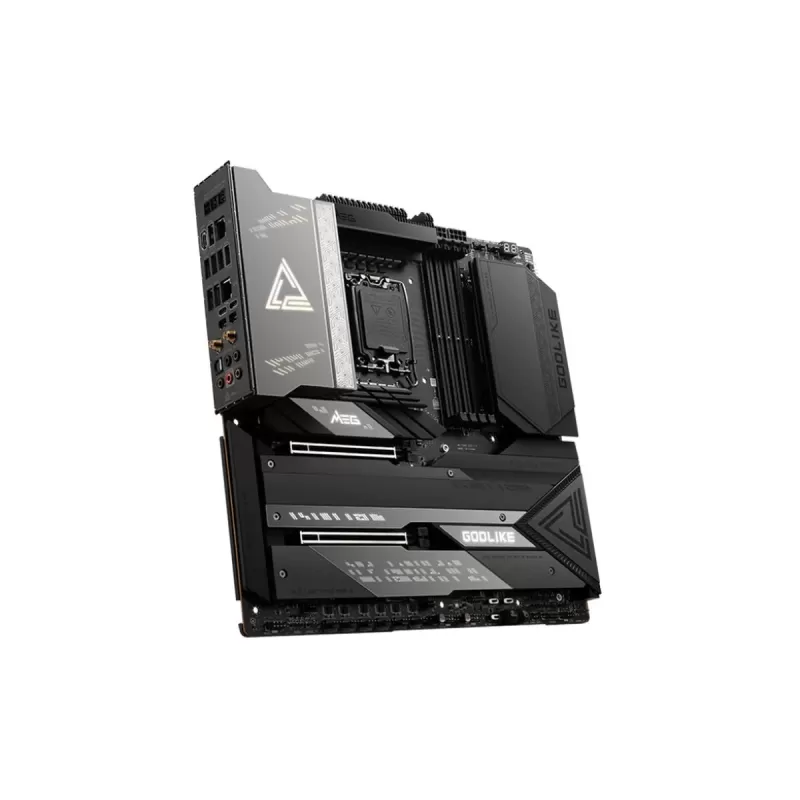

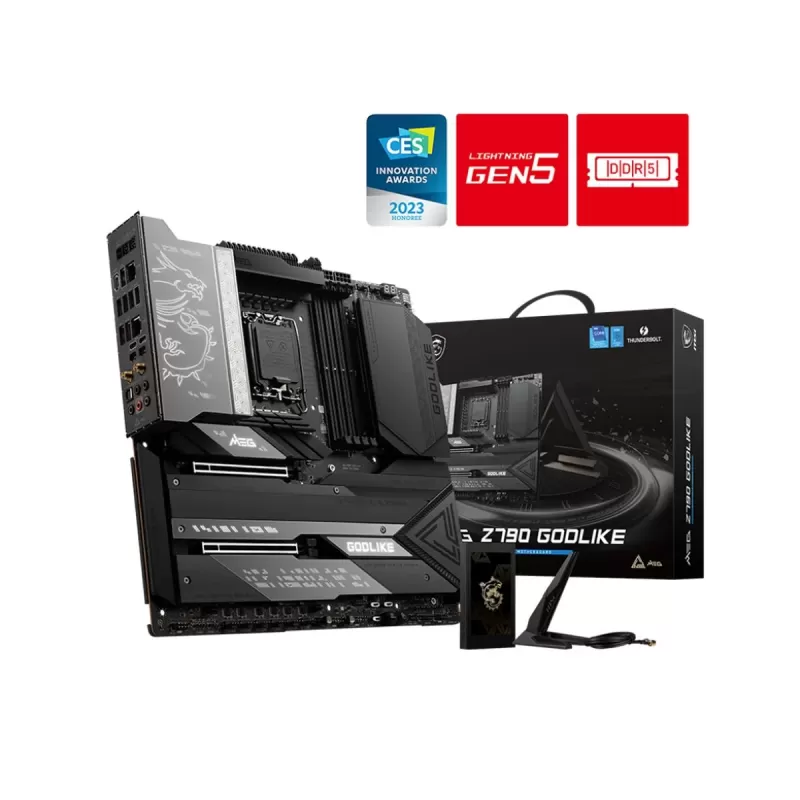

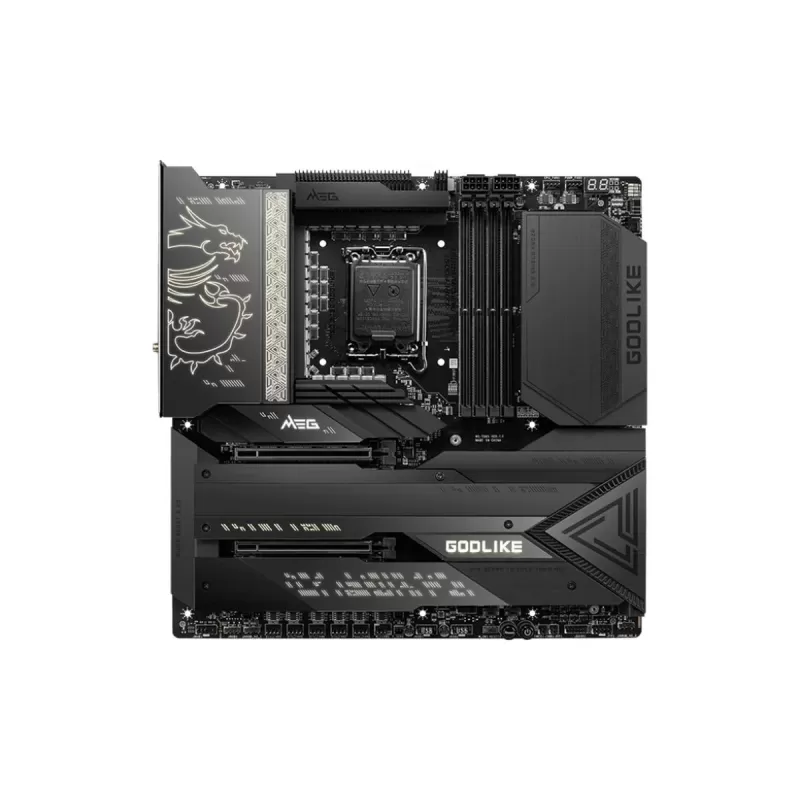

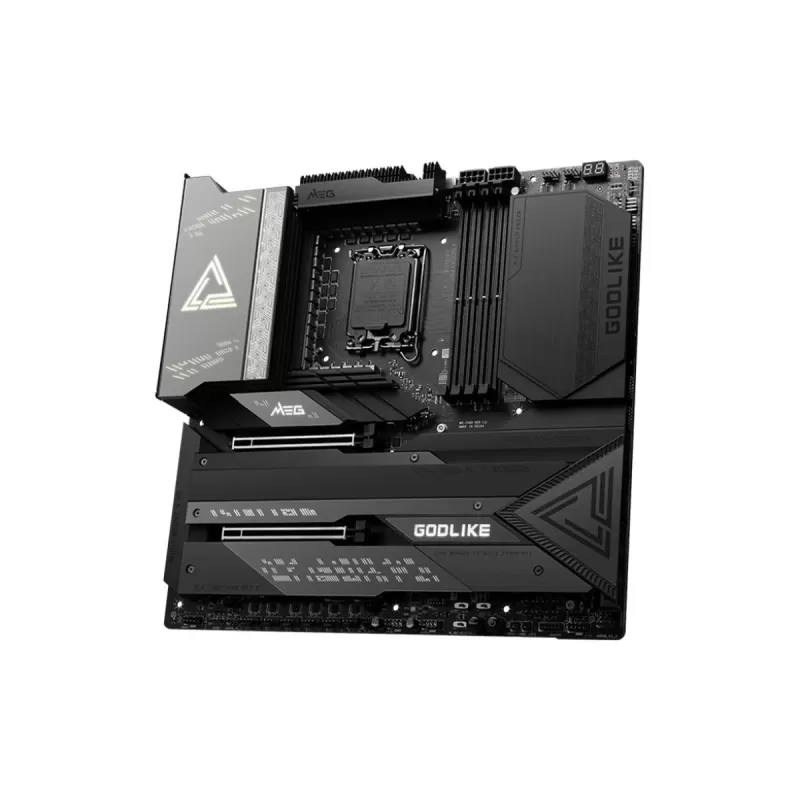

לוח אם MSI MEG Z790 GODLIKE DDR5 DIMM LGA1700

073-2241747

גיא אוני 6, אשדוד

7x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G

*PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot.
**SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot.
***SATA5~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.

4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel^®&XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

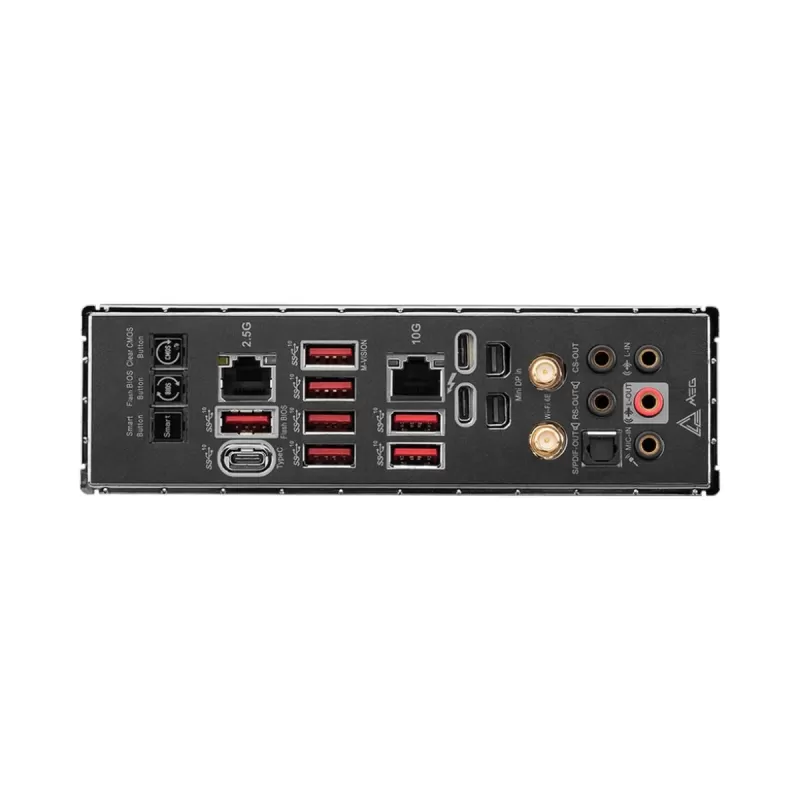

• Clear CMOS Button
• Flash BIOS Button
• 2.5G LAN
• 10G Super LAN
• Thunderbolt 4 40Gbps (Type-C)
• Wi-Fi / Bluetooth
• Audio Connectors
• Smart Button
• USB 3.2 Gen 2 10Gbps (Type-C)
• USB 3.2 Gen 2 10Gbps (Type-A)
• Mini DisplayPort Input (for Thunderbolt passthrough)
• Optical S/PDIF-Out

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
7x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
2x USB 3.2 Gen 2x2 Type C ports
V-check point

Realtek^®&ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

ntel^®&Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^®&5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Marvell^®&AQC113CS-B1-C 10Gbps LAN
Intel^®&2.5Gbps LAN
