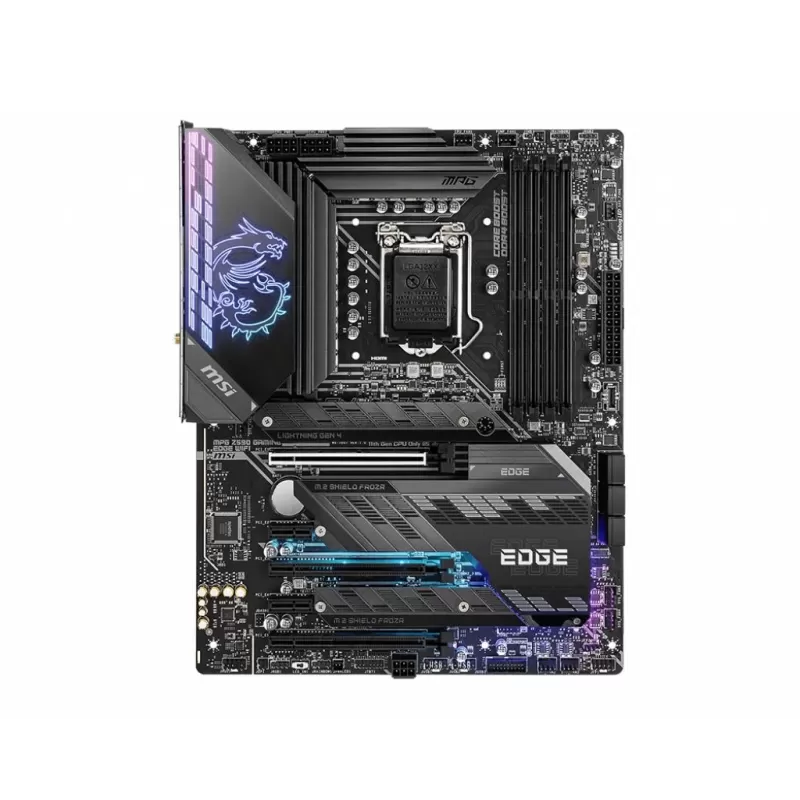

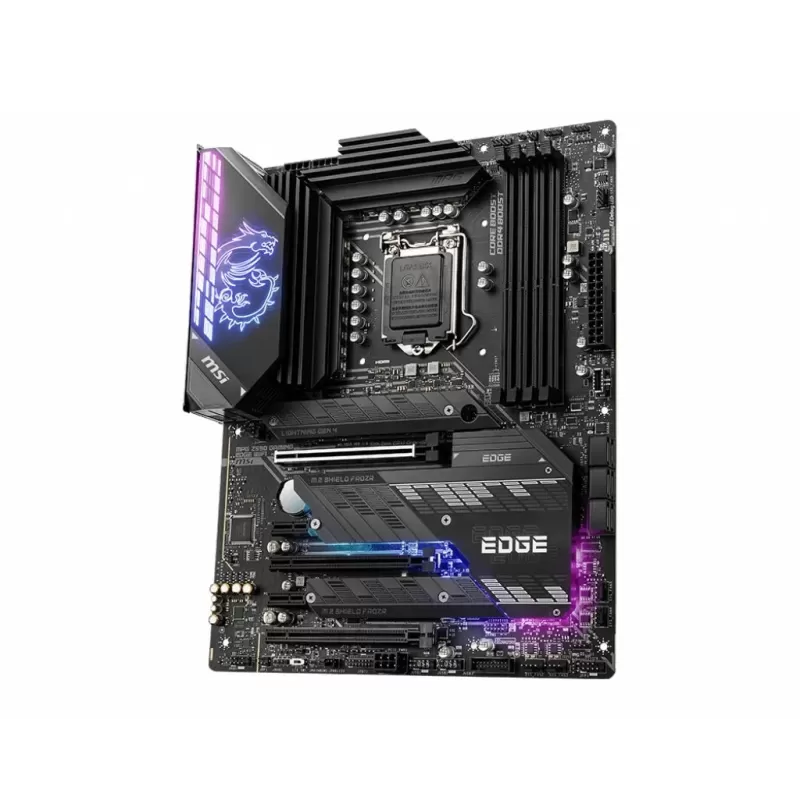

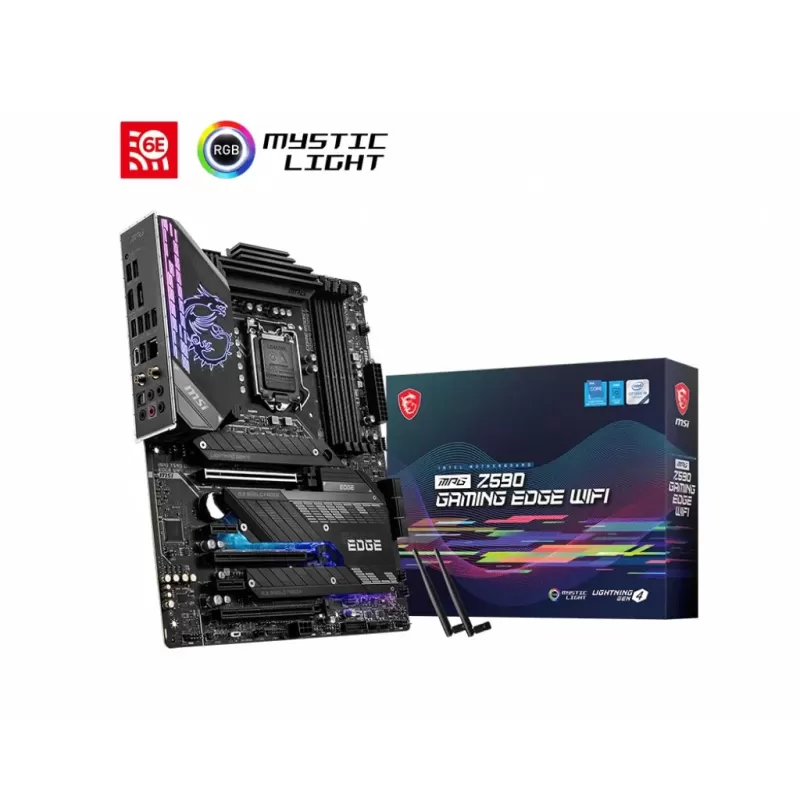

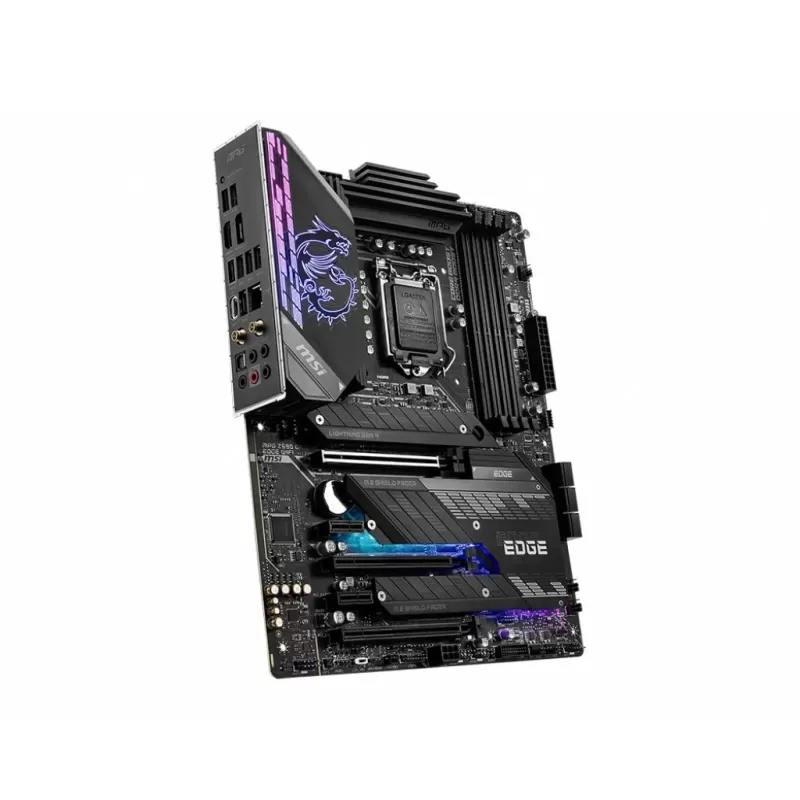

לוח אם MSI MPG Z590 GAMING EDGE WIFI DDR4 LGA1200

073-2241747

גיא אוני 6, אשדוד

• 6x SATA 6Gb/s ports (From Z590 Chipset)
• 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
    • Available only on 11th Gen Intel^®&CPU
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2¹&& M2_3²&slot (From Z590 Chipset)
    • Support up to PCIe 3.0 x4 and SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
    • Intel^®&Optane™ Memory Ready³
• Supports Intel^®&Smart Response Technology for Intel^®&Core^™&processors

1. PCI_E3 will be unavailable when installing M.2 SSD in the M2_2 slot. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
2. SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.
3. Before using Intel^®&Optane^™&memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

• 4x DDR4 memory slots, support up to 128GB¹
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^®&CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^®&CPU (by JEDEC & POR)
• Max overclocking frequency:
  • 1DPC 1R Max speed up to 5333 MHz
  • 1DPC 2R Max speed up to 4700+ MHz
  • 2DPC 1R Max speed up to 4400+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^®&Extreme Memory Profile (XMP)

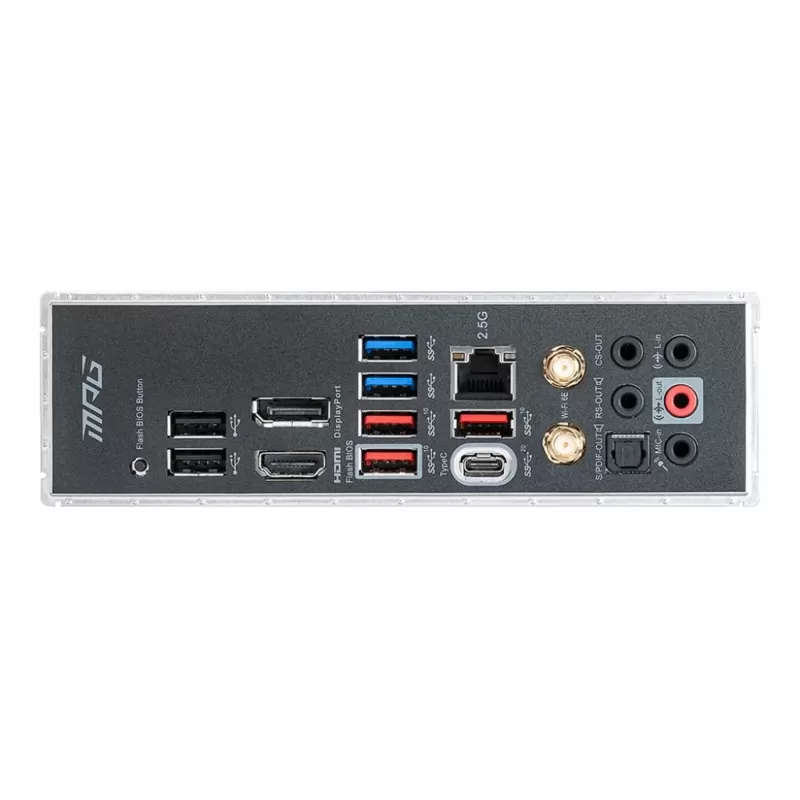

1. DisplayPort
2. USB 3.2 Gen 1 5Gbps Type-A
3. 2.5G LAN
4. Wi-Fi/Bluetooth
5. Audio Connectors
6. Flash BIOS Button
7. USB 2.0
8. HDMI
9. USB 3.2 Gen 2 10Gbps Type-A
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. Optical S/PDIF Out

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 1x 6-pin PCIE power connector
• 6x SATA 6Gb/s connectors
• 3x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x TBT connector (supports RTD3)

Realtek^®&ALC4080 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

Intel^®&Wi-Fi 6E AX210

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz¹&(160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.2², FIPS, FISMA
