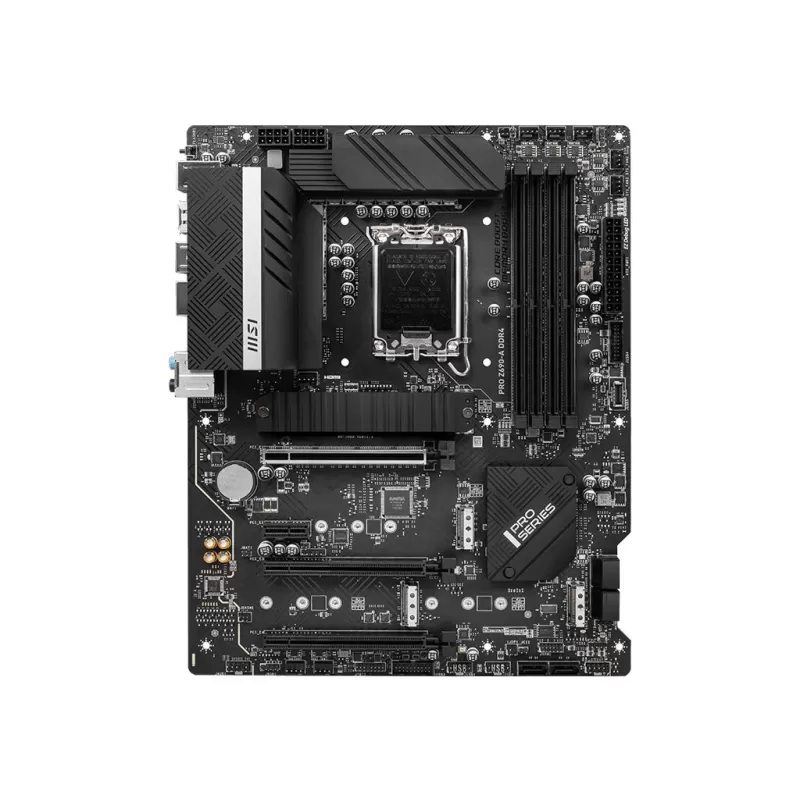

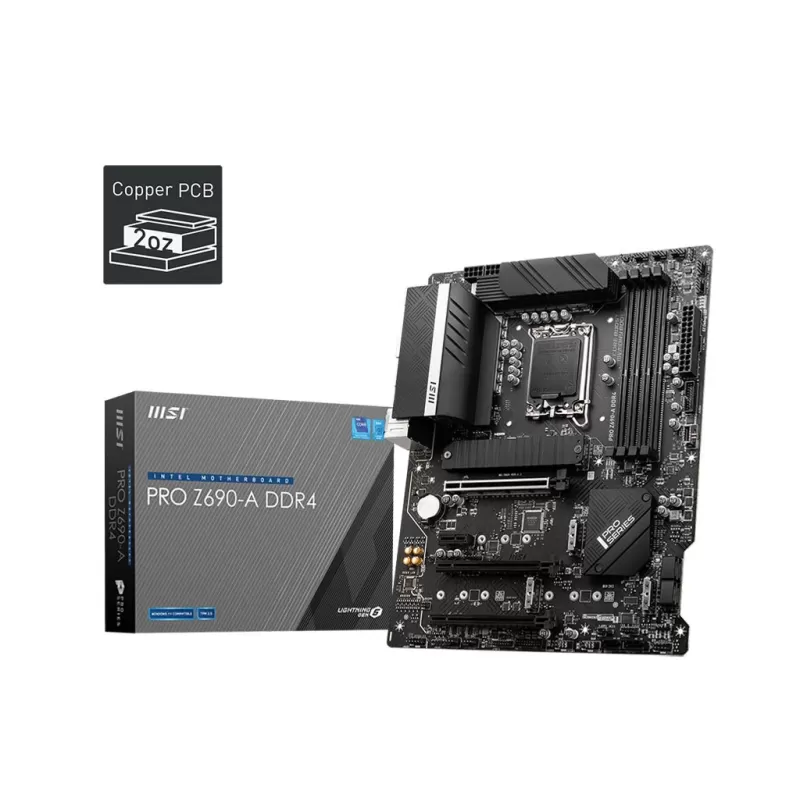

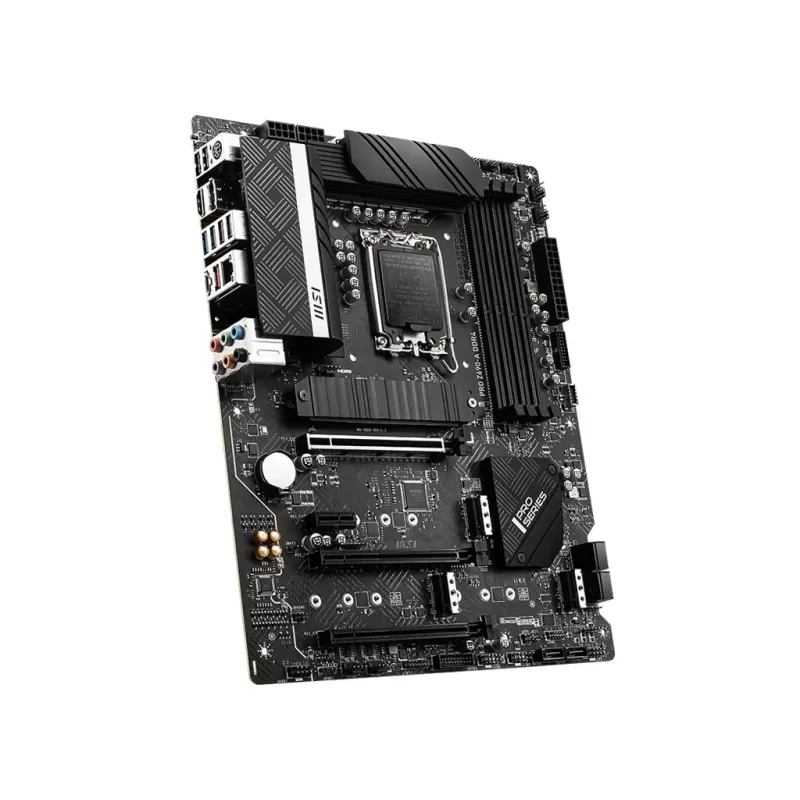

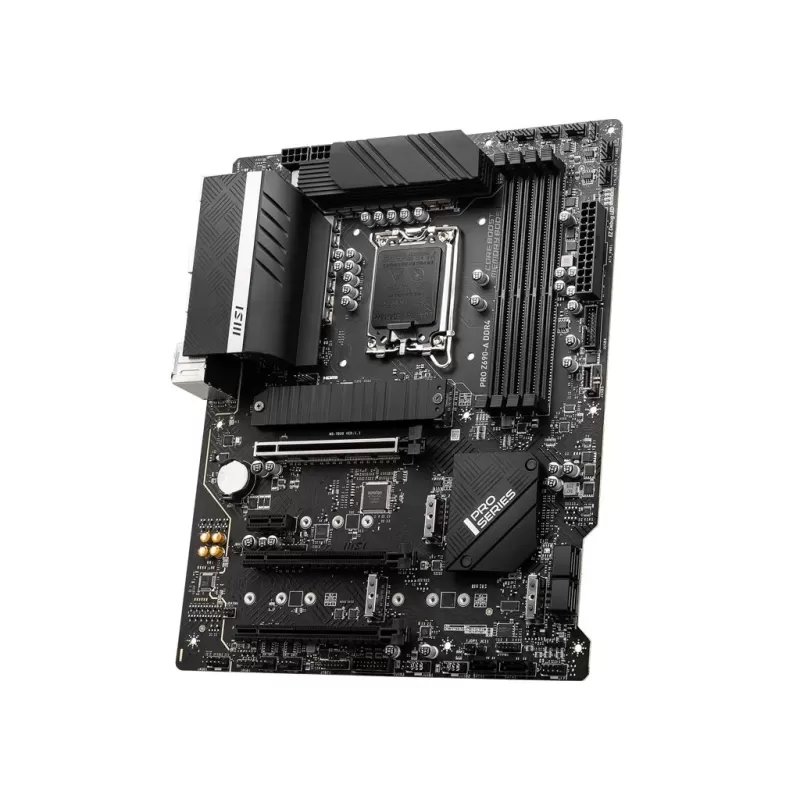

לוח אם MSI PRO Z690-A DDR4 LGA1700

073-2241747

גיא אוני 6, אשדוד

• 6x SATA 6Gb/s ports (from Z690 chipset)
• 4x M.2 slots (Key M)
  • M2_1 slot (from CPU)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (from Z690 chipset)
    • Supports PCIe 3.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (from Z690 chipset)
    • Supports PCIe 4.0 x4
    • Supports SATA 6Gb/s
    • Supports 2242/ 2260/ 2280 storage devices
  • Intel^®&Optane™ Memory Ready for M.2 slots that are from Z690 Chipset
• Support Intel^®&Smart Response Technology for Intel Core™ processors

• 4x DDR4 memory slots, support up to 128GB&¹
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 5333+ MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^®&Extreme Memory Profile (XMP)

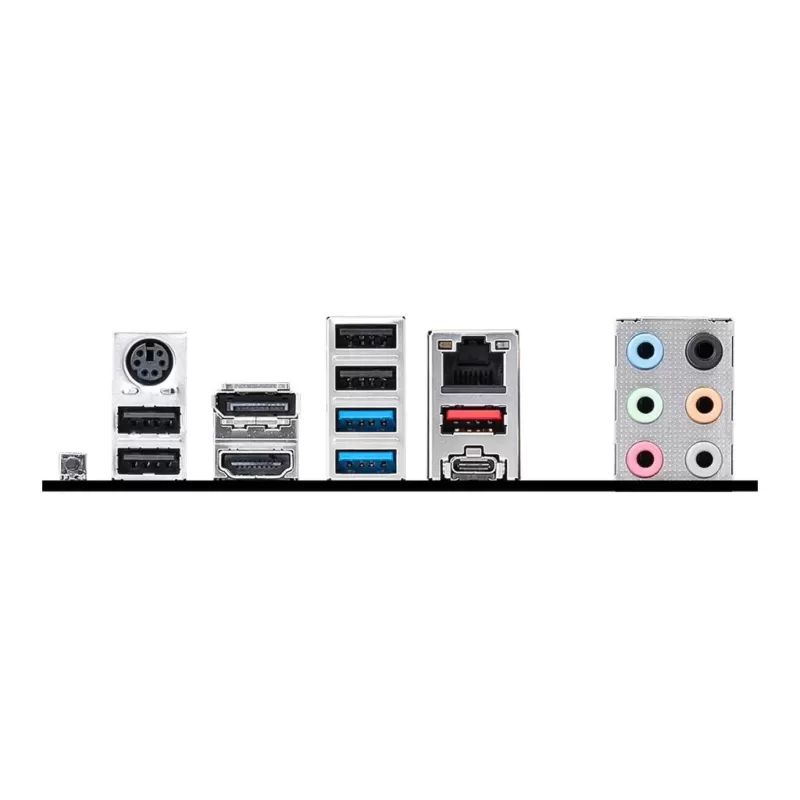

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. LAN port
5. Audio connector
6. Flash BIOS Button
7. USB 2.0
8. HDMI
9. USB 3.2 Gen 1 5Gbps Type-A
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. USB 3.2 Gen 2 10Gbps Type-A

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)

Realtek^®&ALC897 Codec

• 7.1-Channel High Definition Audio
