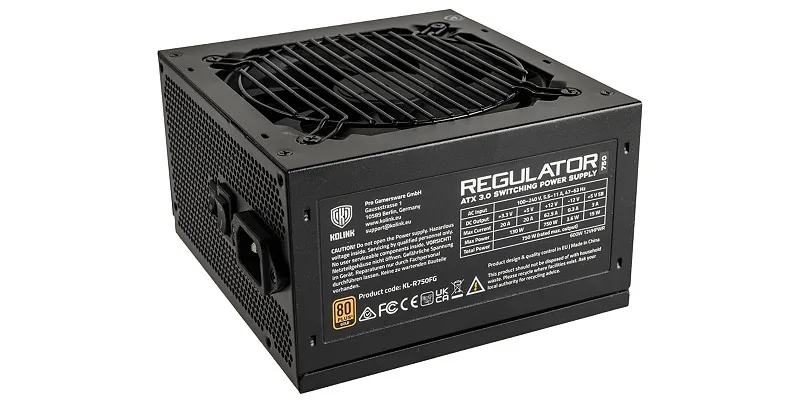

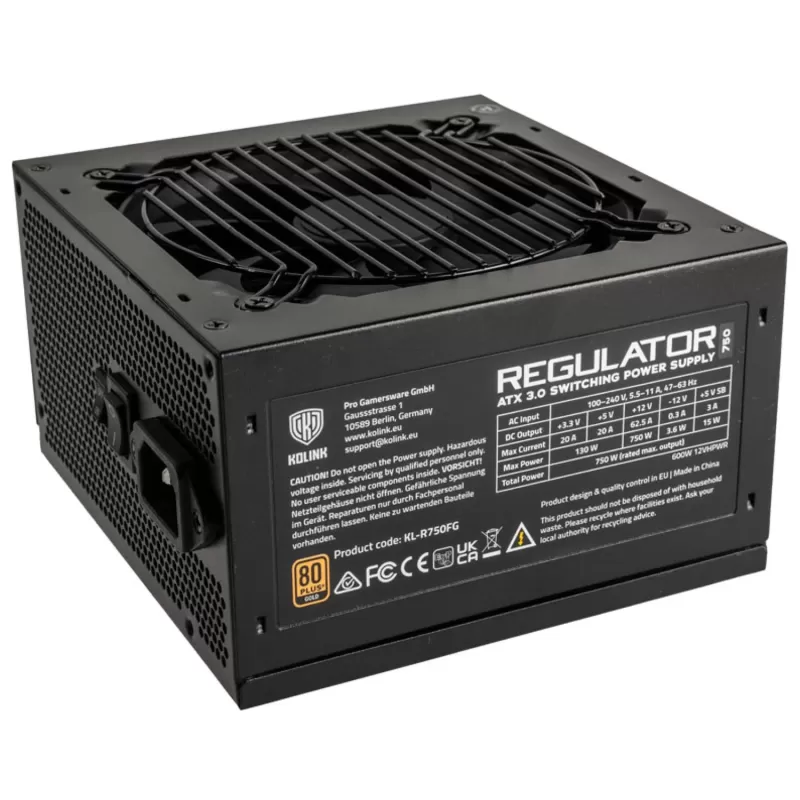

Power Supply Kolink Regulator 750W (ATX 3.0) 80 PLUS Gold KL-R750FG 80+ Gold

Kolink REGULATOR 80 PLUS GOLD SERIES

The REGULATOR series from Kolink brings a comprehensive set of modern features to enhance any system.

With high-quality premium components and an efficient design certified by 80-Plus-Gold,

the REGULATOR series power supply ensures reliable power delivery, while the Fluid Dynamic Bearing fan provides ultra-quiet cooling.

Thanks to its compact design, extensive protection features, and controllable semi-fanless mode, the fully modular REGULATOR series offers flexibility, reliability, and performance.

Kolink REGULATOR ATX3.0 Features

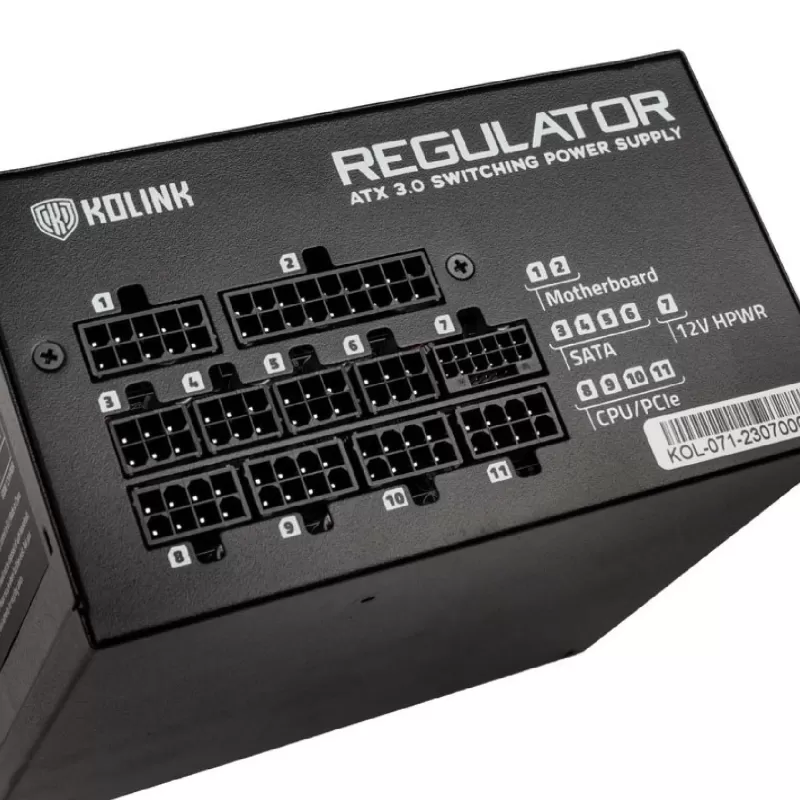

Compatible with ATX 3.0 / PCIe 5.0 featuring a 12VHPWR 600W connector.

Controllable semi-fanless mode

100% Japanese capacitors

Ultra-quiet 120mm FDB fan

Impressive compact design with a depth of 14cm

Extensive safety functions (OVP, UVP, OPP, SCP, OCP, OTP, SIP)

Detailed Description

Compatible with ATX 3.0 / PCIe 5.0 featuring a 12VHPWR 600W connector.

The REGULATOR series utilizes a single-rail LLC + DC/DC design with full compatibility for ATX 3.0 and PCIe 5.0,

supporting modern graphics cards with up to 600W through the 12VHPWR connector.

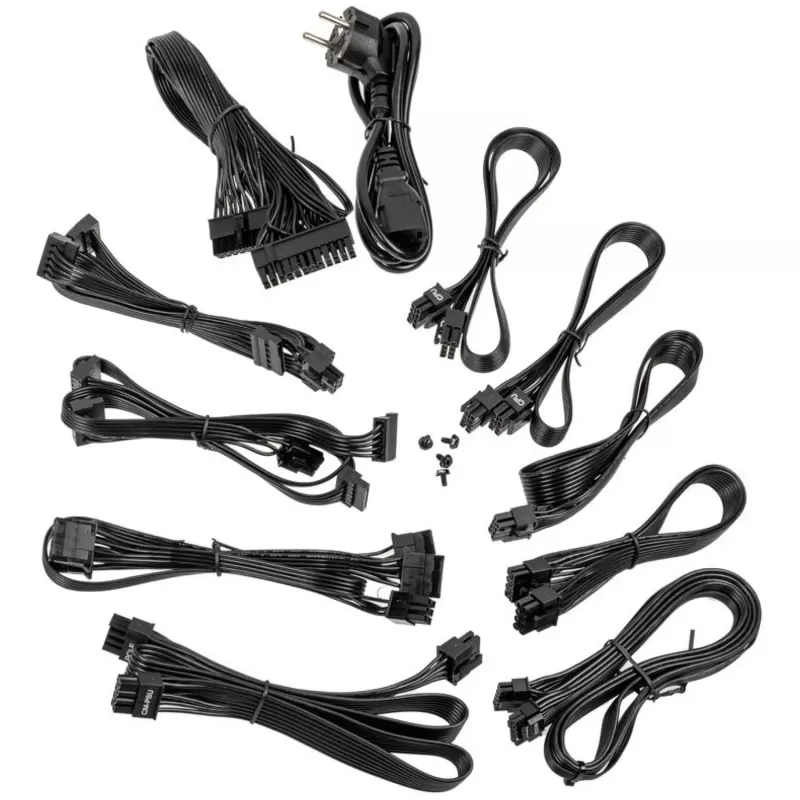

To eliminate the need for additional adapters, a 12VHPWR 600W cable with AWG16 is provided.

Controllable Semi-Fanless Mode

The REGULATOR series features a dedicated semi-fanless mode, easily activated via a switch near the power button.

This mode passively cools the power supply when operating up to 40%, ensuring quiet performance under low to medium loads.

At higher loads, the fan starts at a low speed and then adjusts itself according to the temperature, supporting cooling.

To protect the power supply from heat buildup, the fan automatically turns on when the temperature becomes too high.

When the semi-fanless mode is disabled, the fan continues to run at a low speed even under light load.

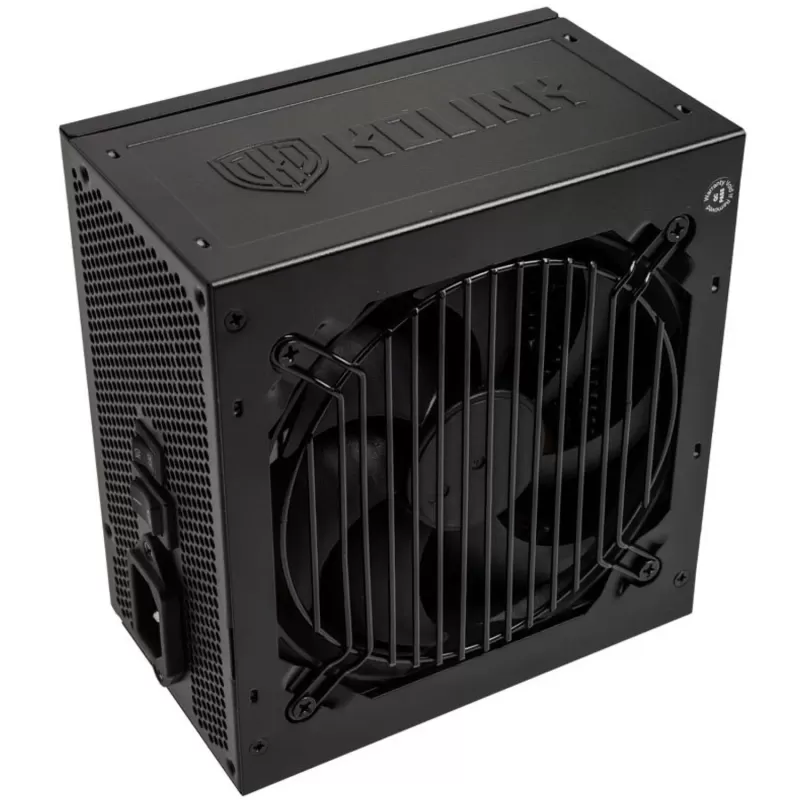

Ultra-Quiet FDB Fan

The 120mm fan is equipped with a Fluid Dynamic Bearing (FDB), enhancing longevity and durability.

The blades have an optimal curvature to draw air more efficiently and quietly.

The 8mm gap between the fan grill and the fan blades ensures low turbulence and better airflow performance while reducing noise.

Extensive Protection Functions

Extensive safety functions have been implemented to ensure the safety of the power supply and the components connected to it.

The REGULATOR series offers a 7-fold protection circuit with Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP),

Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP), and Surge/Inrush Protection (SIP).
