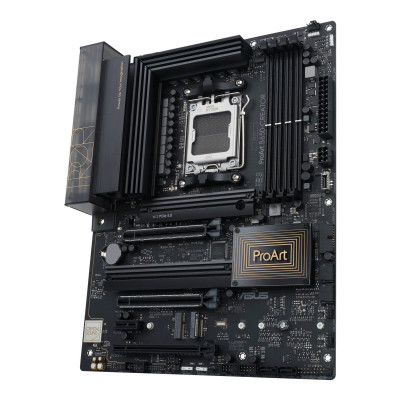

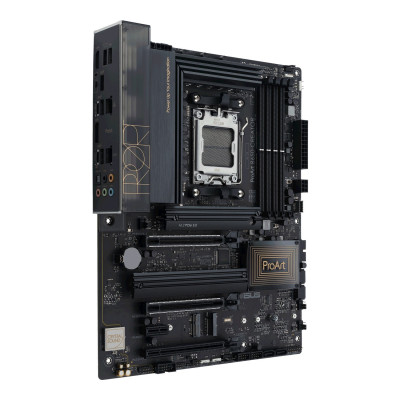

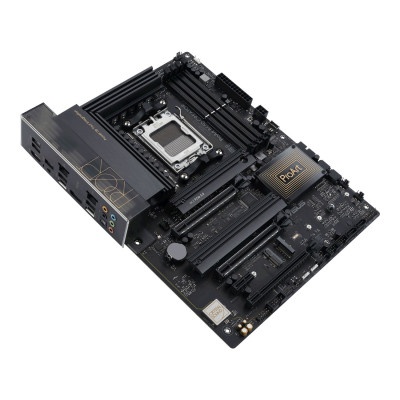

Motherboard Asus ProArt B650-CREATOR DDR5 ATX AM5

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

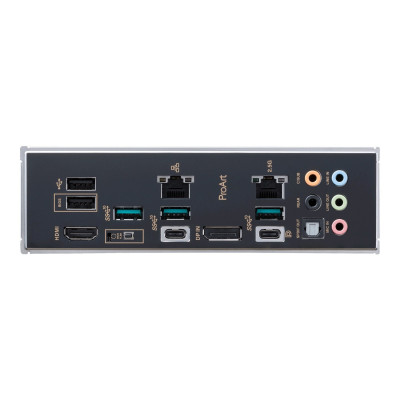

1 x USB 3.2 Gen 2 port (1 x USB Type-C^®, shared with DisplayPort graphic output )
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C^®)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI^®&port
1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
1 x 6-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C^®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x M.2 slot (Key E)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4^®) header

4 x DIMM, Max. 192GB, DDR5 76+(OC)/ 72(OC)/ 7(OC)/ 68(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(OC)/ 54(OC)/ 52/ 5/ 48 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
4 x DIMM, Max. 128GB, DDR5 76+(OC)/ 72(OC)/ 7(OC)/ 68(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(OC)/ 54(OC)/ 52/ 5/ 48 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**
4 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 runs at PCIe x4 mode, M.2_3 will be disabled.

1 x Realtek 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard

M.2 slot only (Key E, PCIe)*
*Wi-Fi module is sold separately.

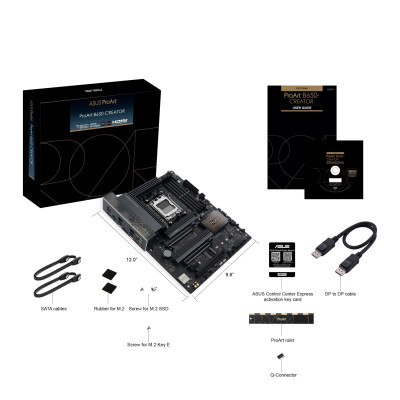

Cables
1 x DisplayPort cable
2 x SATA 6Gb/s cables
Miscellaneous
1 x Q-connector
1 x Rubber Packages for M.2
1 x Screw packages for M.2 SSD
1 x Screw package for M.2 Key E
1 x ProArt ruler
Documentation
1 x ACC Express Activation Key Card
1 x User guide
