Warranty | 3 years |
Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
Manufacturer Part Number | B650 AERO G |

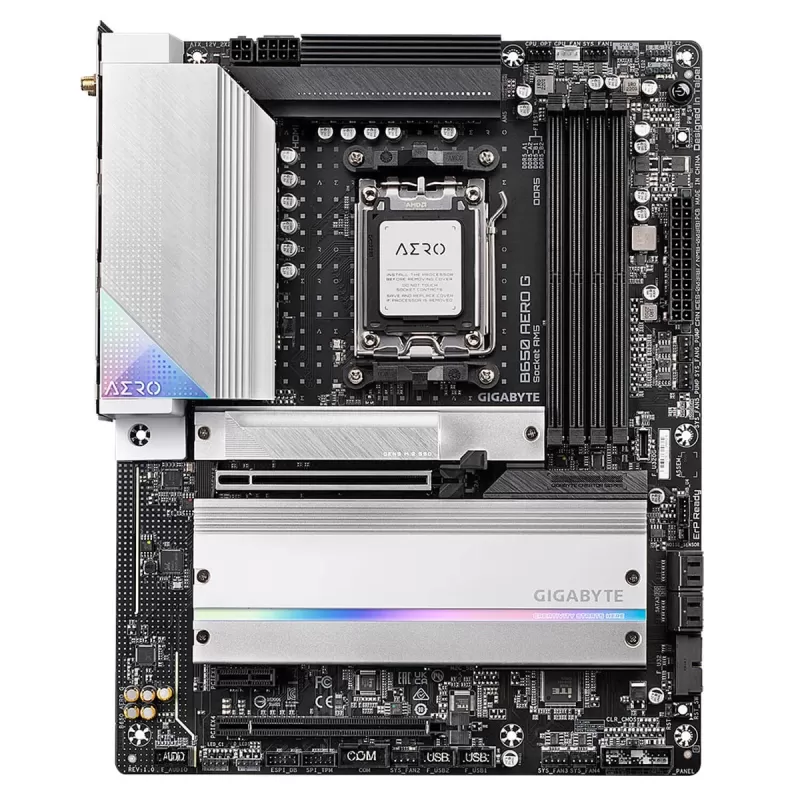

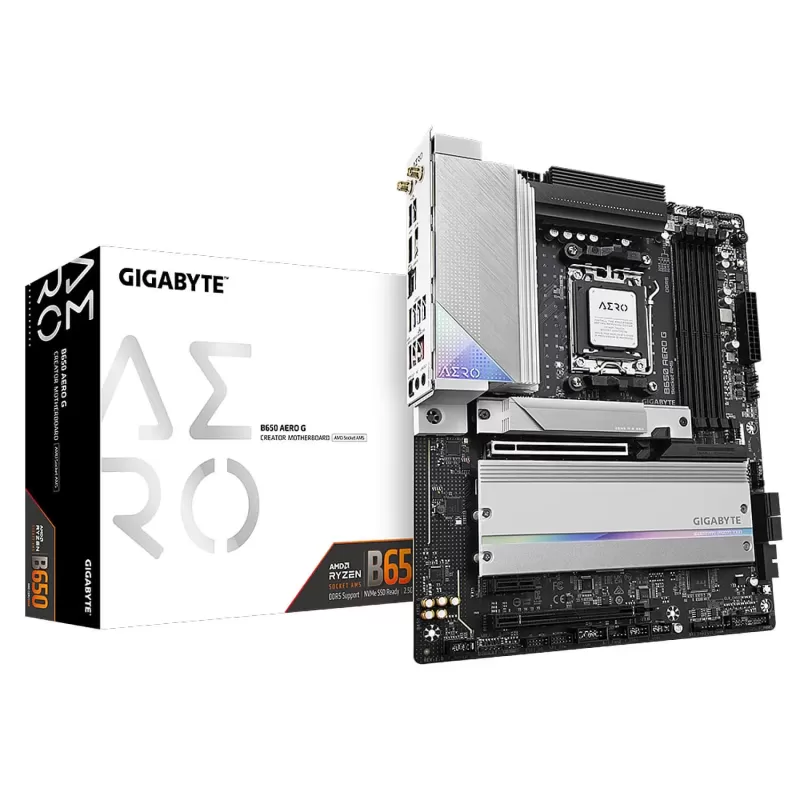

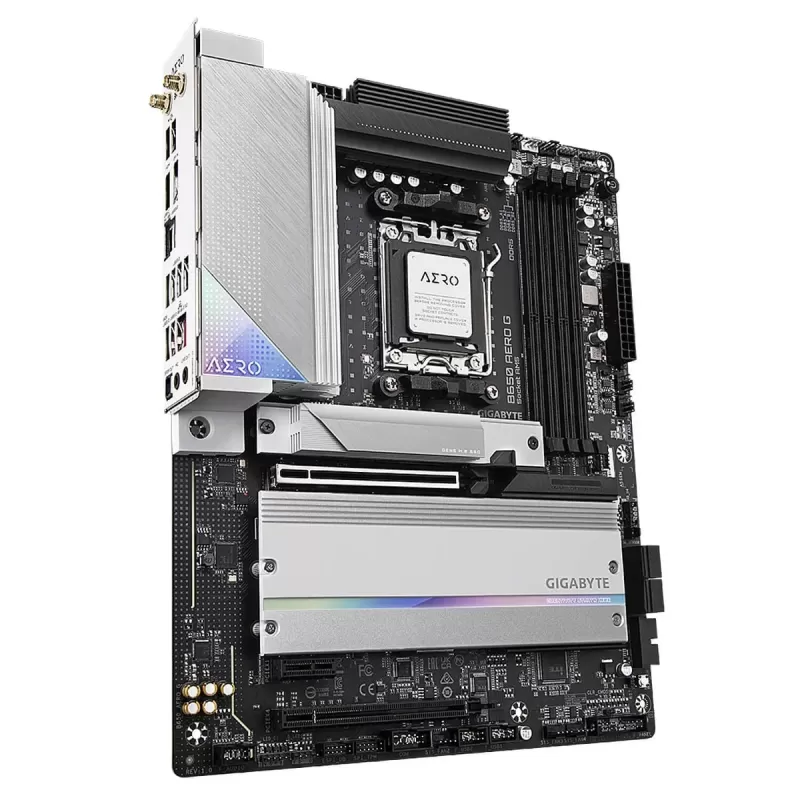

Model | B650 AERO G |
Condition | New |
Manufacturer | Gigabyte |
Audio | - Realtek® ALC1220-VB CODEC
* The back panel line out jack supports DSD audio. - High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. - Support for S/PDIF Out
|

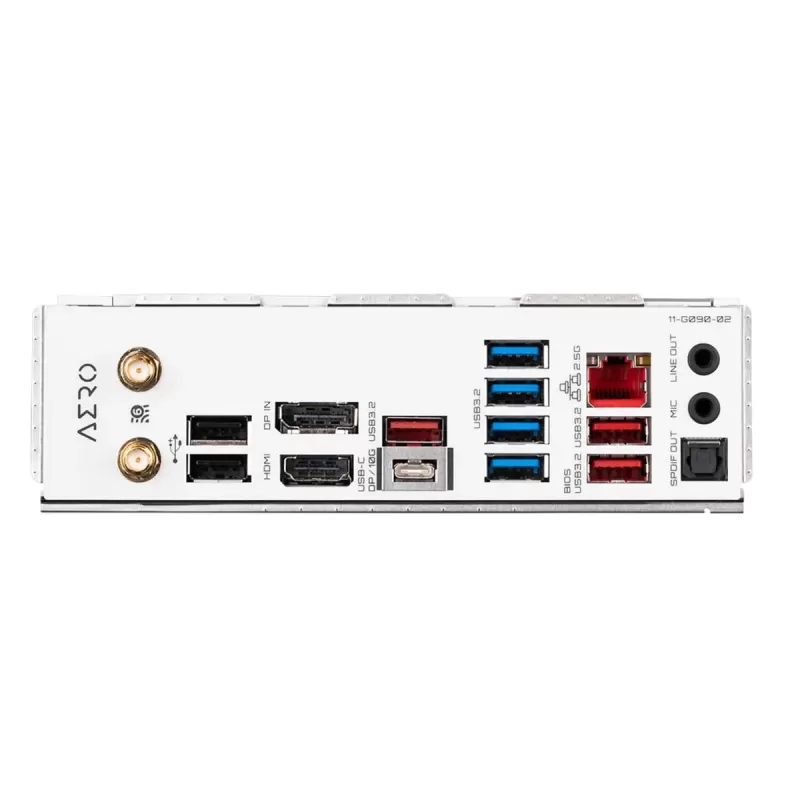

Back Panel Connectors | - 2 x SMA antenna connectors (2T2R)
- 2 x USB 2.0/1.1 ports
- 1 x DisplayPort In port
- 1 x HDMI port
- 3 x USB 3.2 Gen 2 Type-A ports (red)
- 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
- 4 x USB 3.2 Gen 1 ports
- 1 x RJ-45 port
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
|
Chipset | B650 |
Compatibility for computer assembly | AMD Motherboards |
Configuration | ATX |
Internal Ports / Inputs | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 3 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 1 x THB_U4 add-in card connector
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x Q-Flash Plus button
- 1 x reset button
- 1 x reset jumper
- 2 x temperature sensor headers
- 1 x Clear CMOS jumper
|
Memory | - Support for DDR5 8(OC)/ 78(OC)/ 76(OC)/ 72(OC)/ 7(OC)/ 68(OC)/ 6666(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 56(OC)/ 52/ 48/ 44 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
Socket | AM5 |
Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
* Actual support may vary by CPU. - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Wired Communication | 1. Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
Wireless network | AMD Wi-Fi 6E RZ616 (MT7922A22M) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.) |
סוג הזיכרון | DDR5 |
Link To The Manufacturer'S Website | Get full product information - Go to product page |
Product Link | Motherboard Gigabyte B650 AERO G DDR5 ATX AM5 |
