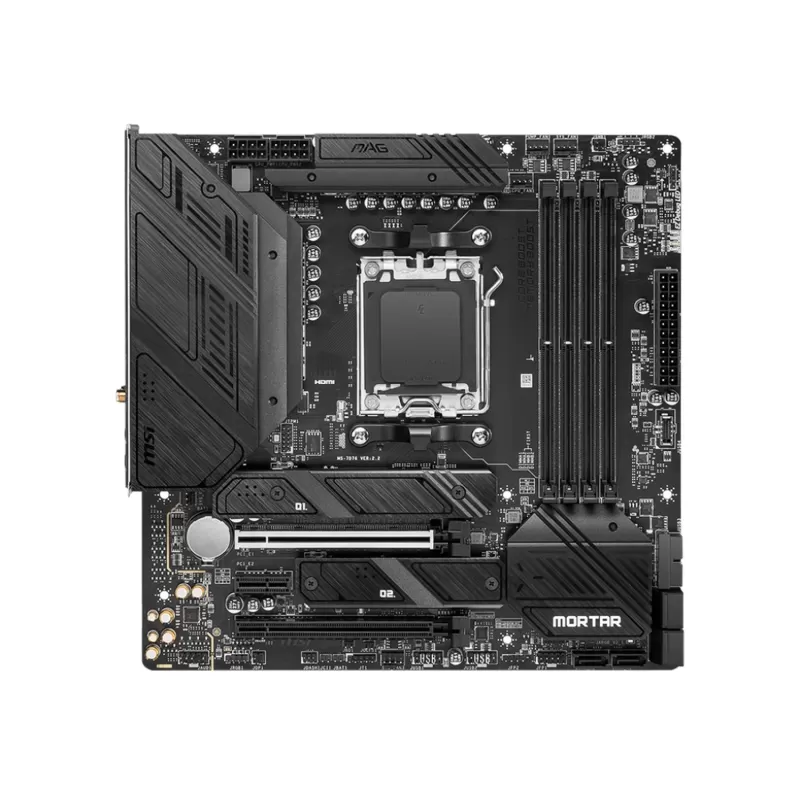

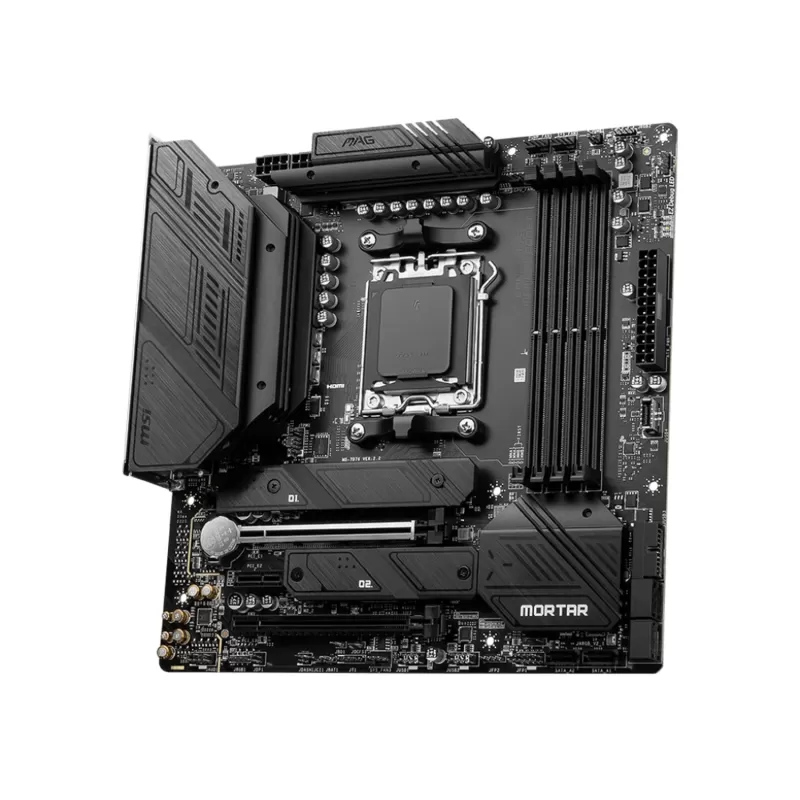

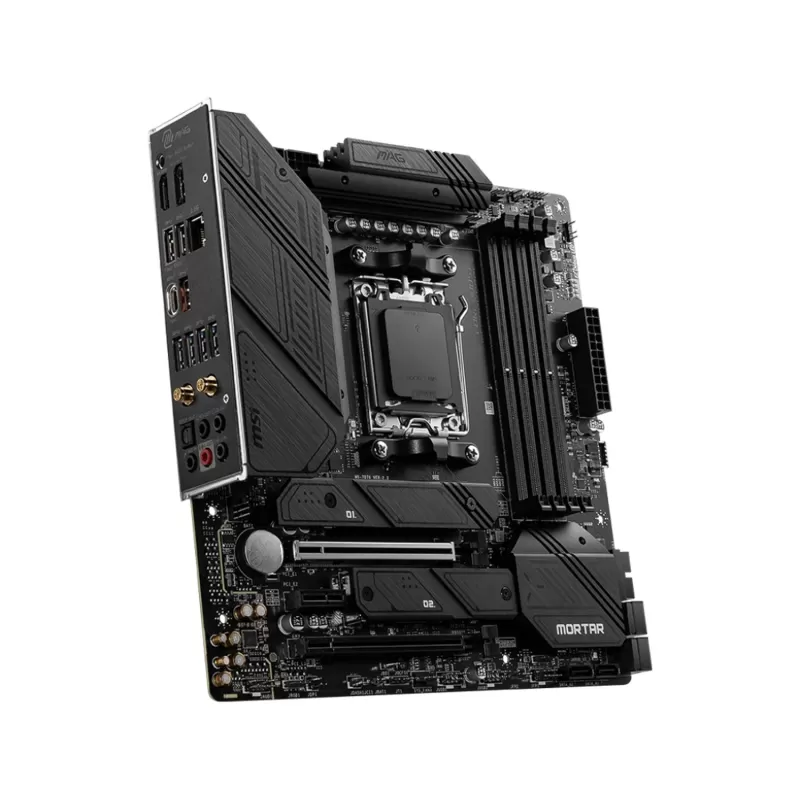

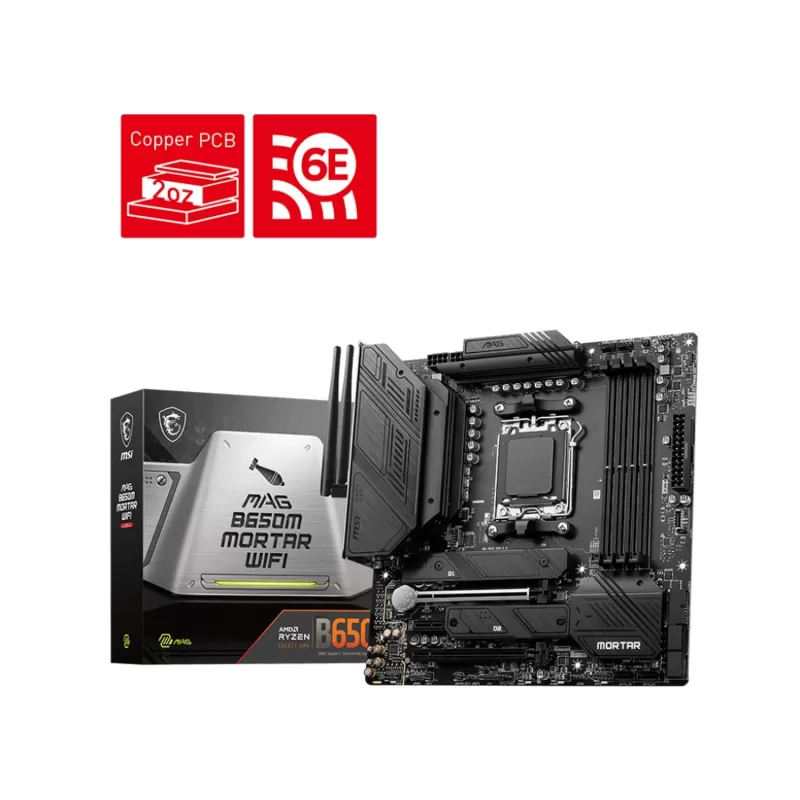

Motherboard MSI MAG B650M MORTAR WIFI DDR5 mATX AM5

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Realtek^®&ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel

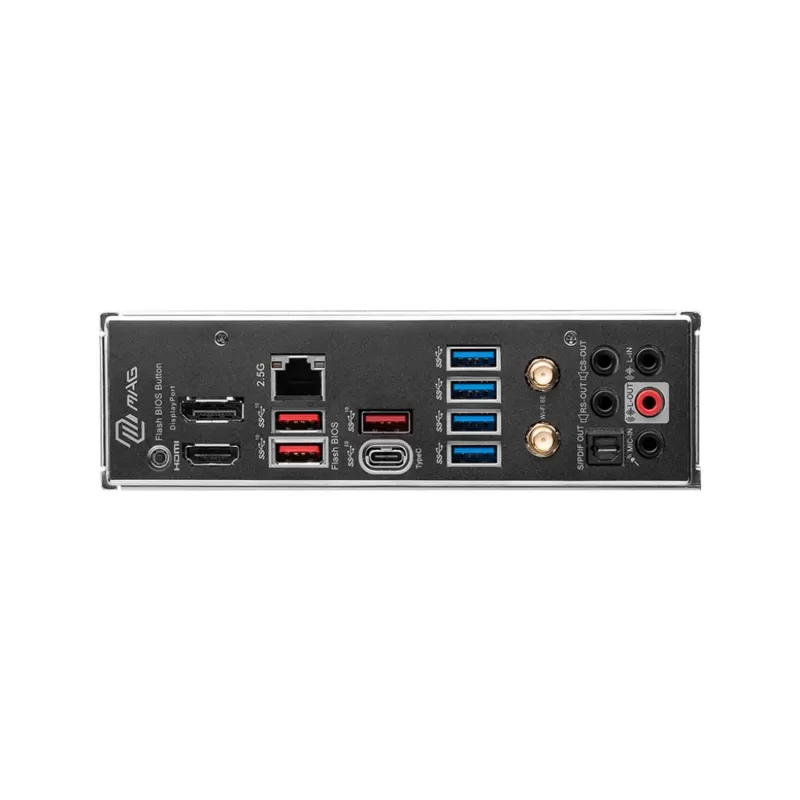

1. DisplayPort 1.4
2. 2.5G LAN Port
3. USB 3.2 Gen 2 10Gbps Type-A
4. USB 3.2 Gen 1 5Gbps Type-A
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. Flash BIOS Button
8. HDMI™ 2.1 Port
9. USB 3.2 Gen 2x2 20Gbps Type-C
10. Optical S/PDIF OUT

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 76+(OC)/ 74(OC)/ 72(OC)/ 7(OC)/ 68(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(OC)/ 54(OC)/ 52(OC)/ 5(OC)/ 48(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 76+ MHz
• 1DPC 2R Max speed up to 64+ MHz
• 2DPC 1R Max speed up to 64+ MHz
• 2DPC 2R Max speed up to 54+ MHz

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G

AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^®&5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Get full product information - Go to product page
