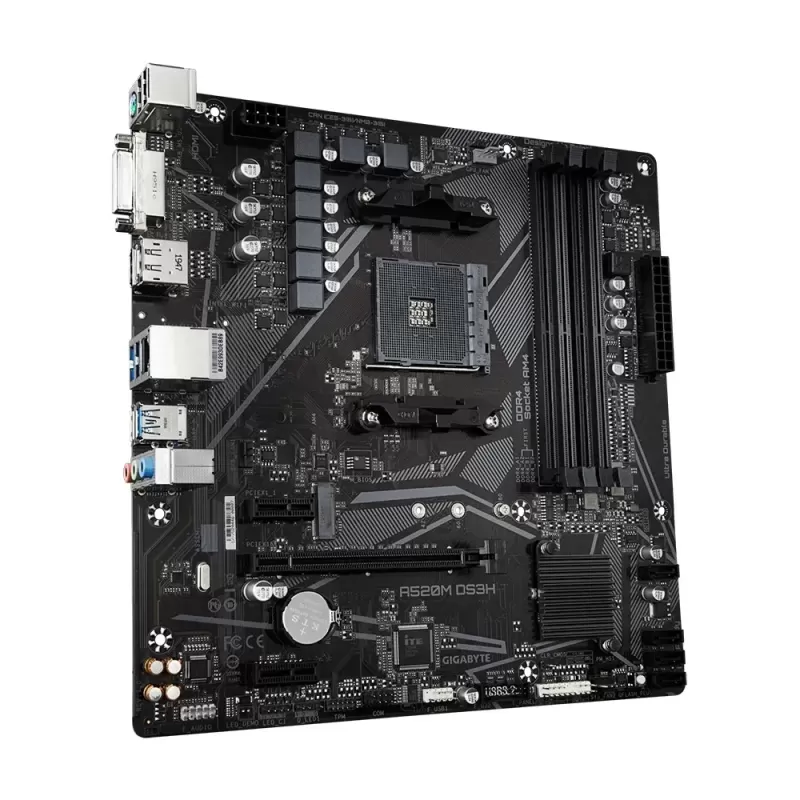

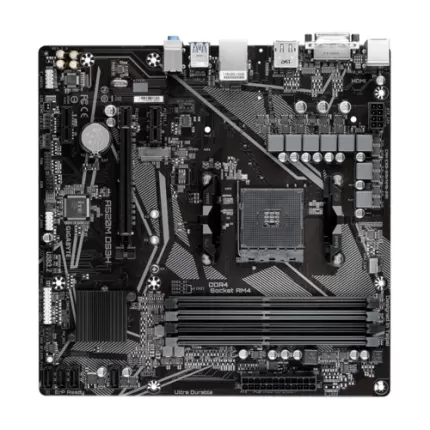

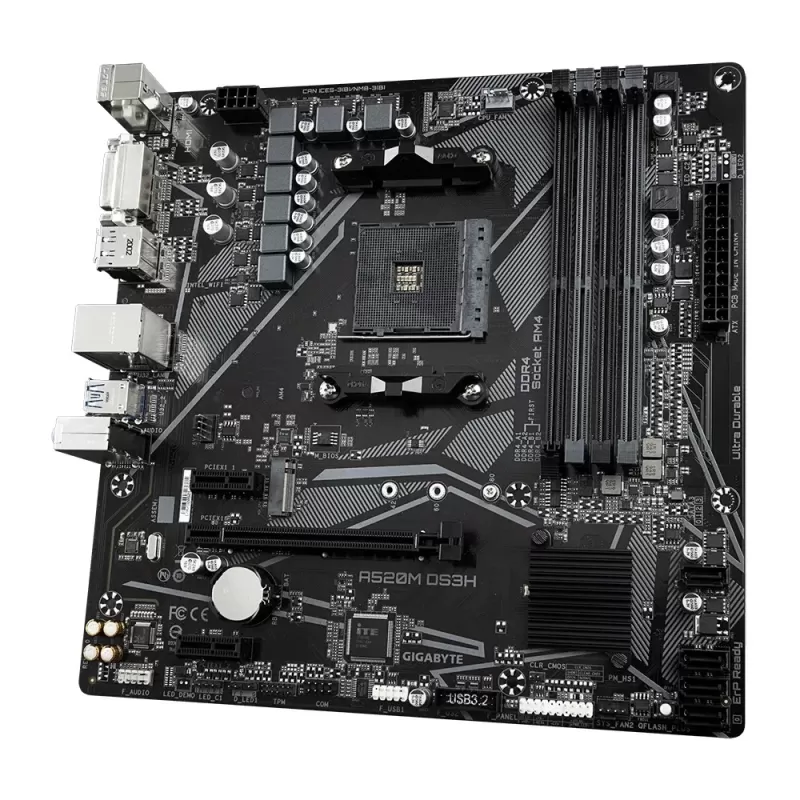

Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4

Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
In the importer's stock
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4

* The picture is for illustration only

A short description

Manufacturer: Gigabyte, Memory Frequency: 4733MHz, Socket: AM4, Chipset: A520, Memory Type: DDR4
Motherboard Gigabyte A520M DS3H DDR4 Micro ATX AM4

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

    Payment options:

    • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
    • Bank transfer (Deferred payment not accepted)Bit, PayBox
    • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
    • PayPal - Only Shipments With a Tracking Number
    • Stock: In the importer's stock (delivery to the branch up to 3 working days)
    • Print:
    • SKU: 37699
    • MPN: A520M DS3H
    ₪263
    Review
    Warranty3 years
    Service During The Warranty Period (Who To Contact)COMPMASTER Lab

    073-2241747

    Gei Oni 6, Tet Shoping Center, Ashdod

    Manufacturer Part NumberA520M DS3H
    ModelA520M DS3H
    ConditionNew
    ManufacturerGigabyte
    Audio
  • Realtek ALC887 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

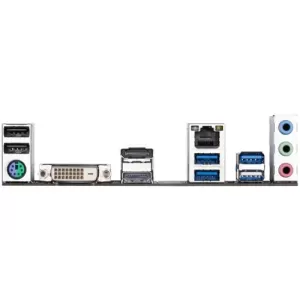

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x DVI-D port
    3. 1 x DisplayPort
    4. 1 x HDMI port
    5. 4 x USB 3.2 Gen 1 ports
    6. 2 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks
    ChipsetA520
    Compatibility for computer assemblyAMD Motherboards
    ConfigurationMicro ATX
    InterfaceDDR4: 4, SATA3: 4
    Internal Ports / Inputs
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 1 x M.2 Socket 3 connector
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5 G-series / Ryzen™ 5 Series/ 3rd Generation AMD Ryzen™ processors:
      Support for DDR4 44(O.C.) / 4(O.C.) / 3866(O.C.) / 38(O.C.) / 3733(O.C.) / 36(O.C.) / 3466(O.C.) / 34(O.C.) / 3333(O.C.) / 33(O.C.) / 32 / 2933 / 2667 / 24 / 2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 4733(O.C.) / 46(O.C.) / 44(O.C.) / 4(O.C.) / 36(O.C.) / 3333(O.C.) / 32 / 2933 / 2667 / 24 / 2133 MHz memory modules
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered&DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    Memory Frequency4733MHz
    SocketAM4
    Storage

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

    Chipset:

    1. 4 x SATA 6Gb/s connectors
    2. Support for RAID 0, RAID 1, and RAID 10
    Wired Communication1. Realtek GbE LAN chip (1000 Mbit/100 Mbit)
    סוג הזיכרוןDDR4
