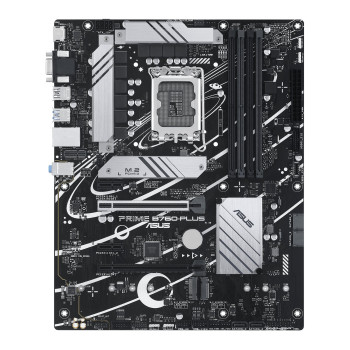

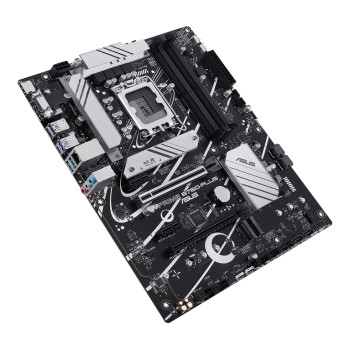

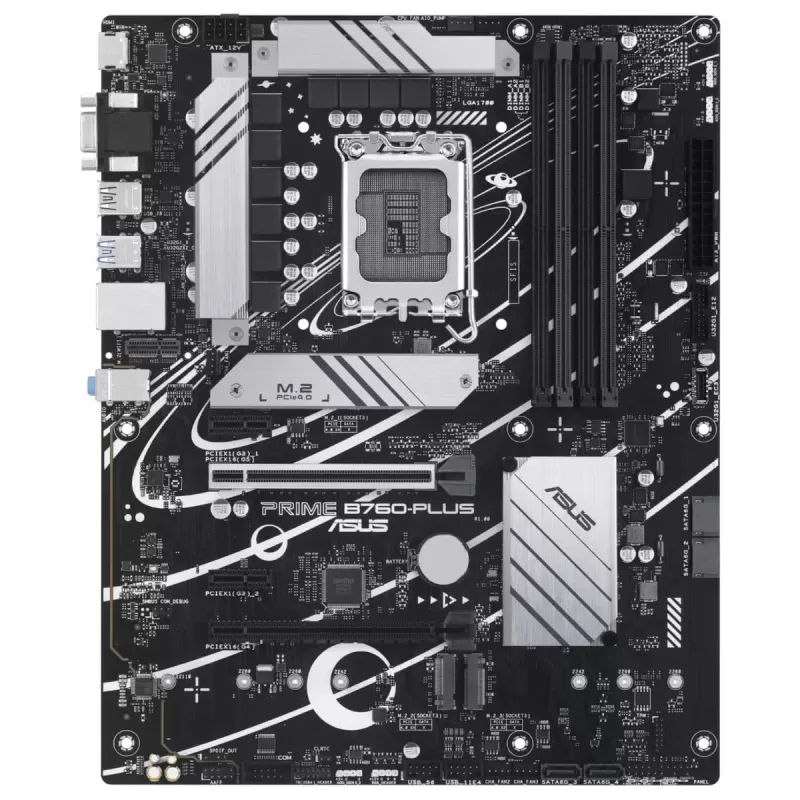

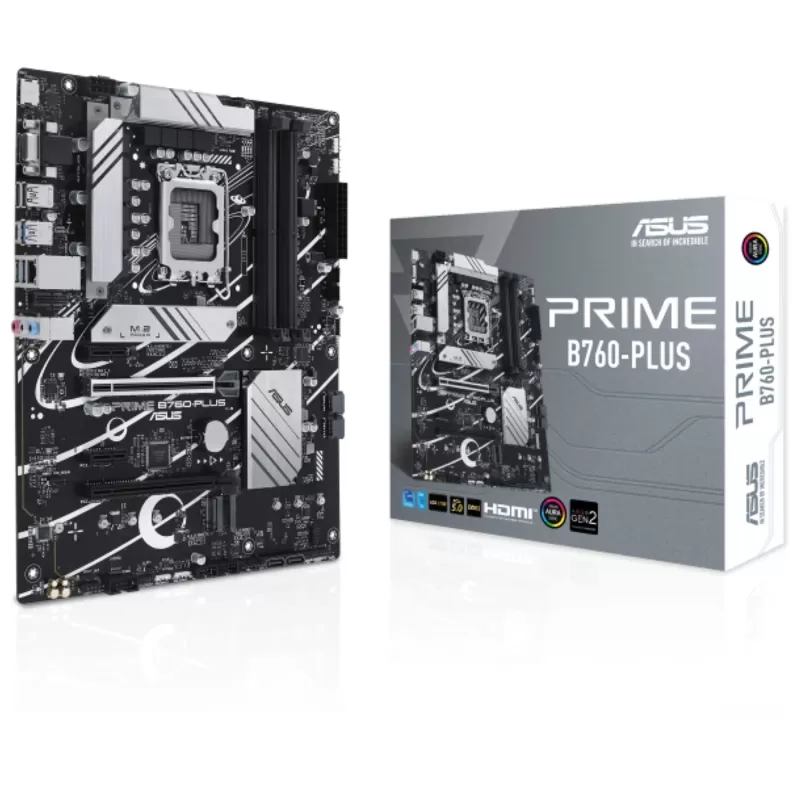

| Revew | ASUS Prime B760-PLUSThe ASUS Prime series is meticulously engineered to get the most out of 14th Gen Intel Core processors, with full compatibility for 13th and 12th Gen as well. The board is designed with stable power delivery, extensive cooling solutions, and smart tuning options so you can achieve optimal performance with ease. PRIME B760-PLUS provides intuitive tools and advanced firmware features for one-click optimization, making it suitable for a reliable and flexible long-term build. The platform is ready for modern workloads and AI applications, with fast connectivity and ample bandwidth for any task.
Ready for AI: Designed for the AI era, with power, cooling, and connectivity that enable smooth operation even in demanding AI applications. Socket LGA1700: Compatible with 14th, 13th, and 12th Gen Intel processors for easy, flexible upgrades. Ultra-fast connectivity: Primary PCIe 5.0 slot, three M.2 PCIe 4.0 connectors, Realtek 2.5GbE networking, USB 3.2 Gen 2x2 Type‑C on the rear I/O, front-panel USB 3.2 Gen 1 Type‑C header, and support for a Thunderbolt (USB4) header for add-in cards. Comprehensive cooling: Heatsinks for VRM, M.2, and PCH, hybrid fan headers, and Fan Xpert 2+ support for precise and quiet fan control. Dedicated memory technologies: ASUS Enhanced Memory Profile II and ASUS OptiMem II to improve compatibility, timings, and stability at high speeds. Aura Sync RGB: Built-in Addressable Gen 2 and Aura RGB headers for LED strips and easy lighting synchronization with compatible ASUS components.
|
| Review | |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | 90MB1EF0-M0EAY0, 90MB1EF0-M1EAY0, PRIME B760-PLUS |
| Model | PRIME B760-PLUS |
| Condition | New |
| Manufacturer | Asus |
| Additional Info | Support Wi-Fi module, is sold separately. |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |

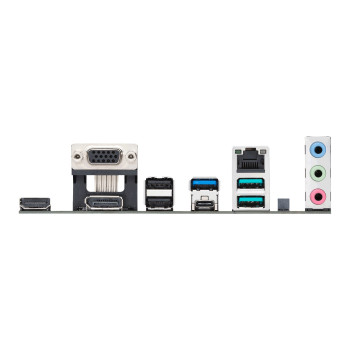

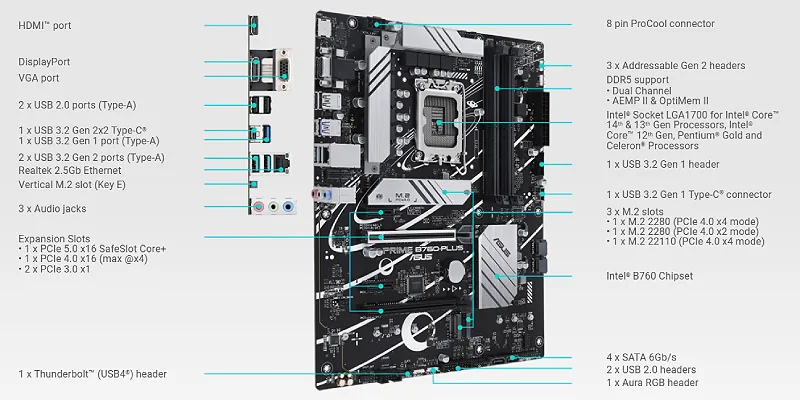

| Back Panel Connectors | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMI™ port 1 x Vertical M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks |
| Chipset | B760 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | ATX |
| Dimensions | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Internal Ports / Inputs | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®&) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* |
| Memory Type | DDR5 DIMM |
| Socket | LGA1700 |
| Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel®&13th&& 12th&Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel®&B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports * Intel®&Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Wired Communication | 1 x Realtek 2.5Gb Ethernet |
| Wireless network | Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |

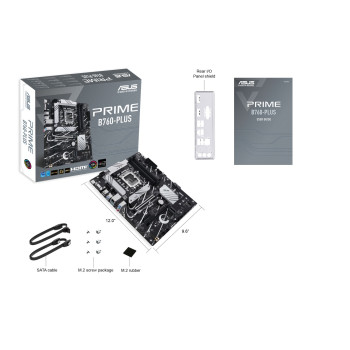

| What'S In The Box? | Cables |
