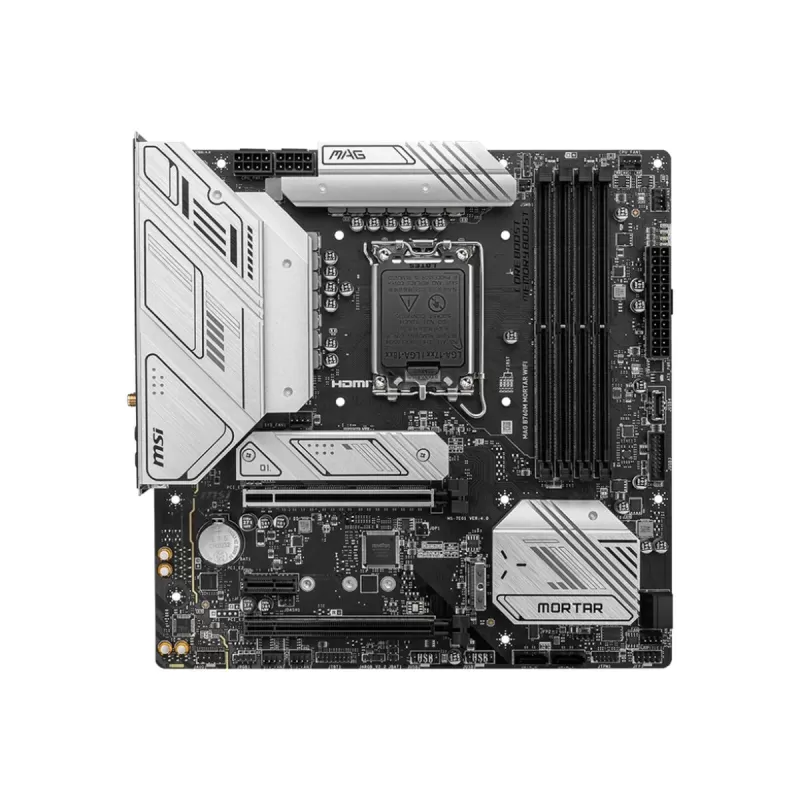

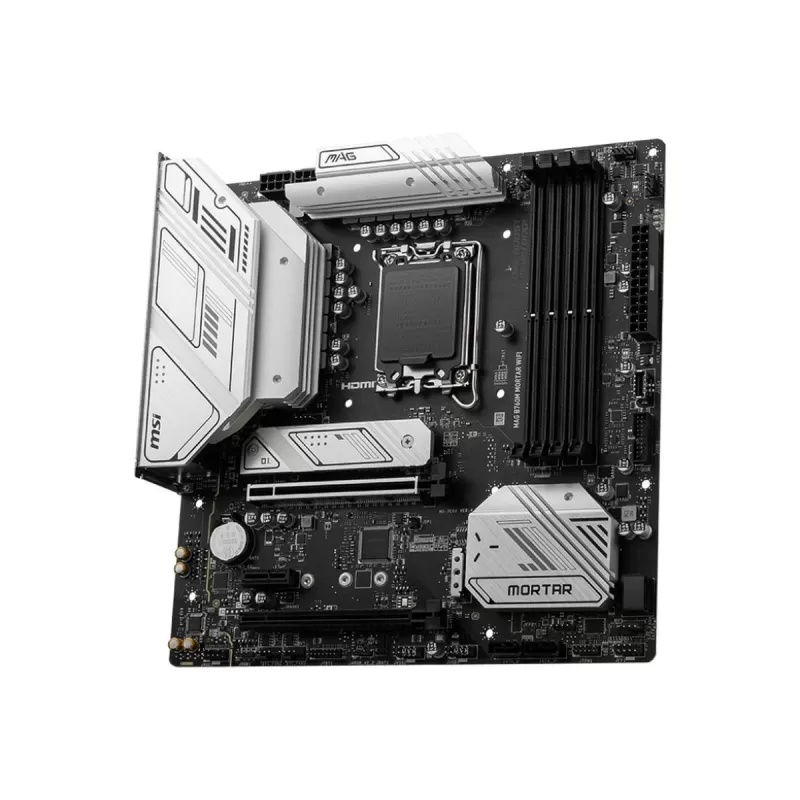

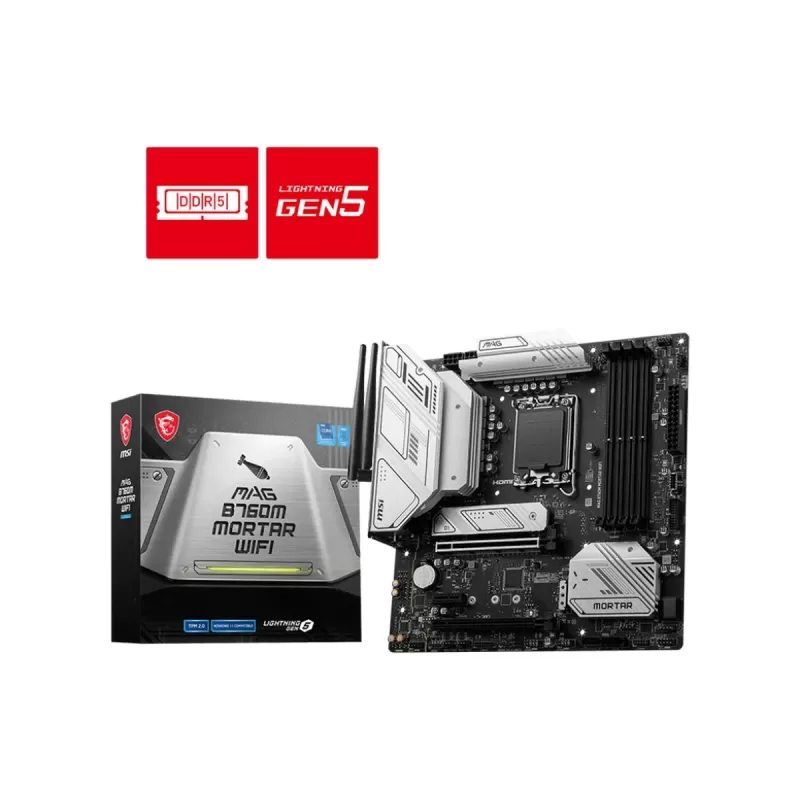

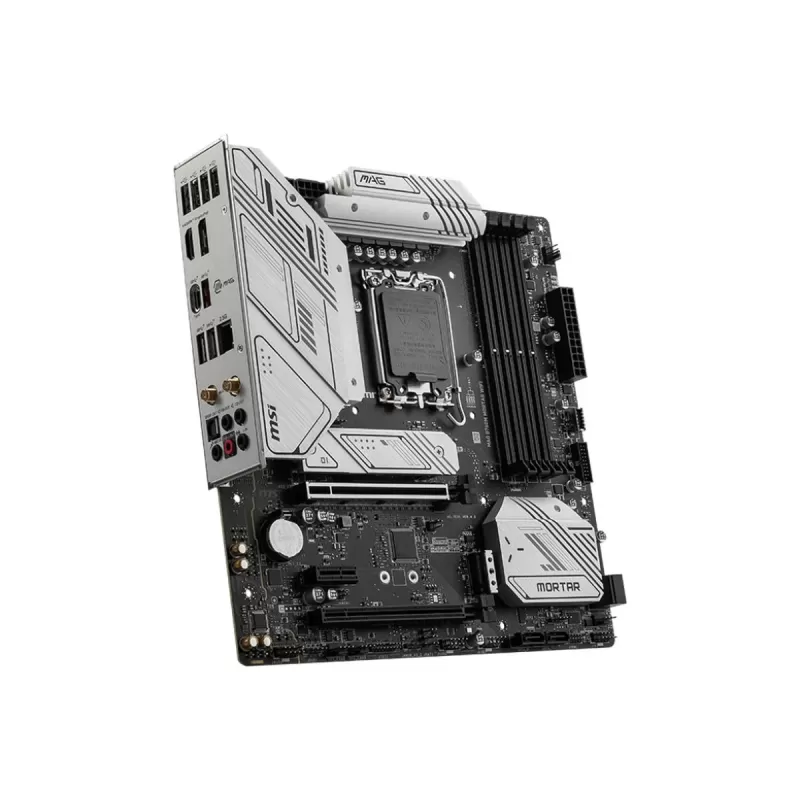

Motherboard MSI MAG B760M MORTAR WIFI DDR5 mATX LGA1700

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Realtek^®&ALC897 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output

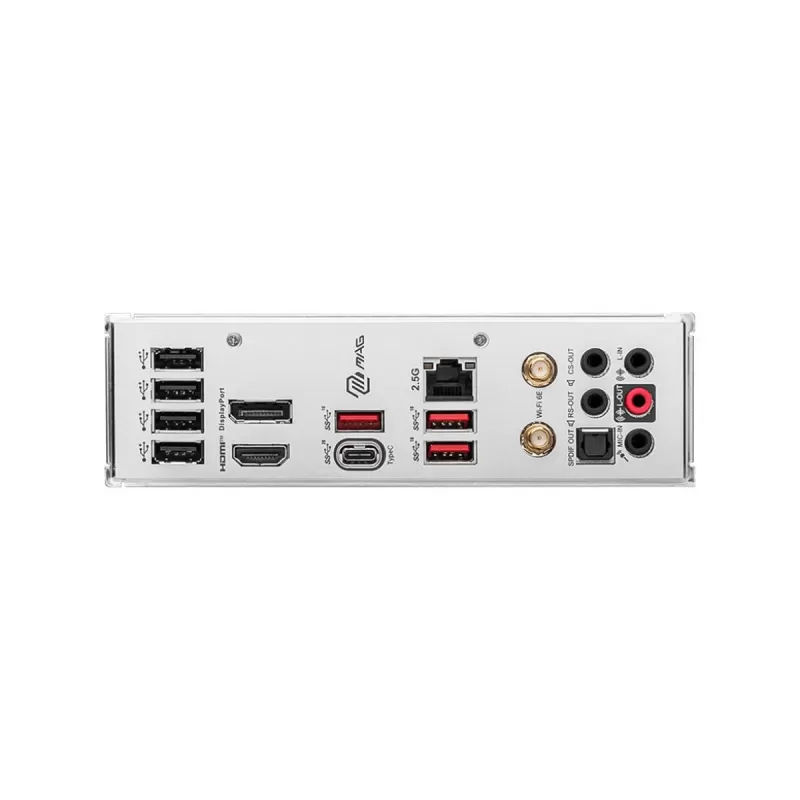

• USB 2.0
• DisplayPort 1.4
• USB 3.2 Gen 2 10Gbps Type-A
• 2.5G LAN Port
• Wi-Fi / Bluetooth Antenna
• HD Audio Connectors
• HDMI™ 2.1 Port
• USB 3.2 Gen 2x2 20Gbps Type-C
• Optical S/PDIF OUT

4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7+(OC)/ 68(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(JEDEC)/ 54(JEDEC)/ 52(JEDEC)/ 5(JEDEC)/ 48(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7+ MHz
• 1DPC 2R Max speed up to 66+ MHz
• 2DPC 1R Max speed up to 64+ MHz
• 2DPC 2R Max speed up to 56+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel^®&Extreme Memory Profile

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

Intel^®&Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^®&5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Get full product information - Go to product page
