| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |

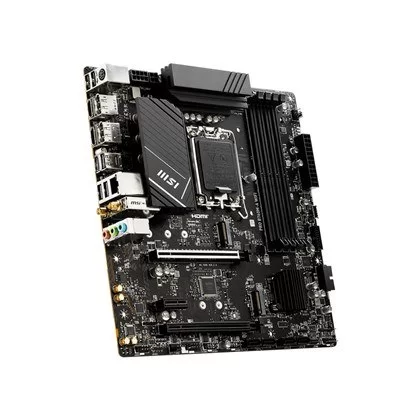

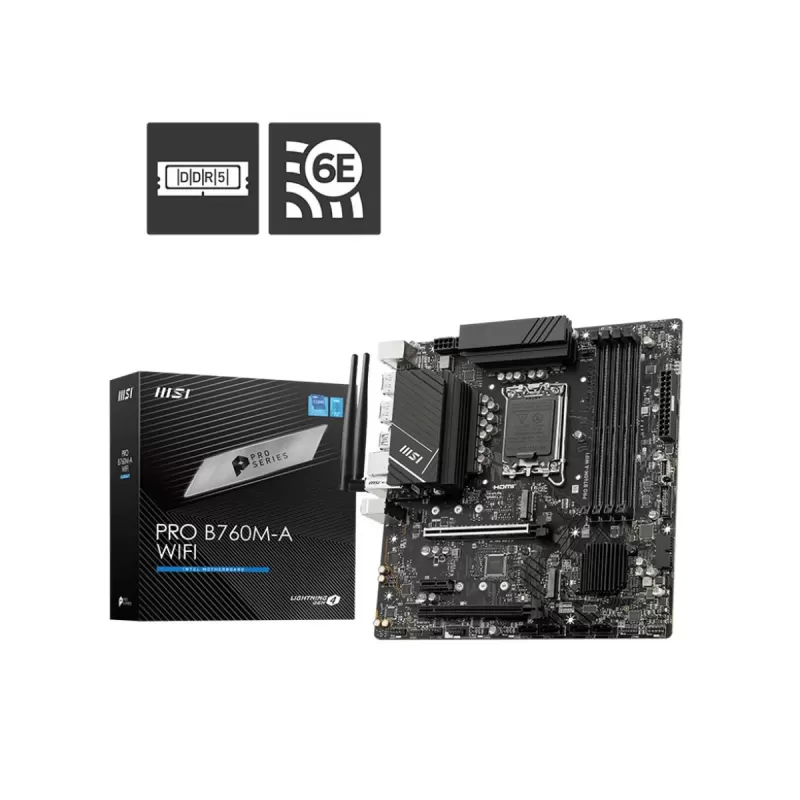

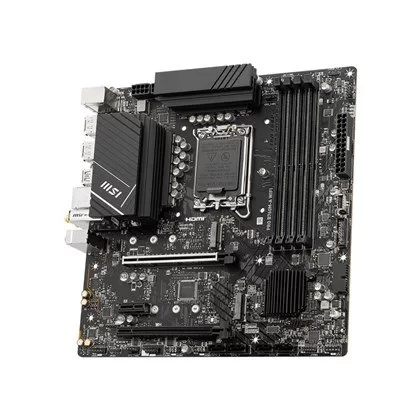

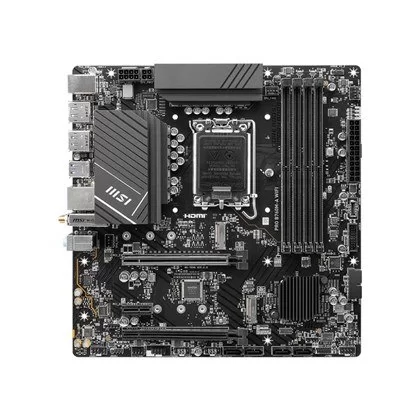

| Manufacturer Part Number | PRO B760M-A WIFI |
| Model | PRO B760M-A WIFI |
| Color | Does not apply |
| Condition | New |
| Manufacturer | Msi |
| Audio | Realtek®&ALC897 Codec
7.1-Channel High Definition Audio |

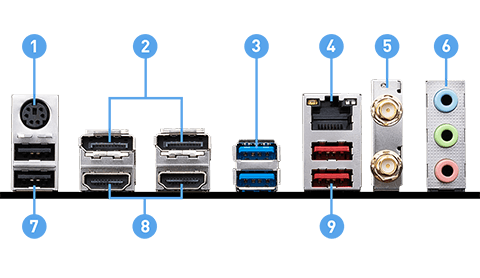

| Back Panel Connectors |
- Keyboard / Mouse
- DisplayPort
- USB 3.2 Gen 1 5Gbps (Type-A)
- 2.5G LAN
- Wi-Fi / Bluetooth
- Audio Connectors
- USB 2.0
- HDMI™
- USB 3.2 Gen 2 10Gbps (Type-A)
|
| Chipset | B760 |
| Compatibility for computer assembly | Intel Motherboards |
| Configuration | mATX |
| Dimensions | 243.84mmx243.84mm |
| Internal Ports / Inputs | 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 68+(OC)/ 66(OC)/ 64(OC)/ 62(OC)/ 6(OC)/ 58(OC)/ 56(JEDEC)/ 54(JEDEC)/ 52(JEDEC)/ 5(JEDEC)/ 48(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 68+ MHz
• 1DPC 2R Max speed up to 64+ MHz
• 2DPC 1R Max speed up to 6+ MHz
• 2DPC 2R Max speed up to 56+ MHz
Supports Intel®&XMP 3. OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory |
| Socket | LGA1700 |
| Storage | 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| Wired Communication | Realtek RTL8125BG 2.5G LAN |
| Wireless network | Intel®&Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth®&5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| סוג הזיכרון | DDR5 |
| What'S In The Box? |
|
| Link To The Manufacturer'S Website | Get full product information - Go to product page |
| Product Link | Motherboard MSI PRO B760M-A WIFI DDR5 mATX LGA1700 |
| Matching SKUs | ID: 52375, OC: 26019-05, AMT: 4711377059572, GRNDADVC: 85057, MPN: PRO B760M-A WIFI |
