Motherboard Asus DDR4 ATX LGA1700

Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
In the importer's stock
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700
Motherboard Asus DDR4 ATX LGA1700

* The picture is for illustration only

A short description

Manufacturer: Asus, Socket: LGA1700, Chipset: Z690, Memory Type: DDR4
Motherboard Asus DDR4 ATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • CHITAH collection points - 20₪ - over 200₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

Payment options:

  • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
  • Bank transfer (Deferred payment not accepted)Bit, PayBox
  • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
  • PayPal - Only Shipments With a Tracking Number
  • Stock: In the importer's stock (delivery to the branch up to 3 working days)
  • Print:
  • SKU: 50250
  • MPN: ROG STRIX Z790-A GAMING WIFI D4
₪1,866
Review
Warranty3 years
Service During The Warranty Period (Who To Contact)COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part NumberROG STRIX Z790-A GAMING WIFI D4, 90MB1CN0-M0EAY0
ModelROG STRIX Z790-A GAMING WIFI D4
ConditionNew
ManufacturerAsus
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

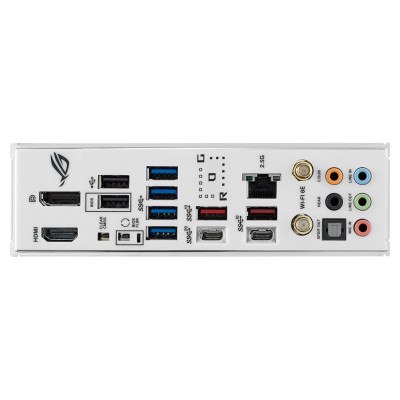

Back Panel Connectors

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

ChipsetZ690
Compatibility for computer assemblyIntel Motherboards
ConfigurationATX
Device Compatibility90MB1CN0-M0EAY0
Internal Ports / Inputs

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header

Memory

4 x DIMM, Max. 128GB, DDR4 DDR4
5333(OC)/5133(OC)/566(OC)/5(OC)/48(OC)/47(OC)/46(OC)/45(OC)/44(OC)/4266(OC)/4133(OC)/4(OC)/3866(OC)/3733(OC)/36(OC)/3466(OC)/34(OC)/3333(OC)/32/3/2933/28/2666/24/2133
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem III
* Supported memory types, data rate(Speed),
and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

SocketLGA1700
Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Wired Communication
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
Wireless network
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
סוג הזיכרוןDDR4
What'S In The Box?
Cables
2 x SATA 6Gb/s cables

Additional Cooling Kit
1 x Thermal pad for M.2

Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber

PackageDocumentation
1 x User guide
Link To The Manufacturer'S Website

Get full product information - Go to product page

Product LinkMotherboard Asus ROG STRIX Z790-A GAMING WIFI D4 DDR4 ATX LGA1700
system
Matching SKUsID: 50250, OC: 25471, ESX: 90MB1CN0-M0EAY0, VSL: 90MB1CN0-M0EAY0
Locationבמלאי היבואן
