Motherboard Gigabyte DDR4 Micro ATX LGA1200

Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
In the importer's stock
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200
Motherboard Gigabyte DDR4 Micro ATX LGA1200

* The picture is for illustration only

A short description

Manufacturer: Gigabyte, Socket: LGA1200, Chipset: H410, Memory Type: DDR4

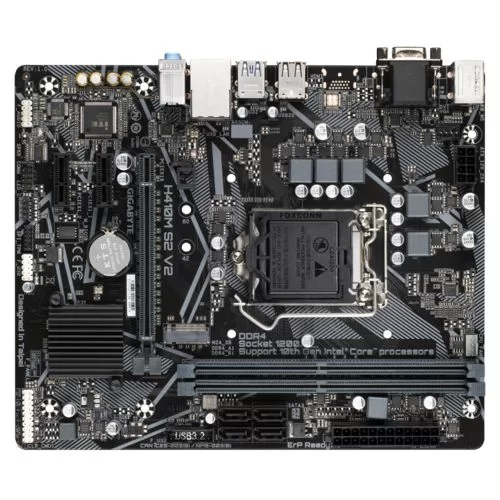

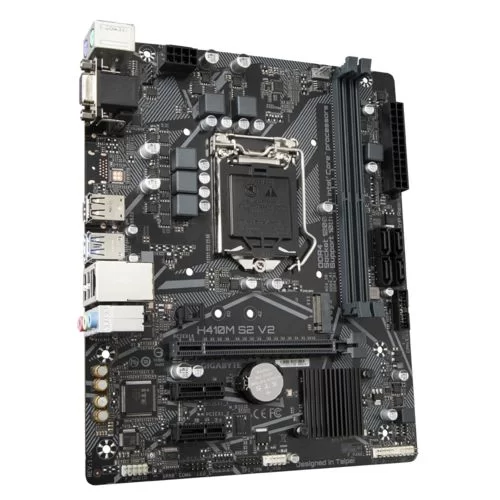

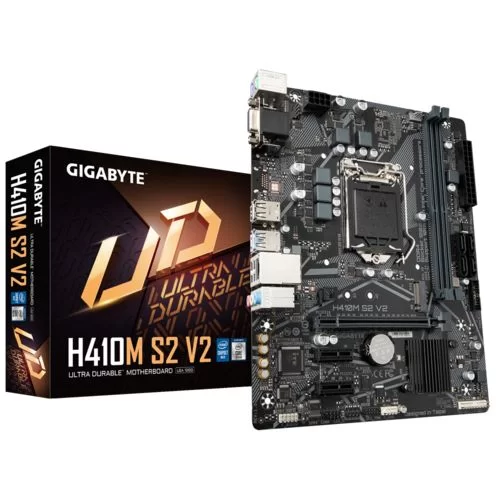

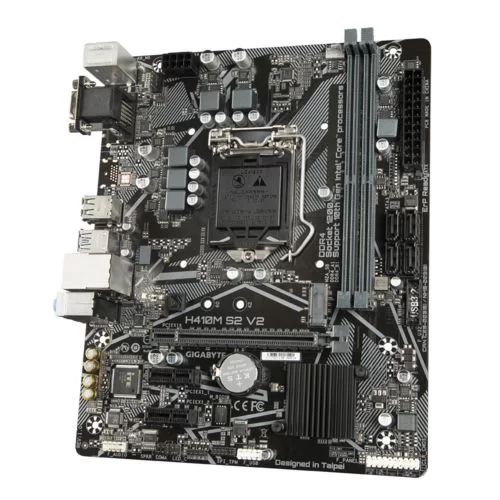

Motherboard Gigabyte DDR4 Micro ATX LGA1200

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • CHITAH collection points - 20₪ - over 200₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

Payment options:

  • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
  • Bank transfer (Deferred payment not accepted)Bit, PayBox
  • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
  • PayPal - Only Shipments With a Tracking Number
  • Stock: In the importer's stock (delivery to the branch up to 3 working days)
  • Print:
  • Product code: 23923-05
  • SKU: 45350
  • MPN: H410M S2 V2
₪310
Review
Warranty3 years
Service During The Warranty Period (Who To Contact)COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part NumberH410M S2 V2
ModelH410M S2 V2
ConditionNew
ManufacturerGigabyte
Audio
  1. Realtek Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Back Panel Connectors
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x D-Sub port
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
  • ChipsetH410
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationMicro ATX
    Internal Ports / Inputs
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x RGB LED strip header
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • Memory
    1. Intel Core i9/i7 processors:
      Support for DDR4 2933/2666/24/2133 MHz memory modules
    2. Intel Core i5/i3/Pentium/Celeron processors:
      Support for DDR4 2666/24/2133 MHz memory modules
    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)

    SocketLGA1200
    Storage
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    4. Intel Optane Memory Ready

    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

    Wired Communication1. Intel GbE LAN chip (1000/100 Mbit)
    סוג הזיכרוןDDR4
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte H410M S2 V2 DDR4 Micro ATX LGA1200
