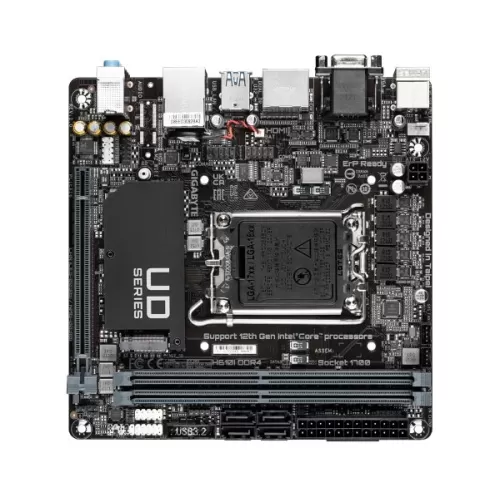

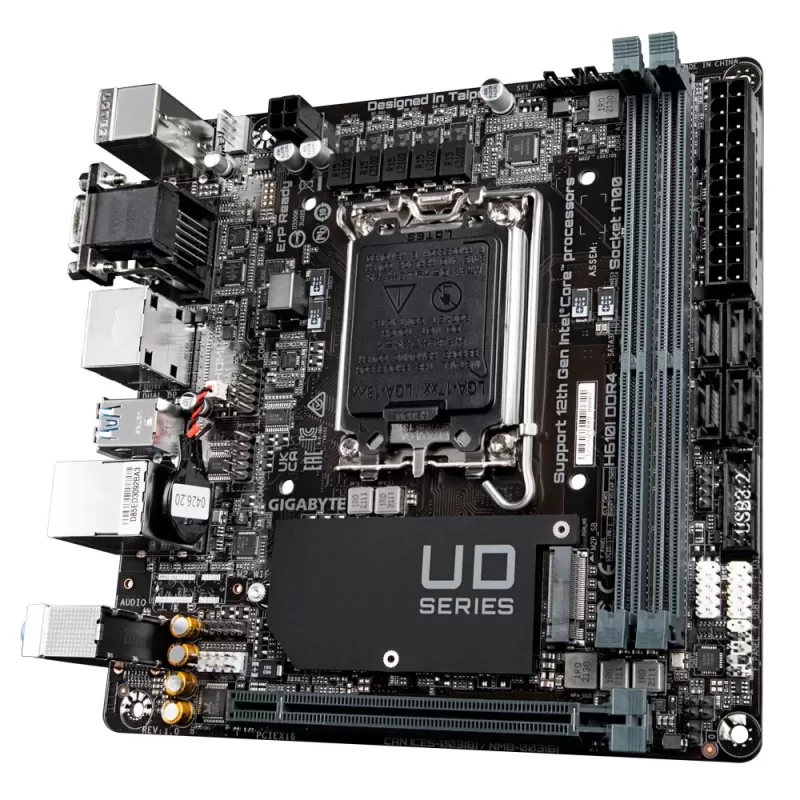

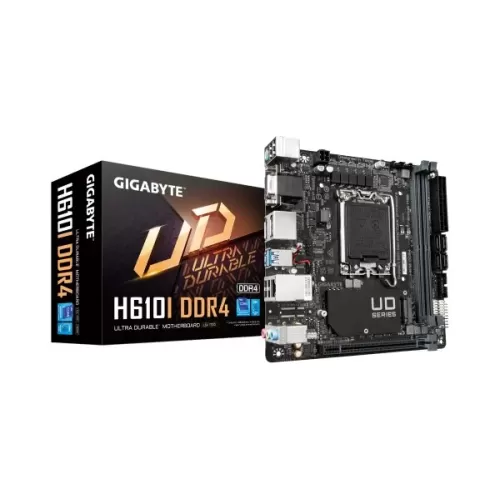

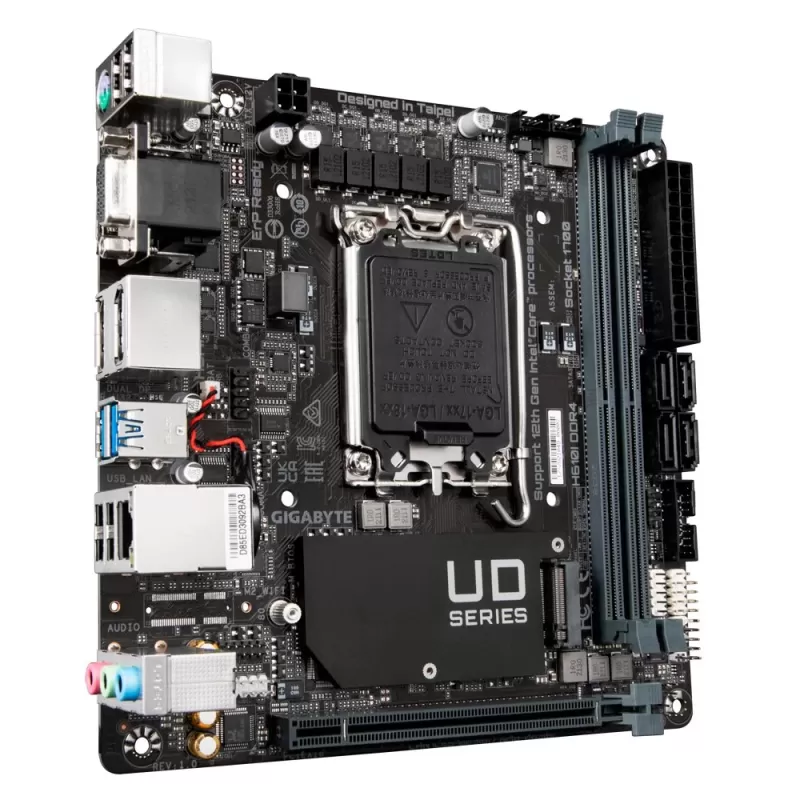

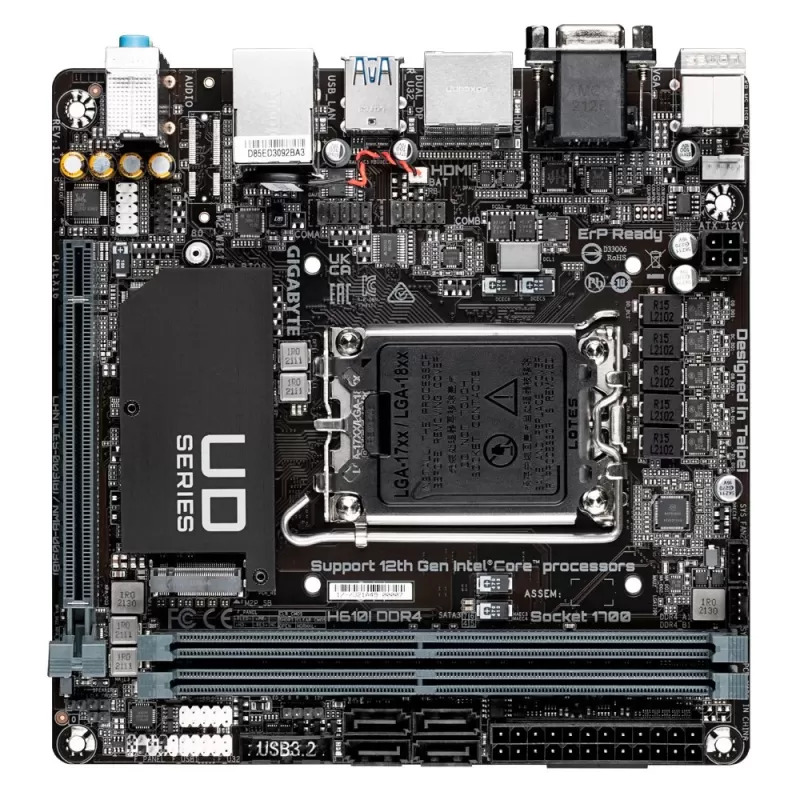

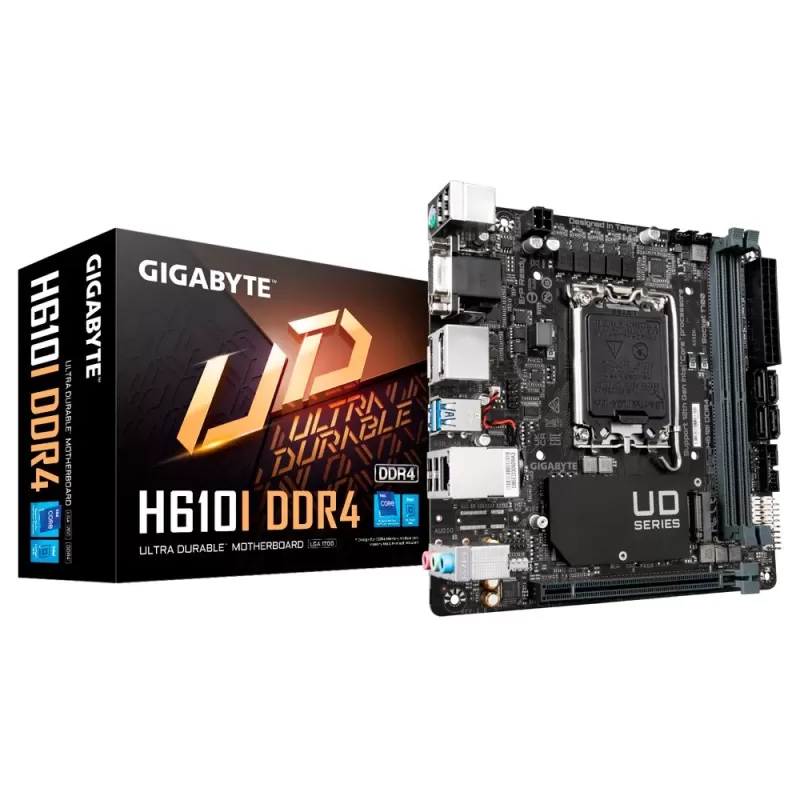

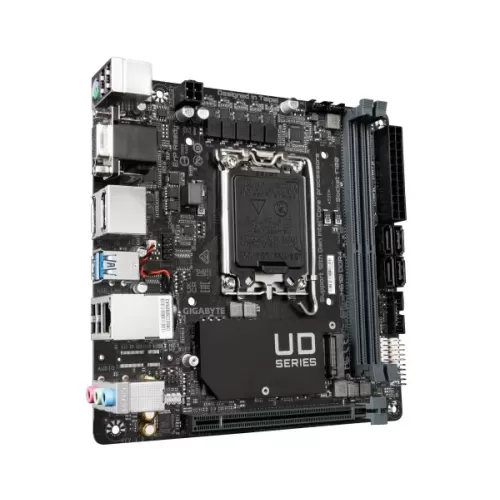

Motherboard Gigabyte Mini-ITX LGA1700

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

1. 1 x PS/2 keyboard/mouse port
2. 2 x USB 3.2 Gen 1 ports
3. 4 x USB 2.0/1.1 ports
4. 1 x D-Sub port
5. 2 x DisplayPorts
6. 1 x HDMI 2.0 port
7. 1 x RJ-45 port
8. 3 x audio jacks

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x CPU fan header
4. 2 x system fan headers
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 4 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 2 x USB 2.0/1.1 headers
12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
13. 2 x serial port headers
14. 1 x Clear CMOS jumper
15. 1 x chassis intrusion header

1. Support for DDR4 32/3/2933/2666/24/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
2. 4 x SATA 6Gb/s connectors
