Motherboard Gigabyte DDR5 ATX LGA1700

Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
In the importer's stock
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700
Motherboard Gigabyte DDR5 ATX LGA1700

* The picture is for illustration only

A short description

Manufacturer: Gigabyte, Socket: LGA1700, Chipset: Z690, Memory Type: DDR5
Motherboard Gigabyte DDR5 ATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • CHITAH collection points - 20₪ - over 200₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

Payment options:

  • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
  • Bank transfer (Deferred payment not accepted)Bit, PayBox
  • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
  • PayPal - Only Shipments With a Tracking Number
  • Stock: In the importer's stock (delivery to the branch up to 2 working days)
  • Print:
  • SKU: 44582
  • MPN: Z690 AORUS PRO
₪1,506
Review
Warranty3 years
Service During The Warranty Period (Who To Contact)COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part NumberZ690 AORUS PRO
ModelZ690 AORUS PRO
ConditionNew
ManufacturerGigabyte
Audio
  • Realtek ALC4080 CODEC
  • High Definition Audio
  • 2-channel analog output
  • Support for S/PDIF Out
    7.1-channel digital signals
    * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

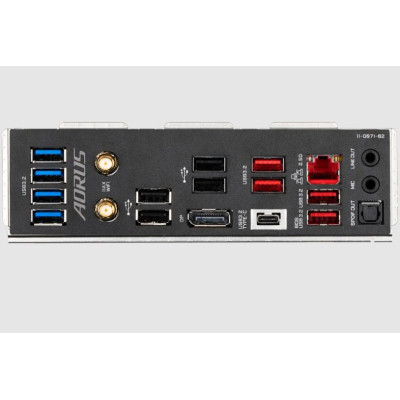

  • Back Panel Connectors
    1. 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
    2. 4 x USB 3.2 Gen 2 Type-A ports (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x DisplayPort
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 2 x audio jacks
    ChipsetZ690
    Compatibility for computer assemblyIntel Motherboards
    ConfigurationATX
    Internal Ports / Inputs
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x 4-pin ATX 12V power connector
    4. 1 x CPU fan header
    5. 1 x water cooling CPU fan header
    6. 4 x system fan headers
    7. 2 x system fan/water cooling pump headers
    8. 2 x addressable LED strip headers
    9. 2 x RGB LED strip headers
    10. 4 x M.2 Socket 3 connectors
    11. 6 x SATA 6Gb/s connectors
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x noise detection header
    18. 2 x Thunderbolt add-in card connectors
    19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    20. 1 x power button
    21. 1 x reset button
    22. 1 x Q-Flash Plus button
    23. 2 x temperature sensor headers
    24. 1 x reset jumper
    25. 1 x Clear CMOS jumper
    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
    SocketLGA1700
    Storage
    CPU:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB)
    2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB/M2Q_SB)
    3. 6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Intel Optane Memory Ready
    * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
    Wired Communication1. Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless network

    Intel Wi-Fi 6 AX200:

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.2
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
    סוג הזיכרוןDDR5
    Link To The Manufacturer'S Website

    Get full product information - Go to product page

    Product LinkMotherboard Gigabyte Z690 AORUS PRO DDR5 ATX LGA1700
    system
    Matching SKUsID: 44582, OC: 23720, MRLV: 95Z690530, MRLV2: 95Z690531, MRLV3: 95Z690532, CDLG: GZ690AORUSPRO
