| Warranty | 3 years |
| Service During The Warranty Period (Who To Contact) | COMPMASTER Lab 073-2241747 Gei Oni 6, Tet Shoping Center, Ashdod |
| Manufacturer Part Number | A620M H |
| Model | A620M H |
| Color | black |
| Condition | New |
| Manufacturer | Gigabyte |
| Audio | - Realtek®&Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
|

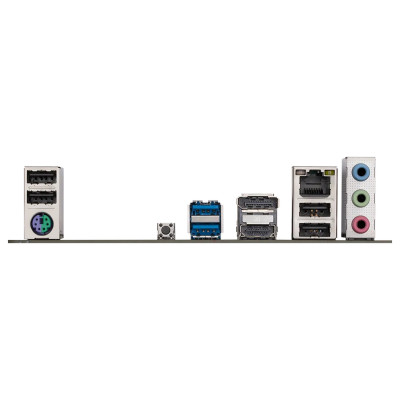

| Back Panel Connectors | - 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x Q-Flash Plus button
- 2 x USB 3.2 Gen 1 ports
- 1 x DisplayPort
- 1 x HDMI port
- 1 x RJ-45 port
- 3 x audio jacks
|
| Chipset | A620 |
| Compatibility for computer assembly | AMD Motherboards |
| Configuration | Micro ATX |
| Dimensions | Micro ATX Form Factor; 23.0cm x 22.5cm |
| Internal Ports / Inputs | - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x Clear CMOS jumper
|
| Memory | - Support for DDR5 64(OC)/62(OC)/6(OC)/56(OC)/52/48/44 MT/s memory modules
- 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
|
| Socket | AM5 |
| Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset: - 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Wired Communication | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| סוג הזיכרון | DDR5 |
| Link To The Manufacturer'S Website | Get full product information - Go to product page |
| Product Link | Motherboard Gigabyte A620M H DDR5 AM5 |
| Matching SKUs | ID: 56005, OC: 27014-05, ML: 95A62012-2, CD: GA620MH, MPN: A620M H |
