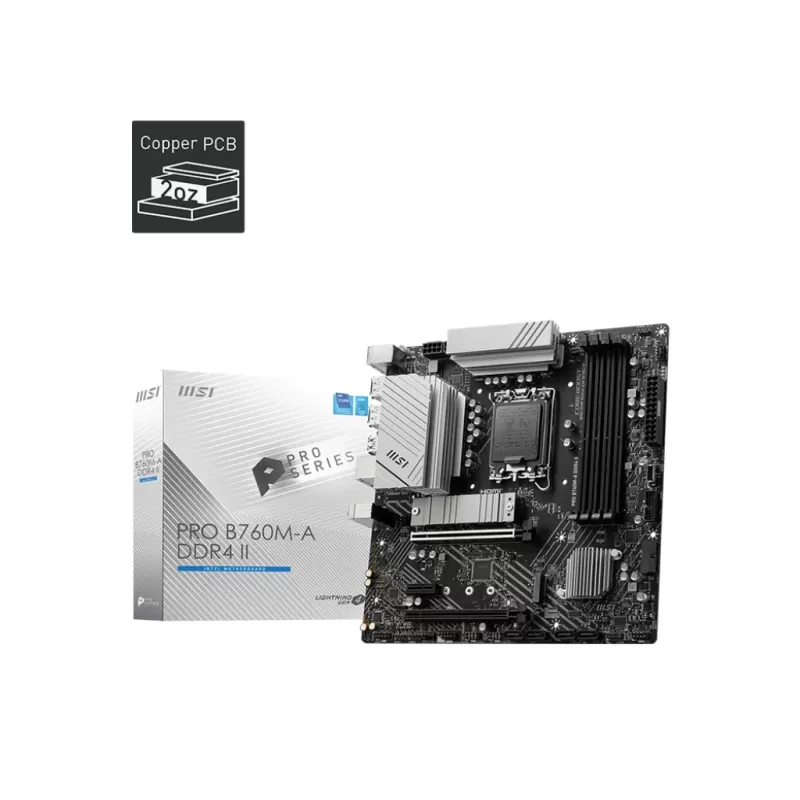

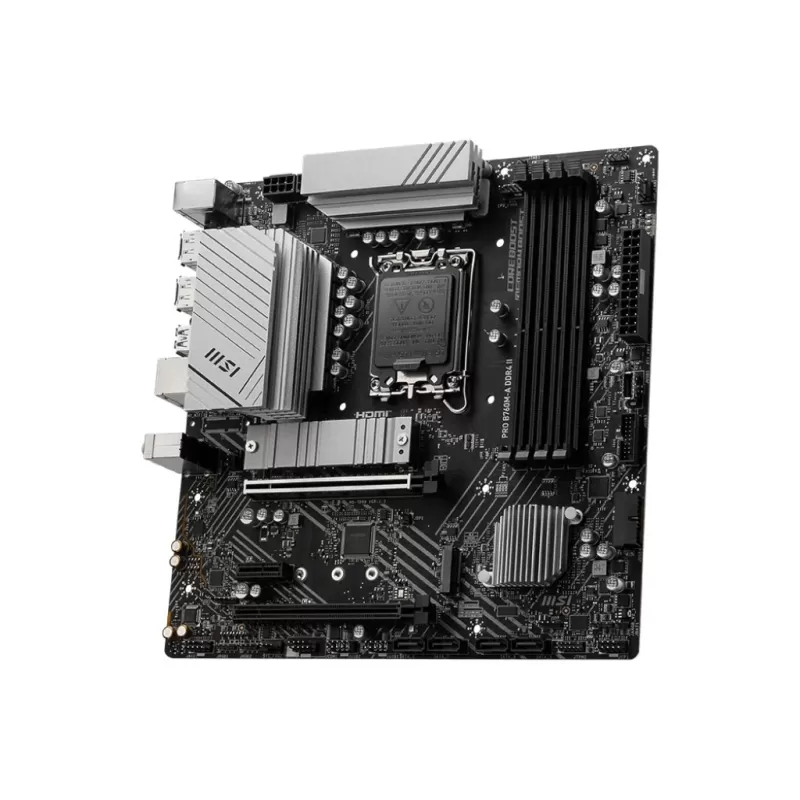

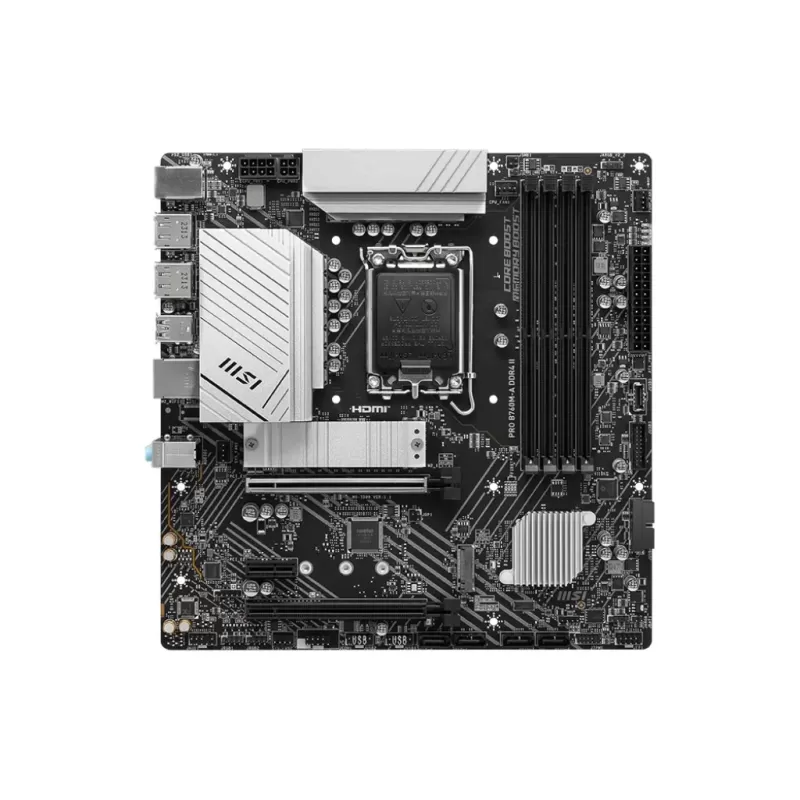

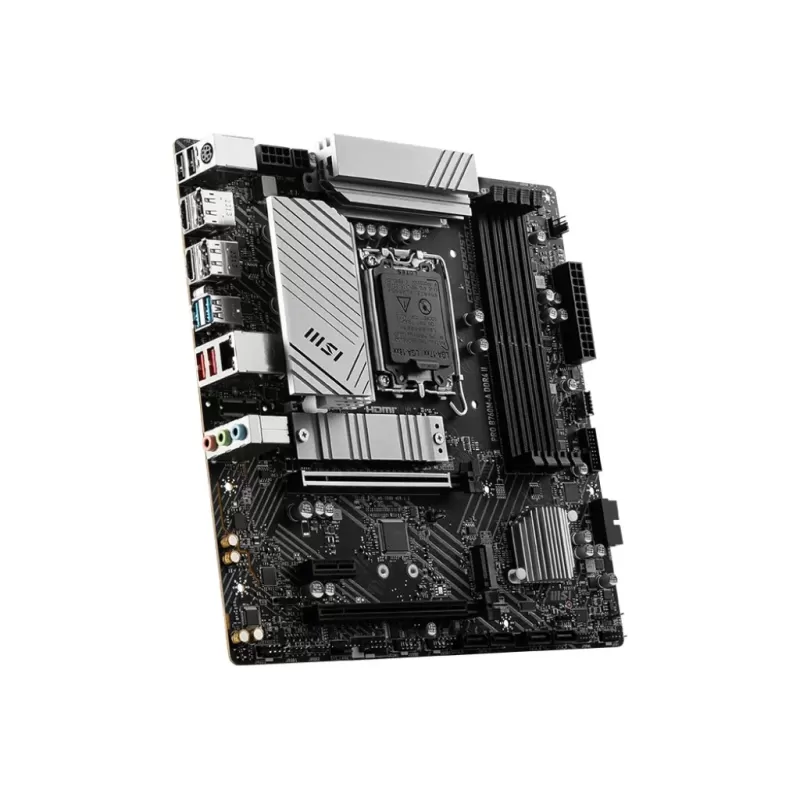

Motherboard MSI mATX LGA1700

Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Out of stock
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700
Motherboard MSI mATX LGA1700

* The picture is for illustration only

A short description

Manufacturer: Msi, Socket: LGA1700, Chipset: B760, Memory Type: DDR4
Motherboard MSI mATX LGA1700

Pick up and delivery options:

  • Collection from the Ashdod branch - 0₪
  • CHITAH collection points - 20₪ - over 200₪ - Free Delivery (For small packages)
  • Home delivery - 45 shekels -  over 2999₪ - Free Delivery
  • Self-collection from the importer - 0₪ - contact us for pick up option

Payment options:

  • Up to 12 interest-free Credit Card (13-36 with interest)  payments through a website, phone, or Ashdod branch
  • Bank transfer (Deferred payment not accepted)Bit, PayBox
  • Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
  • PayPal - Only Shipments With a Tracking Number
  • Stock: Out of stock
  • Print:
  • SKU: 58062
  • MPN: PRO B760M-A DDR4 II
₪649
Review
Warranty3 years
Service During The Warranty Period (Who To Contact)COMPMASTER Lab

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Manufacturer Part NumberPRO B760M-A DDR4 II
ModelPRO B760M-A DDR4 II
EAN4711377120562
ConditionNew
ManufacturerMsi
Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

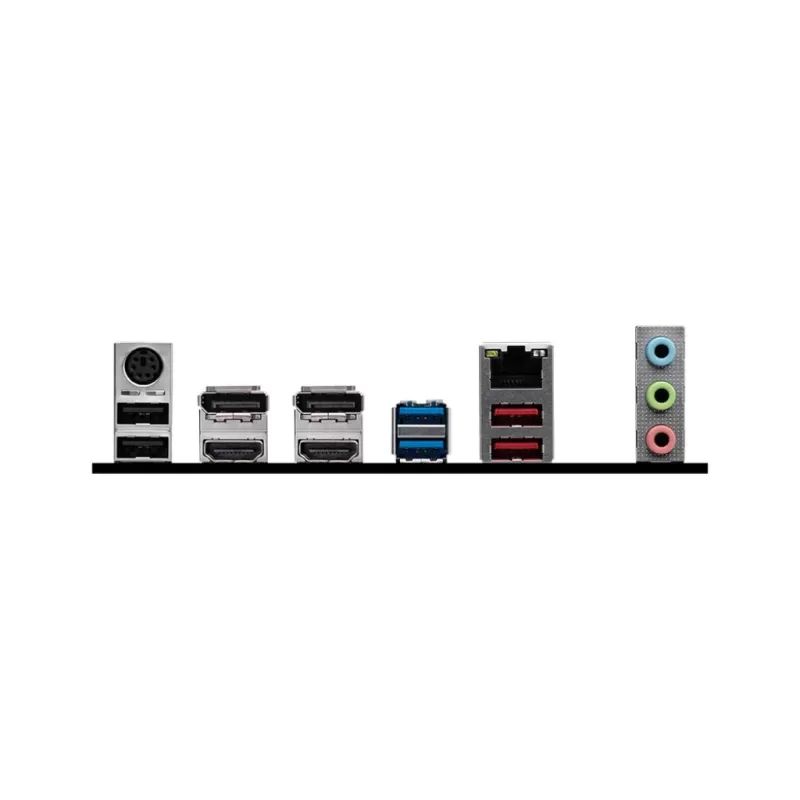

Back Panel Connectors
  • Keyboard / Mouse
  • DisplayPort
  • USB 3.2 Gen 1 5Gbps (Type-A)
  • 2.5G LAN
  • Audio Connectors
  • USB 2.0
  • HDMI™
  • USB 3.2 Gen 2 10Gbps (Type-A)
ChipsetB760
Compatibility for computer assemblyIntel Motherboards
ConfigurationmATX
Internal Ports / Inputs

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports

Memory

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 52(OC)/ 566(OC)/ 5(OC)/ 48(OC)/ 46(OC)/ 44(OC)/ 4266(OC)/ 42(OC)/ 4(OC)/ 38(OC)/ 3733(OC)/ 36(OC)/ 3466(OC)/ 34(OC)/ 3333(OC)/ 32(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 24(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 48+ MHz
• 2DPC 1R Max speed up to 44+ MHz
• 2DPC 2R Max speed up to 4+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

SocketLGA1700
Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

Wired CommunicationRealtek RTL8125BG 2.5G LAN
סוג הזיכרוןDDR4
Link To The Manufacturer'S Website

Get full product information - Go to product page

Product LinkMotherboard MSI PRO B760M-A DDR4 II mATX LGA1700
system
Matching SKUsID: 58062, OC: 36735, MTL: 4711377120562
