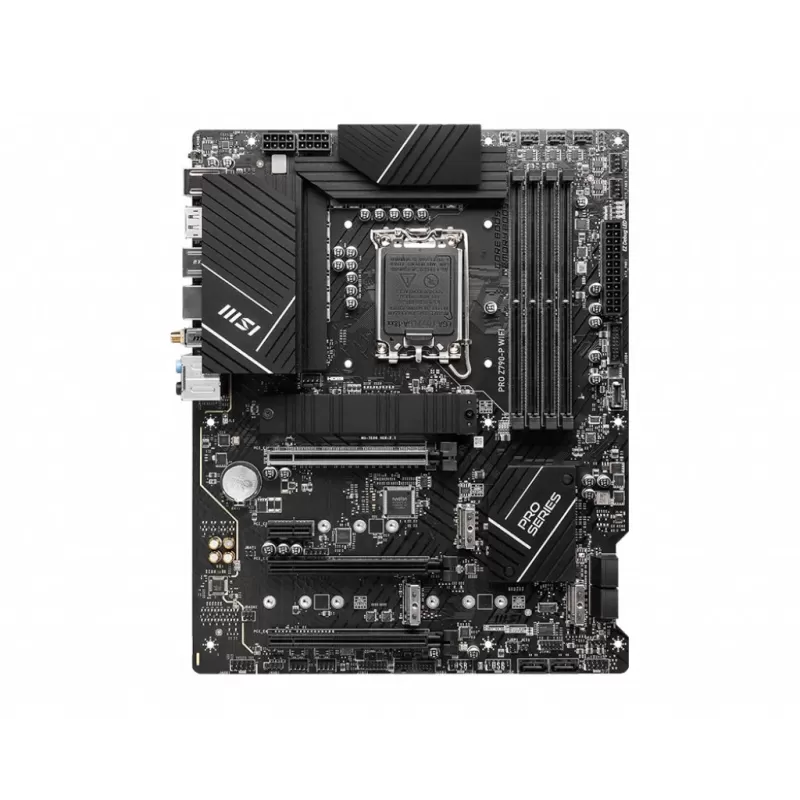

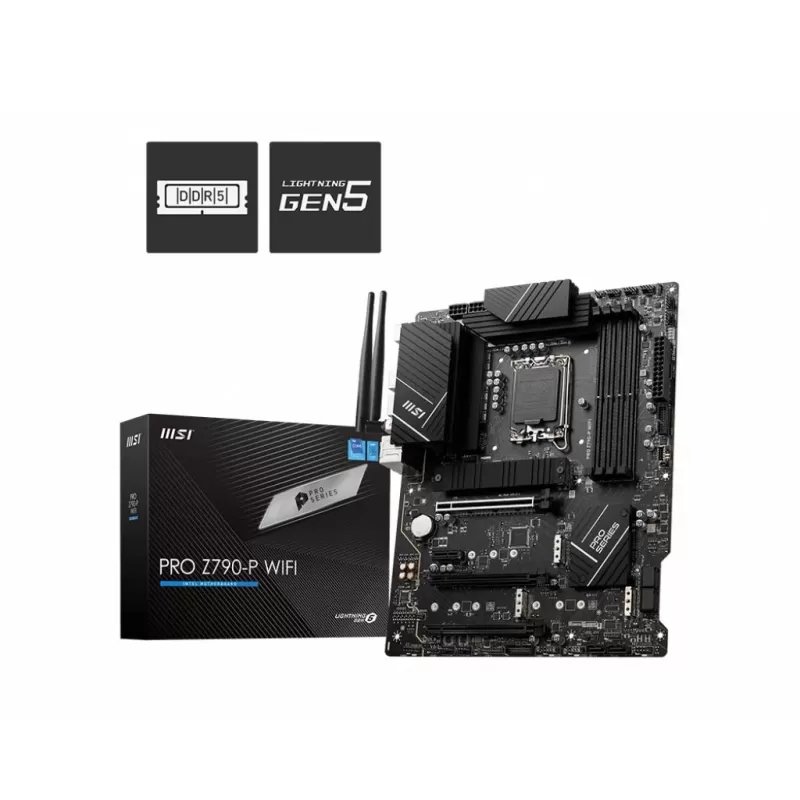

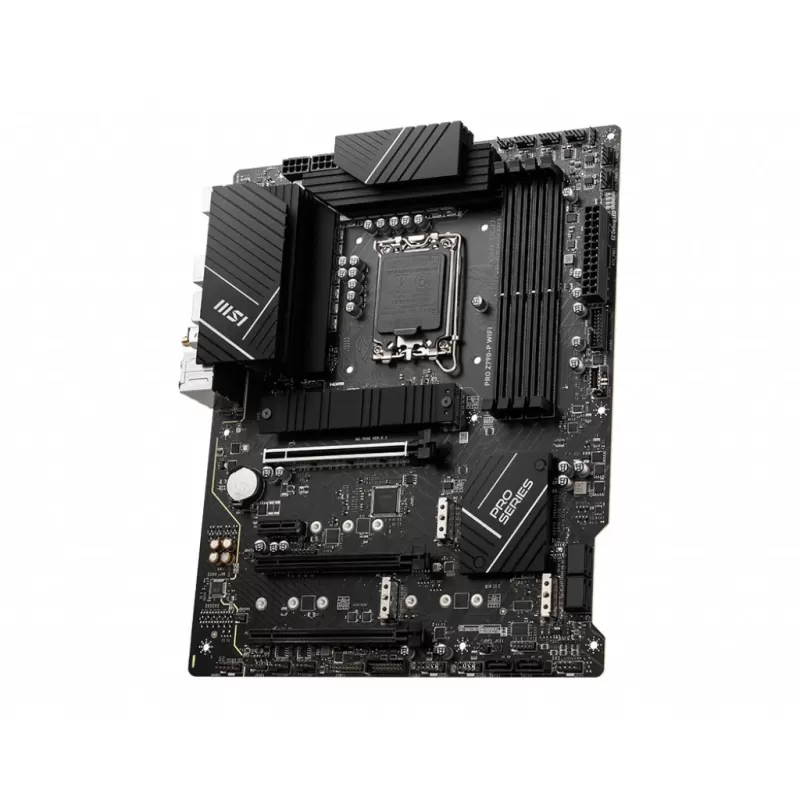

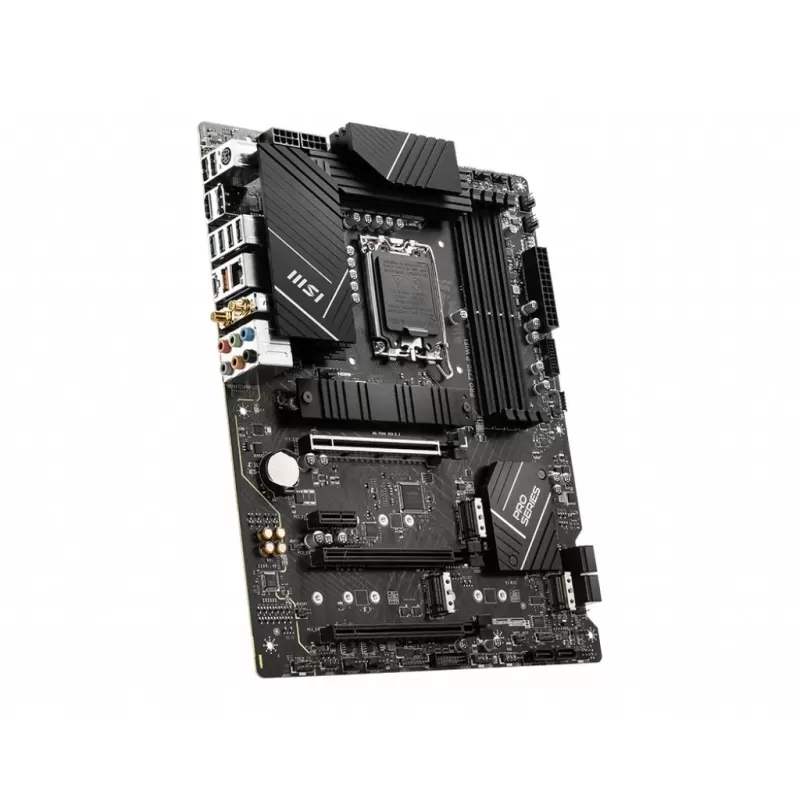

Motherboard MSI DDR5 ATX LGA1700

073-2241747

Gei Oni 6, Tet Shoping Center, Ashdod

Realtek^® ALC897 Codec
7.1-Channel High Definition Audio

1. Keyboard / Mouse
2. DisplayPort
3. USB 2.0
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. Flash BIOS Button
8. USB 2.0
9. HDMI™
10. USB 3.2 Gen 1 5Gbps (Type-A)
11. USB 3.2 Gen 2x2 20Gbps (Type-C)
12. USB 3.2 Gen 2 10Gbps (Type-A)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7+(OC)/68(OC)/66(OC)/64(OC)/62(OC)/6(OC)/58(OC)/56(JEDEC)/54(JEDEC)/52(JEDEC)/5(JEDEC)/48(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7+ MHz
• 1DPC 2R Max speed up to 66+ MHz
• 2DPC 1R Max speed up to 64+ MHz
• 2DPC 2R Max speed up to 56+ MHz

Supports Intel^® XMP3. OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6G port

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA
