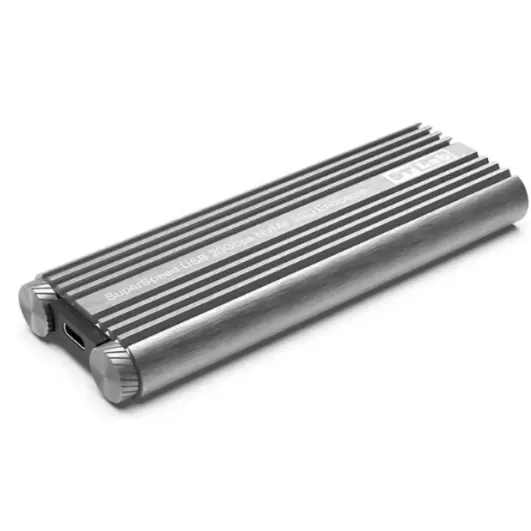

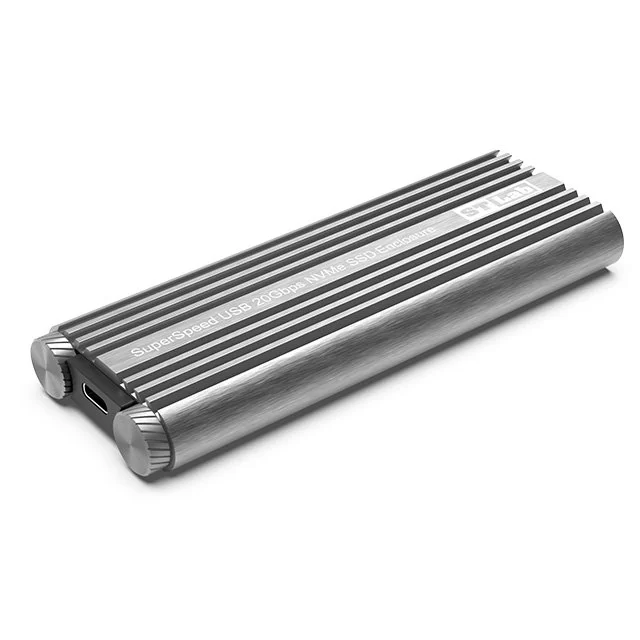

Case for SSD disk St-Lab USB 20Gbps Type-C NVMe Enclosure ST-S-390

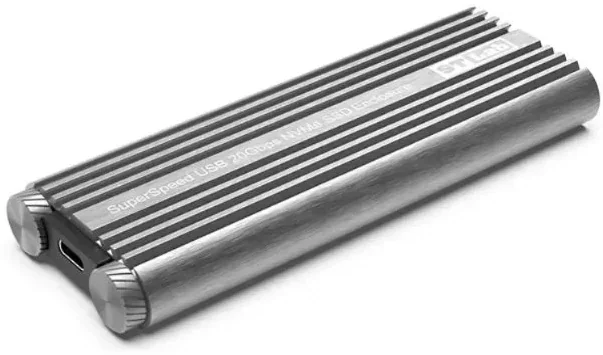

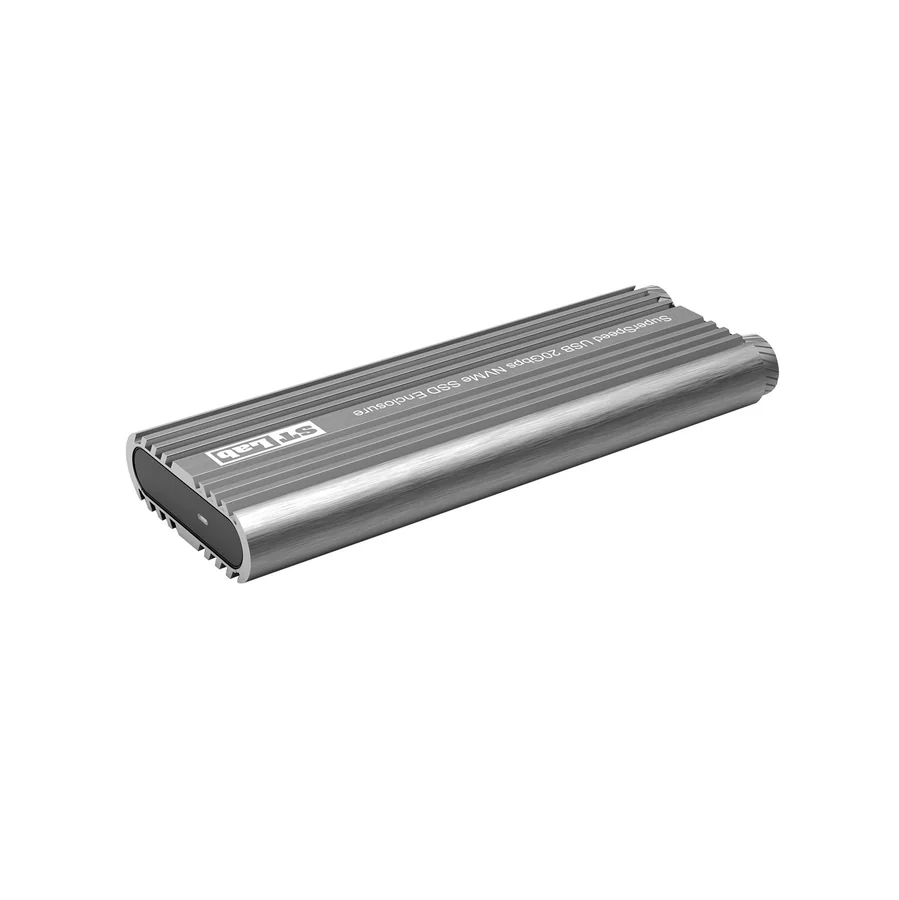

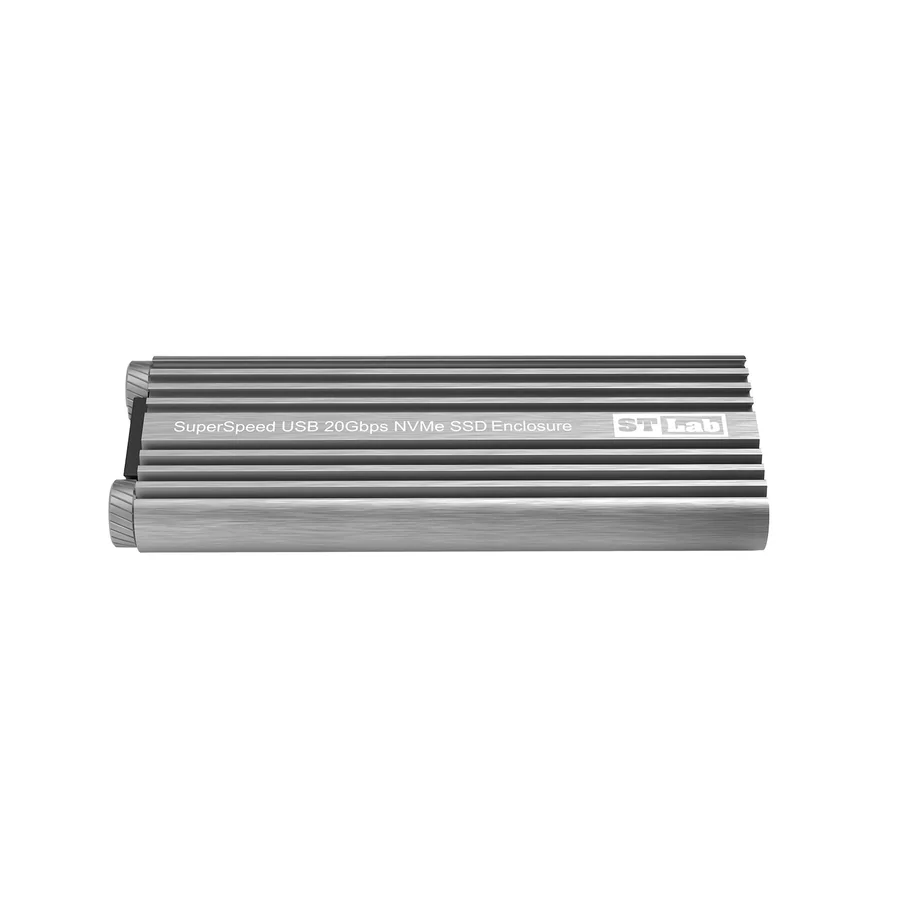

SSD Enclosure St-Lab USB 20Gbps Type-C NVMe Enclosure

The St-Lab S-390 turns an M.2 NVMe SSD into a fast external drive. It runs USB 3.2 Gen 2x2 with an ASMedia ASM2364 controller and, on a USB 20Gbps port, reaches transfer rates of up to 20Gbps.

It is aimed at content creators, photographers and videographers who offload and back up large high-resolution media libraries, and at anyone who wants fast external backup. It also works on USB 10Gbps, 5Gbps and USB 2.0 ports at the speed of the port.

The aluminum body has an integrated ribbed heatsink with a large surface that dissipates heat and prevents throttling during long transfers. Installation is tool-less and driver-free, so drives can be swapped quickly. The SSD is not included and is purchased separately.

Key features

• USB 20Gbps - USB 3.2 Gen 2x2 with the ASMedia ASM2364 controller for transfer rates up to 20Gbps on a USB 20Gbps port.
• PCIe 3.0 x4 NVMe drives - Supports M.2 NVMe SSDs with a PCIe 3.0 x4 interface in 2230, 2242, 2260 and 2280 sizes.
• Ribbed aluminum body - A high-surface-area integrated heatsink dissipates heat and prevents slowdowns in long transfers, with an included thermal pad.

• Tool-less installation - A smart mechanical design for installing and swapping the drive without tools or drivers.
• Status LED - On: good link with the host. Blinking: reading or writing. Off: enclosure disconnected.

Specifications

In the box

• S-390 enclosure

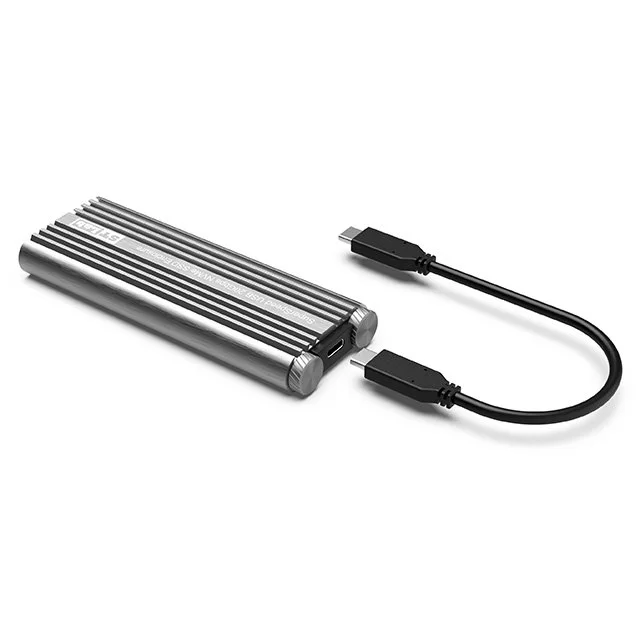

• 30 cm USB 20Gbps Type-C to Type-C cable
• Thermal pad
• User manual
