SSD Enclosure St-Lab USB 3.2 Gen 2 Type-C NVMe Enclosure S-380

The St-Lab S-380 is a pocket-size enclosure for an M.2 NVMe SSD that turns an internal drive into a fast external one. It is built on the Realtek RTL9210 controller and connects over a USB 3.2 Gen 2 USB-C port with up to 10Gbps of bandwidth.

It suits anyone who upgraded a laptop SSD and wants to reuse the old drive for backups, photographers and video editors moving large files, and anyone who needs fast storage in a pocket. The enclosure takes 2230, 2242, 2260 and 2280 drives and needs no drivers.

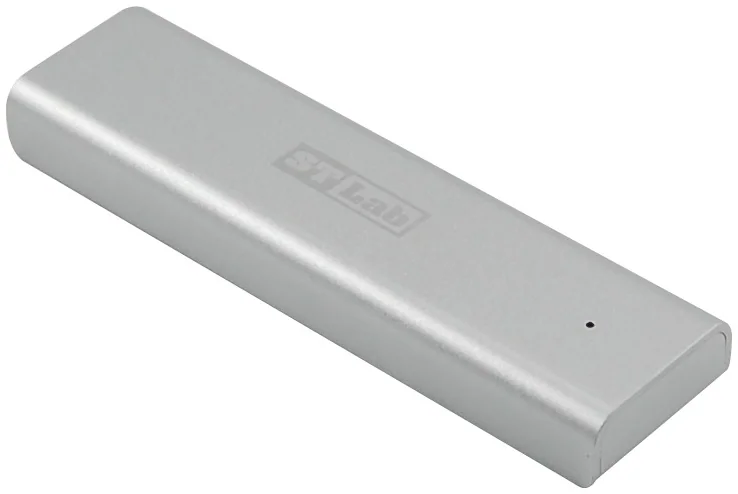

The aluminum housing acts as an integrated heatsink that pulls heat away from the SSD, keeping performance stable during long transfers. At 103.5 x 28 x 12 mm it slips into a pocket or laptop bag, and the box includes a USB-C to USB-C cable, a USB-A to USB-C cable and a thermal pad.

Key features

• USB 3.2 Gen 2 up to 10Gbps - The USB-C port follows USB 3.2 Gen 2 with up to 10Gbps of bandwidth and also runs in SuperSpeed, High-Speed and Full-Speed modes on slower ports.

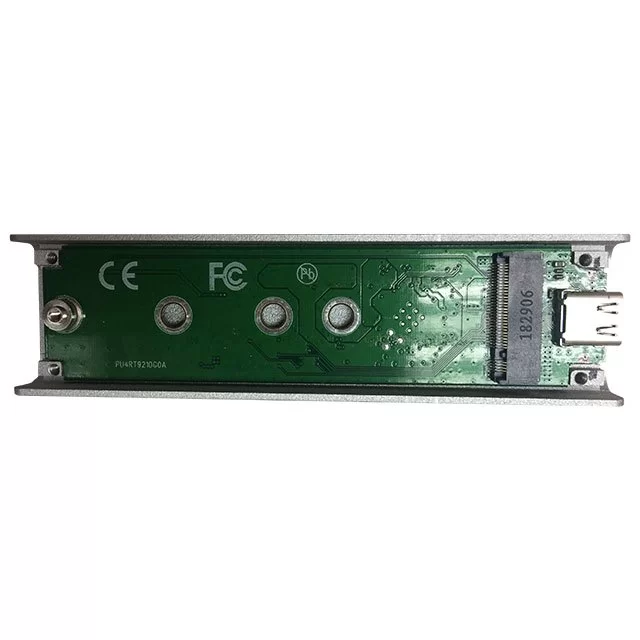

• Realtek RTL9210 bridge - The Realtek RTL9210 controller bridges the drive's NVMe interface to USB and supports PCIe 3.0 M.2 NVMe SSDs.
• Four drive sizes - The internal mount accepts 2230, 2242, 2260 and 2280 drives, so almost any M.2 NVMe SSD fits.

• Aluminum heatsink body - The aluminum chassis doubles as a heatsink and the included thermal pad transfers heat from the SSD to the shell for stable operation under long loads.
• No drivers - The enclosure is OS independent and needs no drivers: plug in the cable and the drive appears.
• Two cables included - A USB-C to USB-C cable and a USB-A to USB-C cable, 30 cm each, for new and older computers.

Specifications

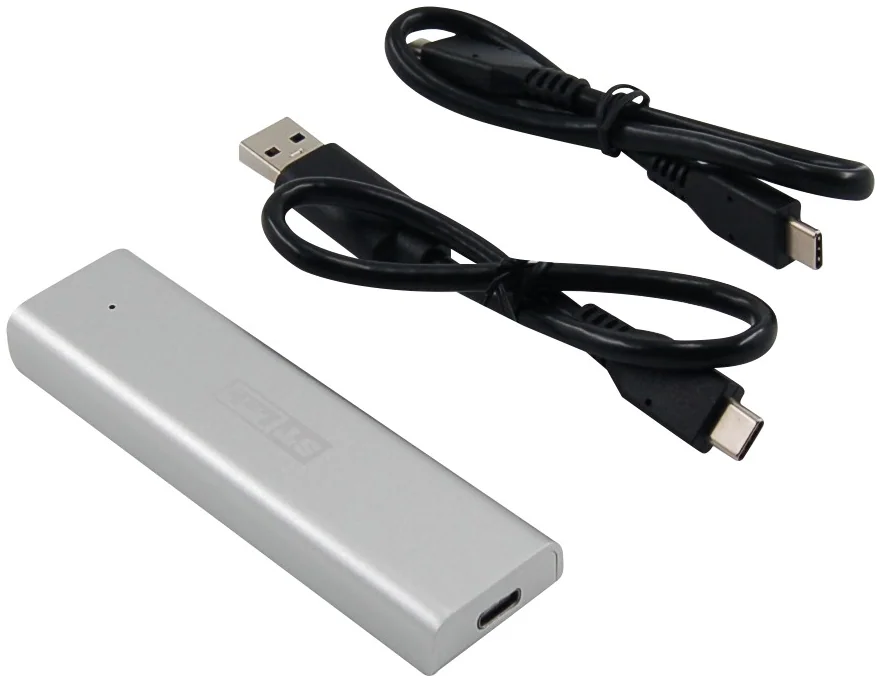

In the box

• S-380 enclosure
• 30 cm USB-C to USB-C cable
• 30 cm USB-A to USB-C cable
• Thermal pad
• User manual
