KVM Extender ATEN CE624 USB DVI Dual View HDBaseT 2.0 100m CE624 Color:black

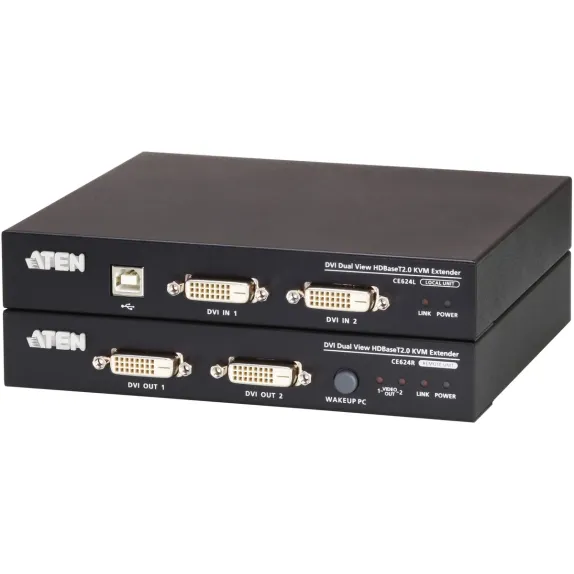

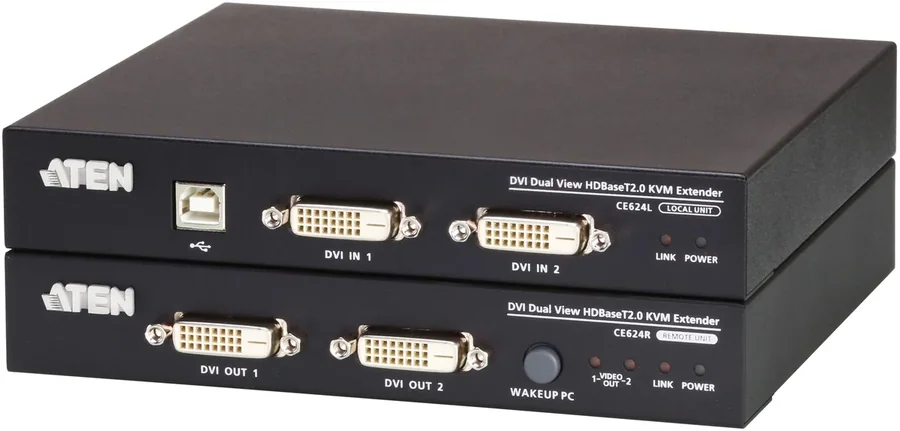

ATEN CE624 USB DVI Dual View HDBaseT 2.0 100m KVM Extender

The ATEN CE624 lets you control a computer remotely with two DVI displays, keyboard, mouse and USB devices, plus two-channel audio and RS-232 signals, all over a single Cat 6/6a cable. With HDBaseT 2.0 it delivers video up to 1920x1200 at 100 m.

Long Reach mode extends the range to 150 m at 1080p for a single display, and an EDID buffer ensures smooth power-up and the best picture quality. It suits control centers, medical facilities, warehouses and remote workstations.

Key features

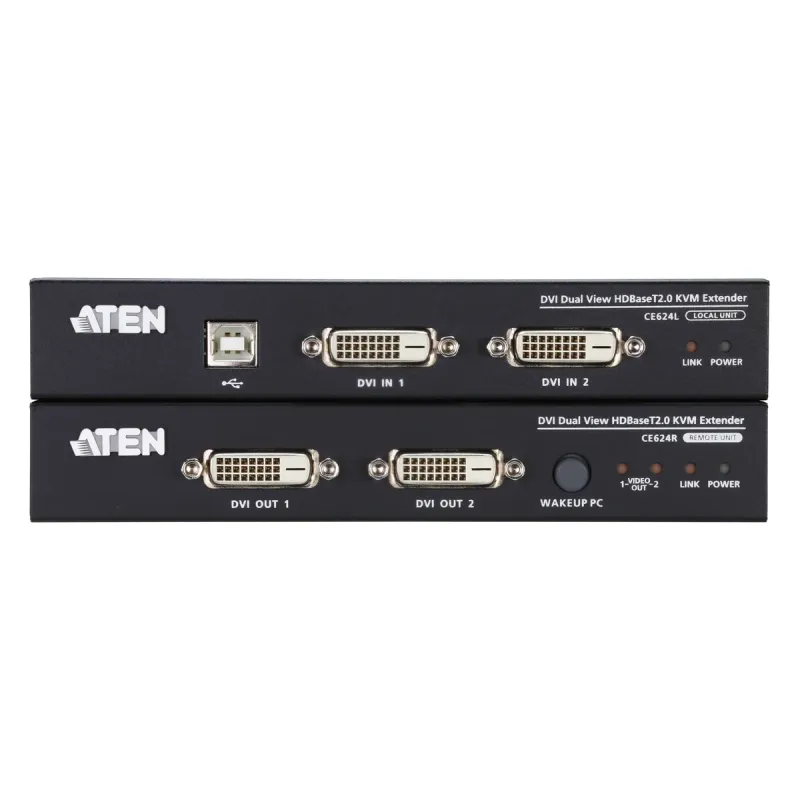

• Two DVI displays - Dual View support with two DVI-D monitors at the remote side, up to 1080p on both.
• HDBaseT 2.0 over one cable - Video, audio, USB and RS-232 over a single Cat 6/6a cable with error correction against interference.
• Long range - Up to 100 m at 1920x1200 in standard mode and up to 150 m at 1080p in Long Reach mode for one display.
• Full USB 2.0 - Three USB ports at the remote side for keyboard, mouse and other peripherals.

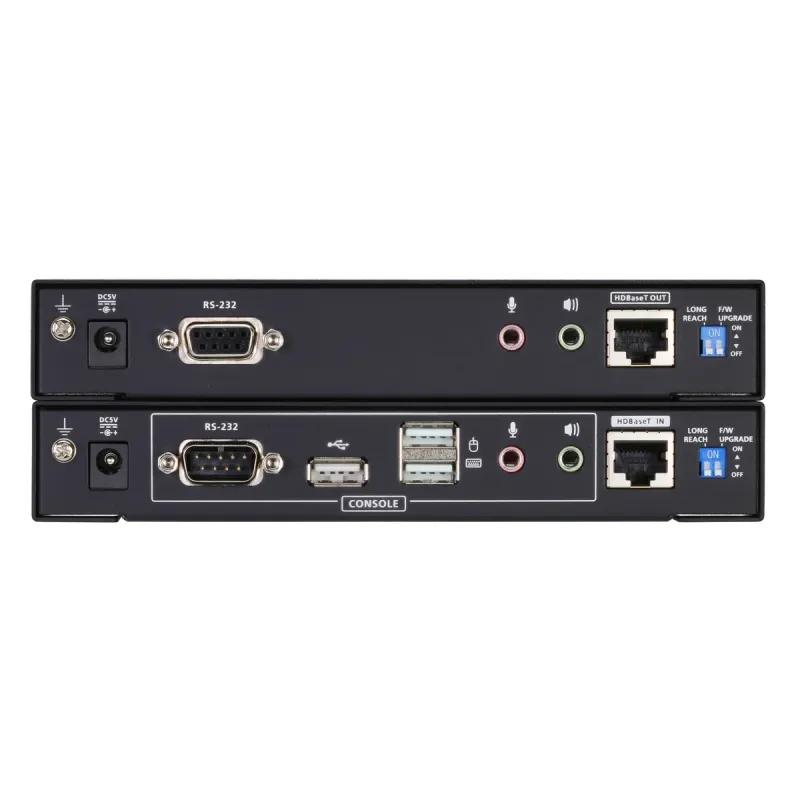

• Audio and RS-232 - Two-channel PCM audio and RS-232 commands for controlling other equipment.
• Protection and wake-up - 8kV contact and 15kV air ESD protection, plus a Wakeup button to wake the computer remotely.

Specifications

In the box

• CE624L local unit
• CE624R remote unit
• 2 x 1.8 m DVI-D cables
• 2 audio cable sets
• USB cable
• 2 power adapters
• Mounting kits
• User instructions
