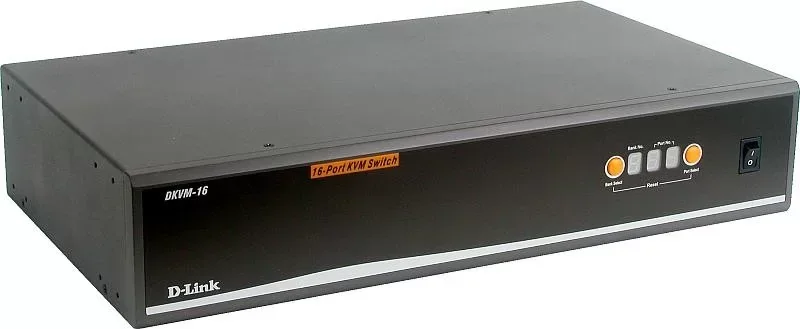

| Revew | D-Link DKVM-16 KVM SwitchThe D-Link DKVM-16 is a 16-port KVM switch for managing up to 16 servers or computers with one keyboard, mouse and monitor. Each port has a dedicated microprocessor that manages port traffic and allows simultaneous boot-up of all attached PCs, and the switch remembers the CAPS LOCK, NUM LOCK and SCROLL LOCK status of every computer. An on-screen display (OSD) menu lets you name and select computers, alongside front-panel buttons, keyboard hotkeys, Auto Scan and eight-character password protection. The daisy chain port links up to 8 DKVM-16 switches to control as many as 128 computers. The switch supports VGA, SVGA and MultiSync monitors at up to 1920x1440 and is designed for 19-inch rack mounting.
Key features- 16 computers from one console - Control up to 16 servers or computers with a single keyboard, mouse and monitor, with no software required.
- Expand to 128 computers - The daisy chain port links up to 8 DKVM-16 units, and each bank is detected automatically without DIP switches.
- OSD menu and password - An on-screen menu for naming and selecting computers, plus eight-character password protection.
- Several ways to switch - Front buttons, keyboard hotkeys, the OSD menu and Auto Scan with a 5 to 99 second interval, with an audible beep on every switch.
- Error-free boot - Keyboard and mouse emulation lets every computer boot without errors, and hot plug lets you add or remove a PC without powering down the switch.
- Legacy support - Supports AT and PS/2 keyboards, and an included adapter connects computers with a serial mouse port.
Specifications| Manufacturer | D-Link | | Model | DKVM-16 | | Part number | DKVM-16 | | Type | 16-port KVM switch, VGA and PS/2 | | Computers | 16 | | Console connectors | PS/2 keyboard and PS/2 mouse (6-pin Mini-DIN), VGA monitor (15-pin HDDB) | | Maximum resolution | 1920x1440, 200MHz bandwidth | | Cascading | 1 daisy chain port, up to 8 units and 128 computers | | Switching | Push buttons, hotkeys, OSD menu | | Switching notification | Audio beep | | Scan interval | 5 to 99 seconds | | Security | 8-character password | | LEDs | Bank LED and Port LED | | Power | 12V 1A adapter | | Mounting | 19-inch rack, kit included | | Dimensions | 406 x 229 x 83 mm | | Weight | 3.5 kg | | Operating temperature | 0 to 50°C | | Certifications | FCC, CE |
In the box- D-Link DKVM-16 KVM switch
- 12V 1A power adapter
- 3 sets of 3-in-1 KVM cables (one 3 ft set for daisy chaining, two 6 ft sets for PCs)
- 2 DB-9 to 6-pin Mini-DIN mouse converters
- 2 DIN 5-pin to 6-pin Mini-DIN keyboard converters
- User manual
- 2 rack mount brackets and 8 screws
|
