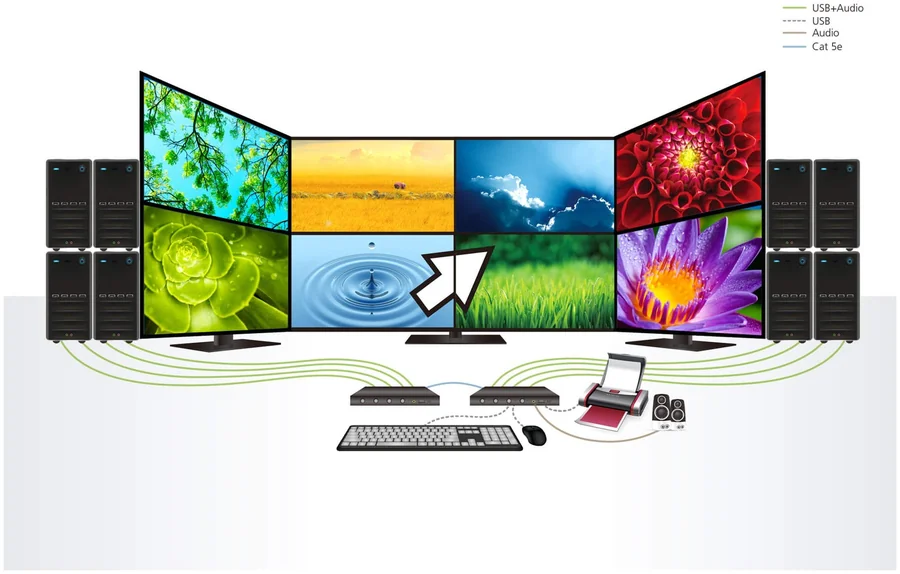

| Revew | ATEN CS724KM 4-Port USB Boundless KM Switch (Cables included)The ATEN CS724KM is a KM (keyboard and mouse) switch that lets you control four computers from a single USB keyboard and mouse while each computer keeps its own display. With ATEN exclusive Boundless Switching technology, you simply move the mouse cursor across the screen border onto the display of the next computer and control moves to it, in any direction. The function supports extended desktops with up to 16 monitors in total, and a graphical configuration utility for Windows lets you arrange the monitor layout. Two units can be daisy-chained to control up to eight computers, and the switch is powered from the USB connections of the computers, with no external power adapter. It suits control rooms, trading desks and any workstation with several computers and displays.
Key features- Boundless Switching - Switch computers by moving the cursor onto the next computer display, with a window frame that shows which computer currently has the focus.
- Up to 16 monitors - Supports extended desktops with up to 16 monitors, with a GUI utility to customize the monitor layout and cursor path.

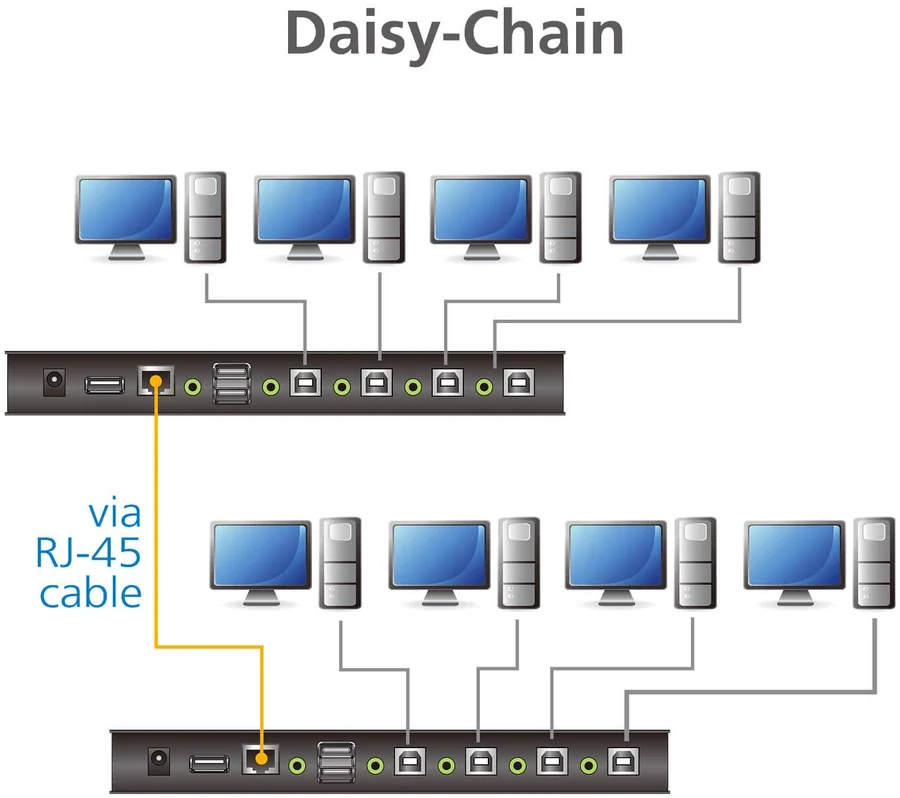

- Eight computers via daisy chain - Two CS724KM units linked with an RJ-45 cable control up to eight computers from one keyboard and mouse.
- Five selection methods - Front panel pushbuttons, hotkeys, mouse cursor, mouse wheel and RS-232 commands, with independent switching of keyboard/mouse, USB and audio focus.
- No power adapter needed - Bus-powered from the USB connections of the computers (at least two computers must be connected), in a slim 2.5 cm housing.
- Windows and Linux - Supports Windows and Linux. For Boundless Switching on extended desktops, install the ATEN Driver AP software on the computers.
Specifications| Manufacturer | ATEN | | Model | CS724KM | | Type | USB KM (keyboard and mouse) switch with Boundless Switching | | Computer connections | 4 (up to 8 with two daisy-chained units) | | Extended desktop monitors | Up to 16 | | Video | Not switched (KM only) | | Console ports | 2 x USB-A, 2 x 3.5 mm audio jack (front and rear), 1 x RJ-45 | | Computer ports | 4 x USB Type-B, 4 x 3.5 mm audio jack | | USB hub | 2 x USB 2.0 Type-A, front and rear | | Port selection | Pushbuttons, hotkeys, mouse cursor, mouse wheel, RS-232 commands | | Operating systems | Windows, Linux | | Power | USB bus-powered, optional DC jack | | Power consumption | DC 5V, 1.69W | | Operating temperature | 0-50°C | | Humidity | 0-80% RH, non-condensing | | Housing | Metal and plastic | | Dimensions | 20 x 8.06 x 2.5 cm | | Weight | 0.5 kg |

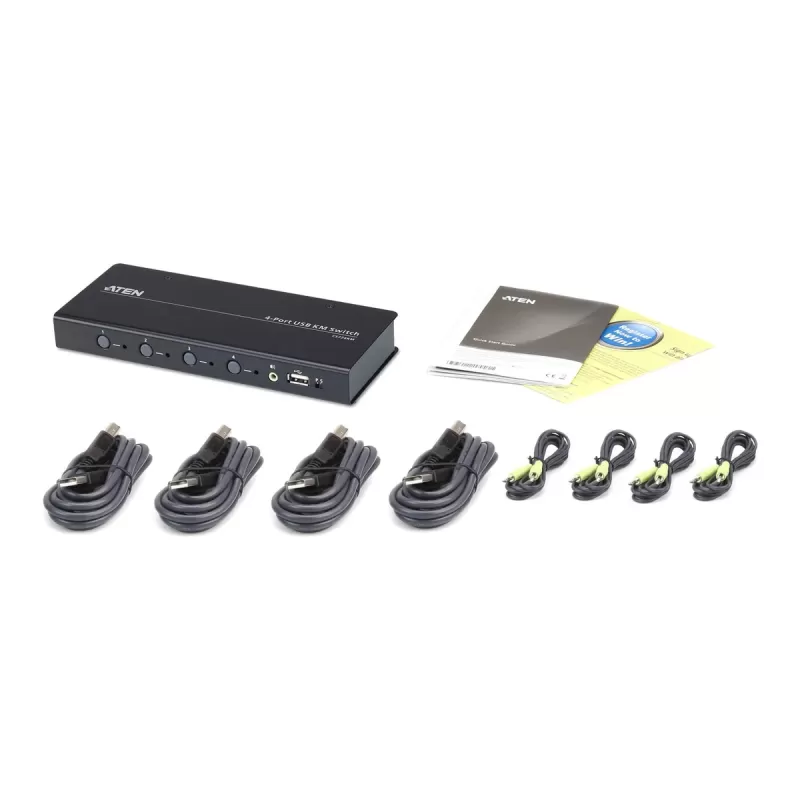

In the box- ATEN CS724KM switch
- 4 x USB 2.0 cable (A to B), 1.8 m
- 4 x audio cable, 1.8 m
- User instructions
|
