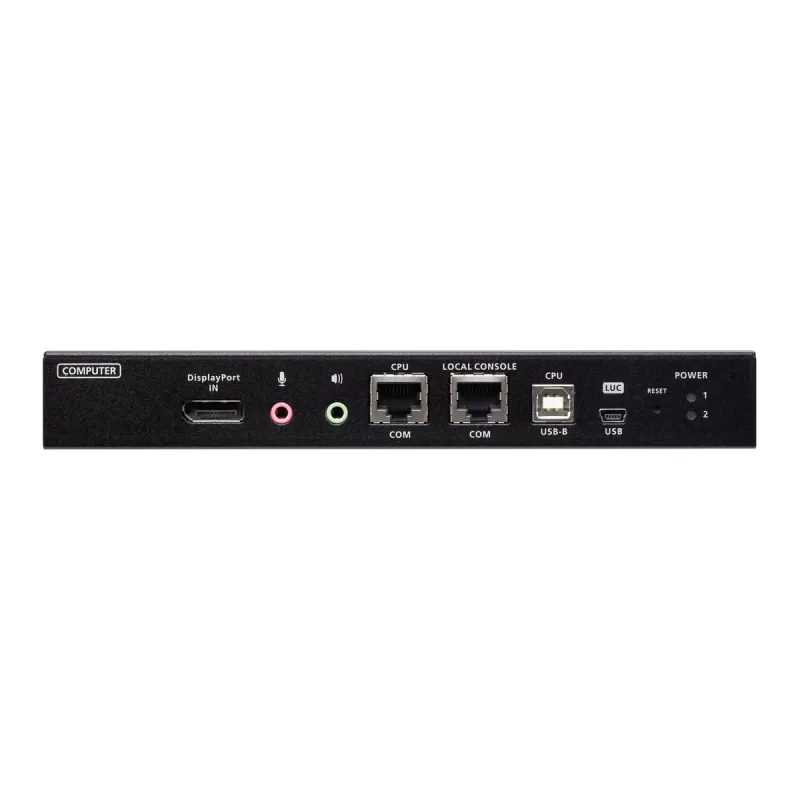

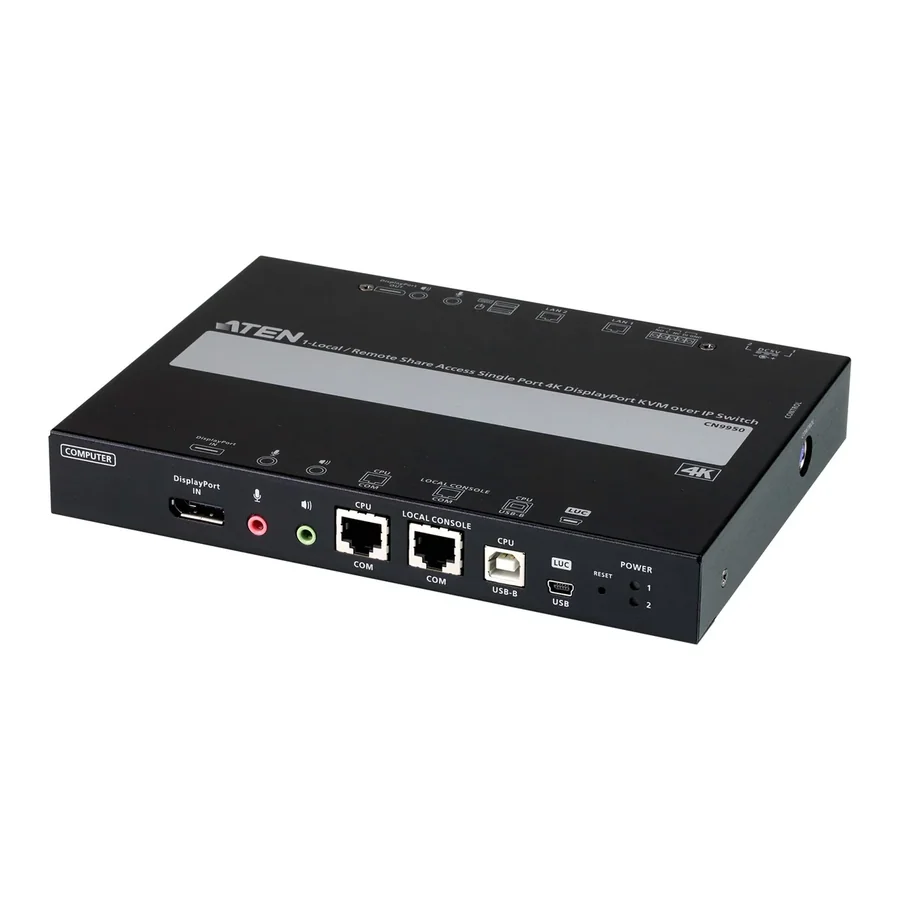

| Revew | ATEN CN9950 4K DisplayPort KVM over IP SwitchThe ATEN CN9950 adds remote network access to a single PC or server, with control of keyboard, mouse, video, audio and virtual media. The connection works at the hardware and BIOS level, so no software is installed on the managed computer and access works even when the operating system does not boot. An FPGA graphics processor delivers resolutions of up to 4K DCI (4096 x 2160) on the local console and over IP. The unit has two Gigabit LAN ports and two power inputs for redundancy, a Relay/DI terminal for sensor alerts and remote reboot, and supports up to 64 user accounts with up to 32 sharing control at once. It suits server rooms, control rooms and work-from-home setups.
Key features- BIOS-level remote access - A direct, encrypted keyboard, mouse and video connection separated from the operating network, with no driver or software on the managed computer.
- 4K picture - DisplayPort video up to 4096 x 2160 at 30Hz on the local console and up to 4096 x 2160 remotely, processed by an FPGA graphics processor.
- Dual LAN and dual power - Two 10/100/1000Mbps ports for a redundant LAN or two IP operation, and two DC inputs with screw locks and LED power status.
- Virtual media - Remote software installation, OS updates and diagnostics from DVD/CD drives, USB storage, folders and ISO images, even at BIOS level.
- Advanced security - TLS 1.2 with RSA 2048 certificates, AES 256 and 3DES encryption, RADIUS, LDAP, LDAPS and Active Directory authentication, and IP/MAC filtering.
- Management and alerts - Up to 64 accounts and 32 concurrent users, event logging, email, SNMP trap and Syslog notifications, and a Relay/DI terminal for remote reboot and temperature, humidity or door sensors.
Specifications| Manufacturer | ATEN | | Model | CN9950 | | Type | Single port KVM over IP switch, DisplayPort | | Resolution | Local console 4096 x 2160 at 30Hz, remote 4096 x 2160 | | Console ports | 2 x USB Type A, 1 x DisplayPort, 2 x mini stereo jack | | Computer ports | 1 x USB Type B, 1 x DisplayPort, 2 x mini stereo jack | | Audio | Through the 3.5 mm jacks only, not over DisplayPort | | LAN | 2 x RJ-45 10/100/1000Mbps | | LUC port | 1 x USB Mini-B for a laptop | | Control terminal | 5-pin Relay/DI | | Power | 2 x DC jack, DC 5V | | Power consumption | 9.76W | | Users | Up to 64 accounts, up to 32 concurrent | | Security | TLS 1.2, RSA 2048, AES 256, RADIUS / LDAP / LDAPS / Active Directory | | Virtual media | USB 1.1/2.0 DVD/CD, USB storage, folders, ISO images | | Management interface | Browser and AP GUI, Windows, Mac, Linux | | Housing | Metal | | Operating temperature | 0°C to 50°C | | Weight | 0.85 kg | | Dimensions | 20 x 14.93 x 2.85 cm |
In the box- CN9950 KVM over IP switch
- DisplayPort cable (1.5 m)
- USB-A to USB-B cable (1.8 m)
- USB-A to Mini-USB cable (1.8 m)
- Power adapter and power cord
- Control terminal block
- Mounting kit
- Foot pad set
- User instructions
|
