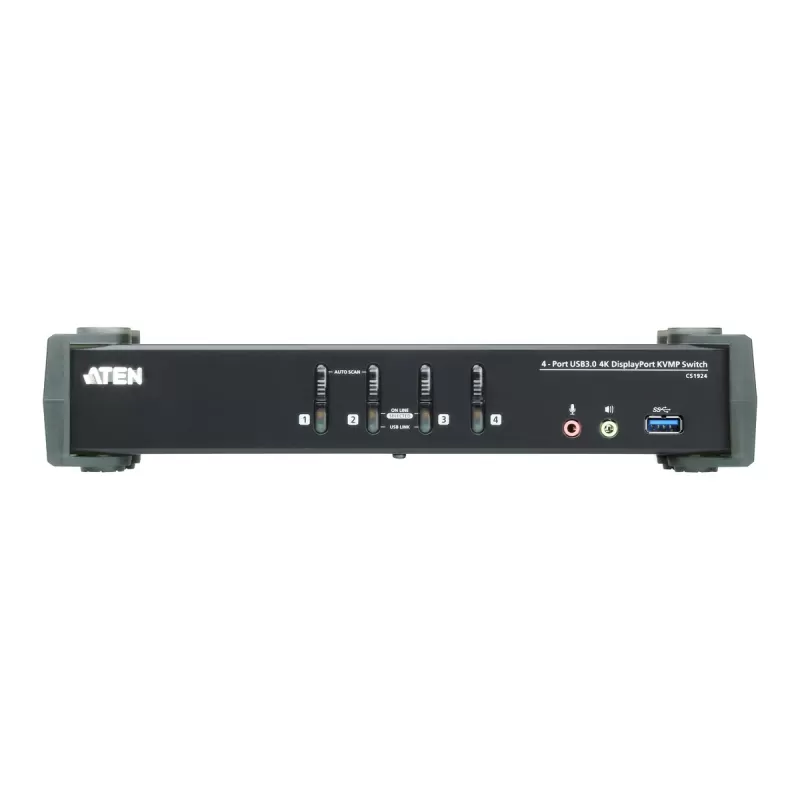

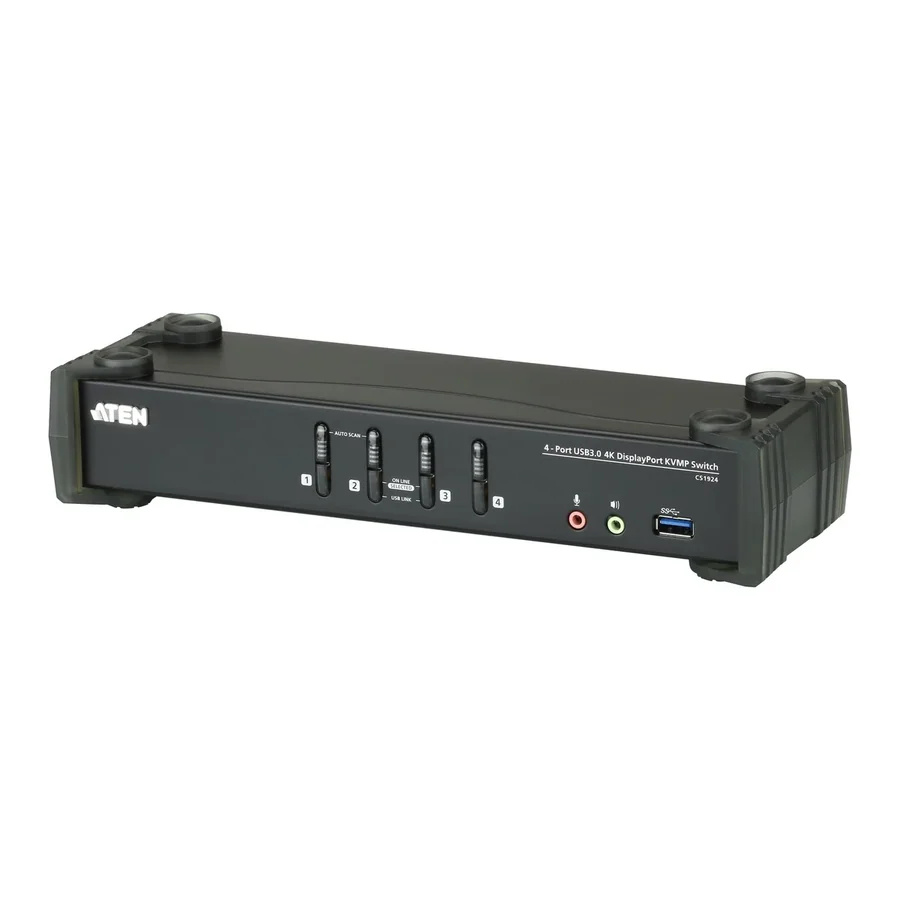

| Revew | ATEN CS1924 4-Port USB 3.0 4K DisplayPort KVMP Switch (Cables included)The ATEN CS1924 is a desktop KVMP switch for four DisplayPort computers that works with a single USB keyboard, mouse and monitor. It is DisplayPort 1.2 compliant and supports 4K UHD (3840 x 2160 @ 60Hz), 4K DCI (4096 x 2160 @ 60Hz) and 2560 x 1440 @ 144Hz, and MST lets you run multiple monitors through a single DisplayPort connector. A built-in 2-port USB 3.1 Gen 1 hub (5Gbps) shares peripherals, and independent switching of KVM, USB and audio focus removes the need for a separate USB hub or print server. Speaker and microphone jacks for every computer and 2.1 sound support suit graphic design, animation, video editing and CAD/CAM. All cables for the four computers are included.
Key features- Four DisplayPort computers - One USB keyboard, mouse and monitor control four computers, selected with front panel pushbuttons, hotkeys or the mouse.
- 4K at 60Hz - Supports 4K UHD and 4K DCI at 60Hz and 2560 x 1440 @ 144Hz, DisplayPort 1.2 and HDCP compliant.
- MST and DP++ - MST drives multiple monitors through one DisplayPort connector (requires DisplayPort 1.2 daisy-chain monitors or an MST hub), and DP++ accepts HDMI or DVI sources through an adapter.
- USB 3.1 Gen 1 hub - Two USB-A ports, front and rear, with up to 5Gbps for sharing drives, printers and peripherals.
- 2.1 audio and HD Audio - Speaker and microphone jacks for each computer, full bass response for 2.1 systems and HD audio over DisplayPort.
- Convenience and compatibility - Power on detection, hot plugging, keyboard and mouse emulation, Windows, Mac and Linux support with Mac keyboard support, Auto Scan Mode and upgradable firmware.

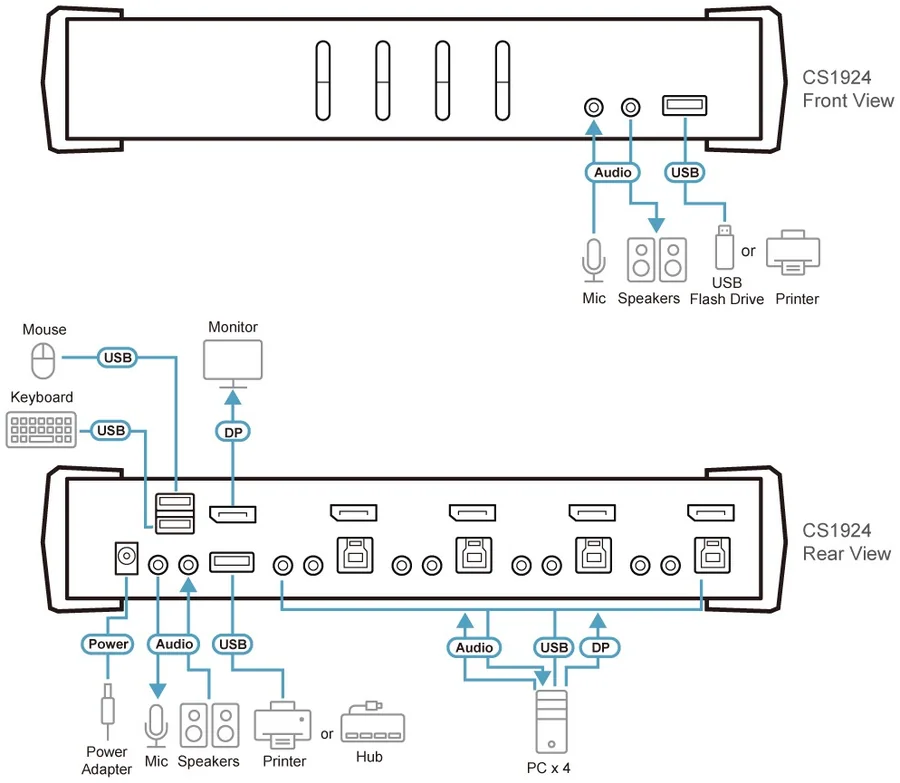

Specifications| Manufacturer | ATEN | | Model | CS1924 | | Type | Desktop KVMP switch (DisplayPort, USB 3.0, audio) | | Computer connections | 4 | | Max resolution | 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz | | Compliance | DisplayPort 1.2, HDCP, MST, DP++, HD Audio | | Console ports | 2 x USB-A, 1 x DisplayPort, 2 x 3.5 mm speaker jack, 2 x 3.5 mm microphone jack (front and rear) | | Computer ports | 4 x DisplayPort, 4 x USB 3.1 Gen 1 Type-B, 4 x 3.5 mm speaker jack, 4 x 3.5 mm microphone jack | | USB hub | 2 x USB 3.1 Gen 1 Type-A (5Gbps), front and rear | | Port selection | Pushbuttons, hotkeys, mouse | | Operating systems | Windows, Mac, Linux | | Scan interval | 1-99 seconds (default 5) | | Power consumption | DC 5V, 2.99W | | Operating temperature | 0-50°C | | Humidity | 0-80% RH, non-condensing | | Housing | Metal and plastic | | Dimensions | 27 x 8.8 x 5.55 cm | | Weight | 0.91 kg |

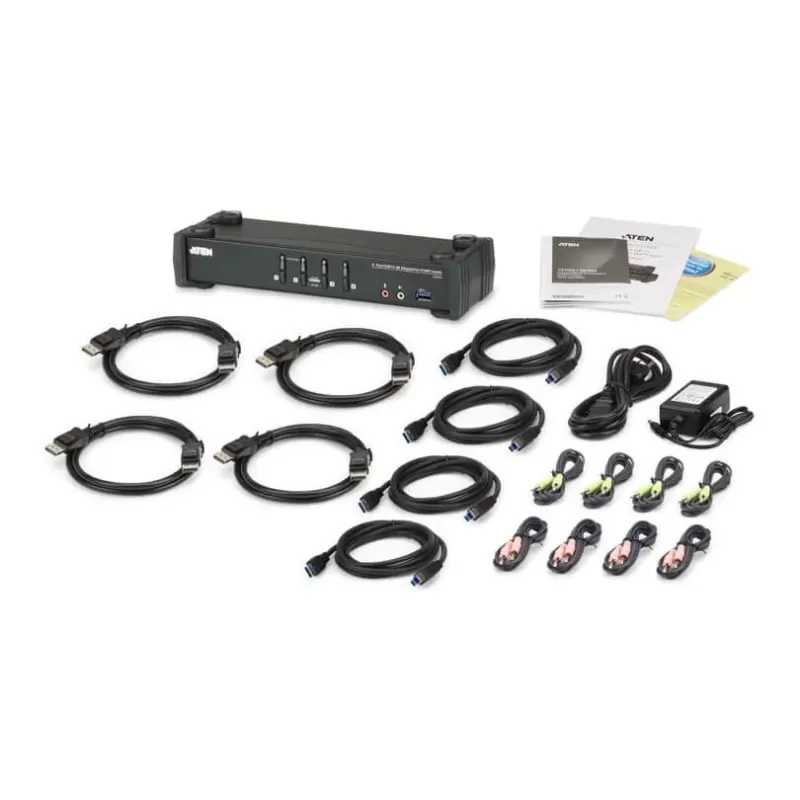

In the box- ATEN CS1924 switch
- 4 x DisplayPort 1.2 cable, 1.5 m
- 4 x USB 3.0 cable (A to B), 1.8 m
- 8 x audio cable, 1.8 m
- Power adapter
- User instructions
|
