KVM switch Luggar 17" Rackmount HDMI LCD KVM Switch (16 Ports) KVM16-HD

Luggar 17" Rackmount HDMI LCD KVM Switch (16 Ports)

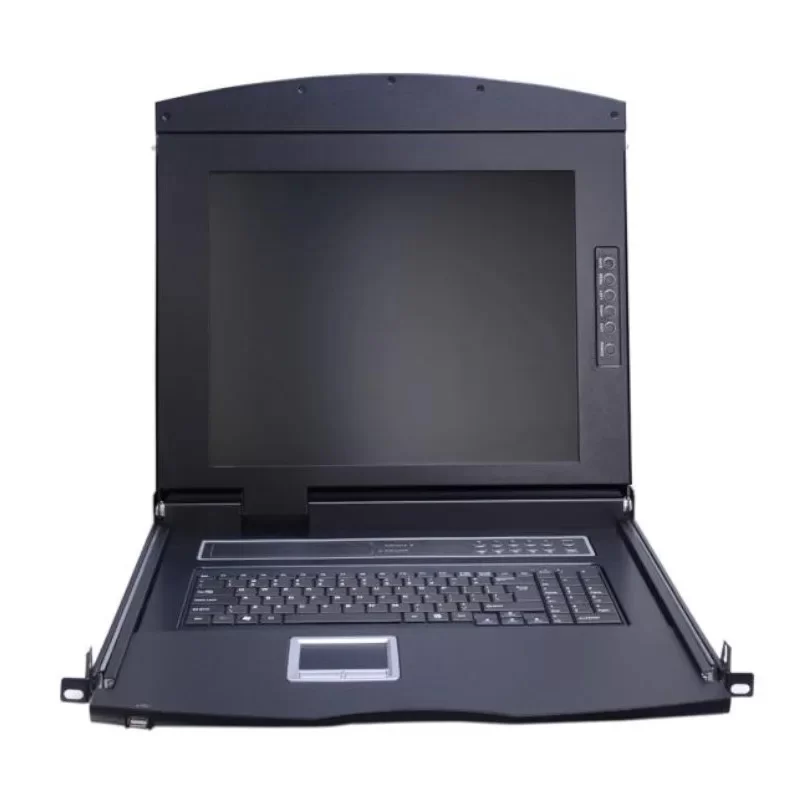

The Luggar KVM16-HD is a console drawer for a network or server cabinet that combines a widescreen LCD, keyboard and mouse with an HDMI KVM switch for 16 computers. Pull out the drawer, open the screen and switch between servers from one place, without a separate monitor and keyboard for each computer.

The 17.3-inch 16:9 screen shows 1920x1080 at 60Hz, and the KVM module supports resolutions of up to 4K at 30Hz. You switch computers with the front panel buttons, hotkeys or the OSD menu, with no software or drivers to install on the connected computers, and Windows, Linux, Mac and Sun are supported. The total length is 611 mm, and the drawer fits cabinets 800 to 1200 mm deep.

Key features

• Full HD widescreen - A 17.3-inch 16:9 LCD with an AHVA panel, LED backlight and 1920x1080 resolution at 60Hz.

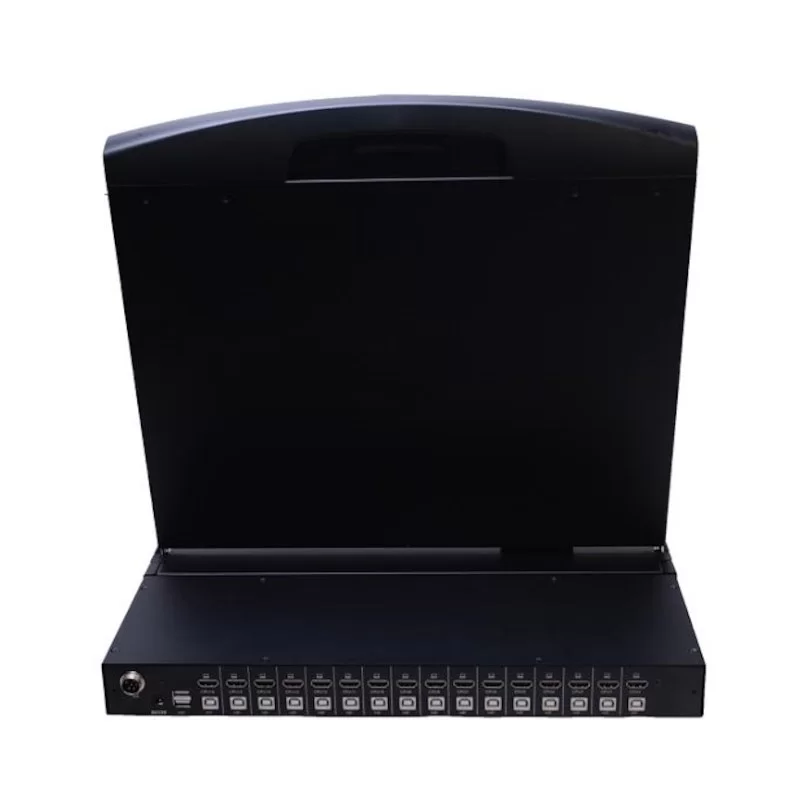

• 16 computers over HDMI - 16 HDMI inputs and 16 USB Type B ports for the computers, with up to 4K at 30Hz supported by the KVM module.
• Integrated keyboard and mouse - A detachable 100-key keyboard with a choice of 9 languages, a built-in mouse and an extra USB port for an external mouse.
• Simple switching - Select a computer with the front panel buttons, hotkeys or the OSD menu, with auto scan at 3 to 60 second intervals.
• No software, BIOS-level access - Connected computers recognize the switch directly with no software or drivers, with access down to BIOS level.
• Security and expansion - User login can be set in the OSD menu, and the system can be extended to remote network control with an IP BOX.

Specifications
