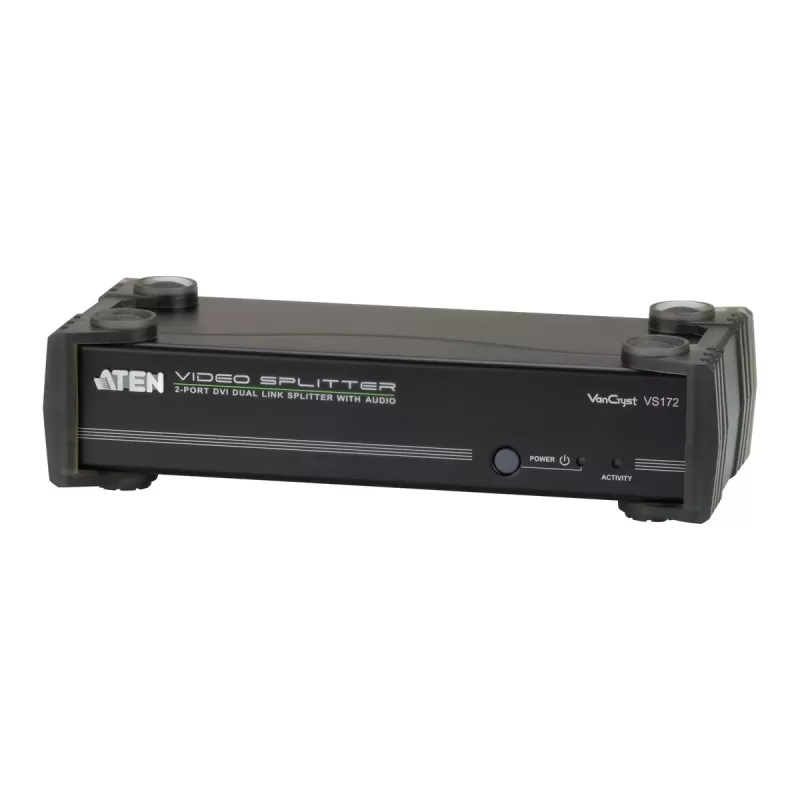

Split view ATEN VS172 2-Port DVI Dual Link/Audio Splitter VS172 Color:black

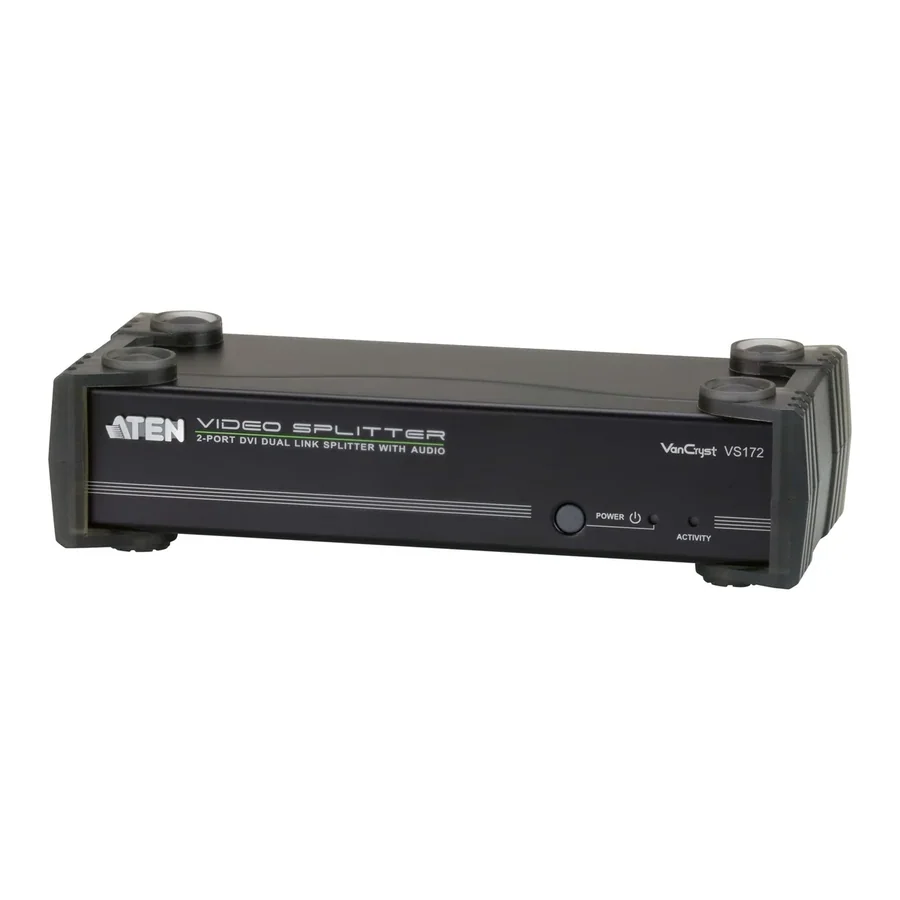

ATEN VS172 2-Port DVI Dual Link/Audio Splitter

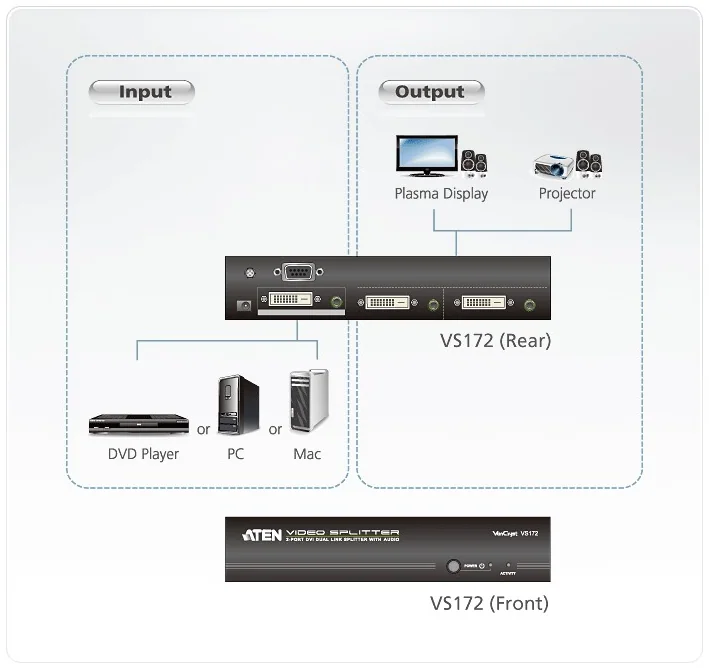

The ATEN VS172 replicates DVI video and audio from one source to two DVI-compatible monitors or projectors. Dual Link technology provides high bandwidth, so the splitter supports resolutions of up to 2560 x 1600 at 60Hz, including 2K at 2048 x 2048.

A bi-directional RS-232 port on the rear panel allows control from a PC or control system, and the splitter can be cascaded up to three levels to show the picture on up to 8 displays. It suits public information displays, training facilities and classrooms.

Key features

• DVI Dual Link to two displays - One DVI source is duplicated to two monitors or projectors together with stereo audio.
• High resolution - Up to 2560 x 1600 at 60Hz, including 2048 x 2048 at 60Hz, with a data rate of up to 13.5Gbps.
• RS-232 control - A bi-directional DB-9 port for control from a PC, controller or automation software, plus control of cascaded units over the DVI cable.
• Cascade to 8 displays - The splitter can be cascaded up to 3 levels to distribute the picture to up to 8 displays.
• EDID Expert - Selects suitable EDID settings over RS-232 (Default / Port 1 / Auto).

Specifications

In the box

• VS172 splitter
• Power adapter
• User instructions
