Split view ATEN VS194 4-Port 4K DisplayPort Splitter VS194 Color:black

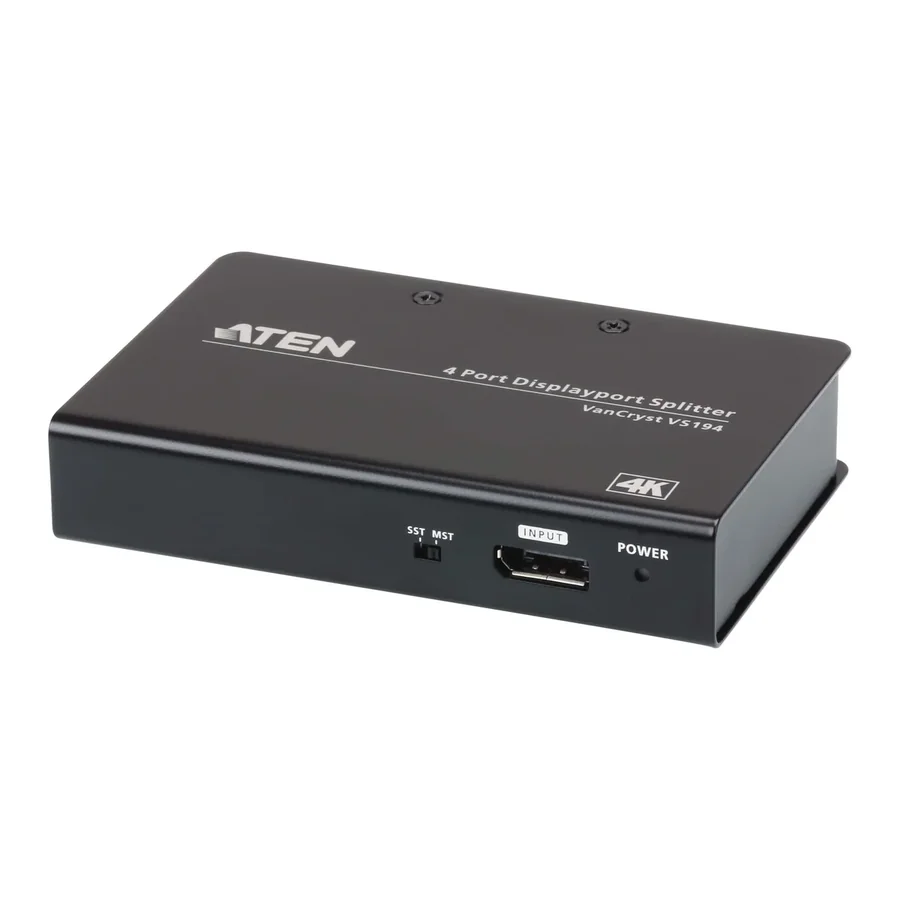

ATEN VS194 4-Port 4K DisplayPort Splitter

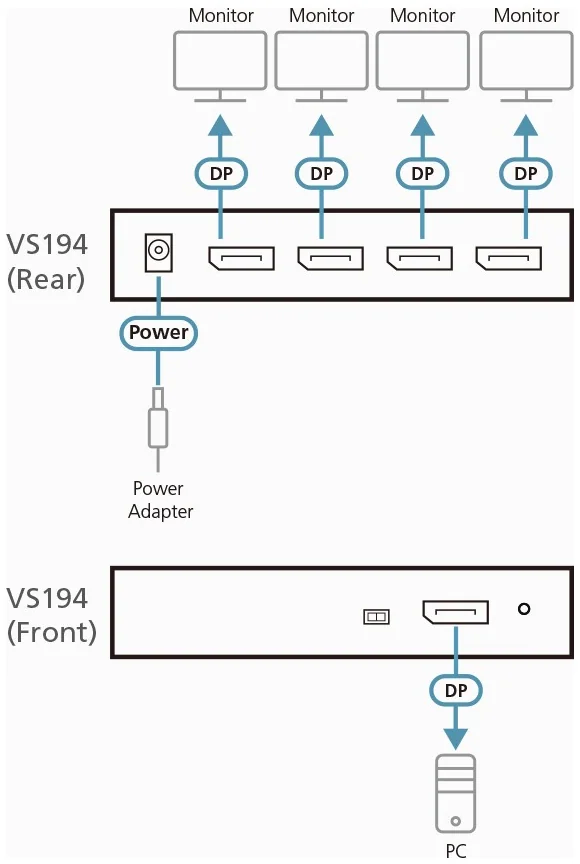

The ATEN VS194 connects one DisplayPort source to four DisplayPort displays and supports true 4K resolution up to 4096 x 2160 at 60Hz. It does not only duplicate the picture but can also extend the desktop across all four displays.

In SST mode every display shows the same picture, and in MST mode the source shows a separate image on each display. The splitter is compatible with DisplayPort 1.2a and HDCP 1.3, offers a data rate of up to 21.6Gbps and suits corporate, educational and multi-display projects.

Key features

• Four DisplayPort displays - One DisplayPort input and four DisplayPort outputs in a compact unit.
• True 4K at 60Hz - Up to 4096 x 2160 / 3840 x 2160 at 60Hz on each display, with an HBR2 link rate of 21.6Gbps.
• MST extend mode - Extends the desktop across four displays with a different image on each one.
• SST split mode - Shows the same picture on all four displays, with the resolution set by the display on port 1.
• Standards compliance - DisplayPort 1.2a and HDCP 1.3 compliant, with cables of up to 4.6 m on the input and each output.

Specifications

In the box

• VS194 splitter
• Power adapter
• User instructions
