Switch HDMI ATEN VM0202HB 2x2 True 4K VM0202HB Color:black

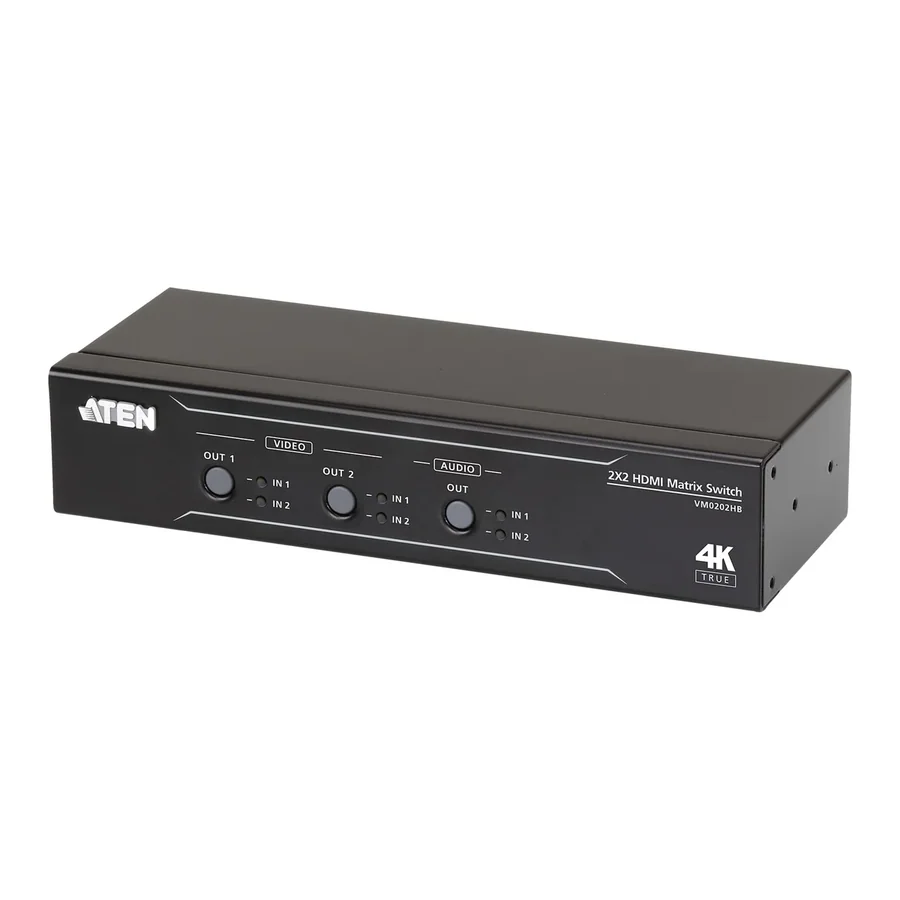

ATEN VM0202HB 2x2 True 4K HDMI Matrix Switch

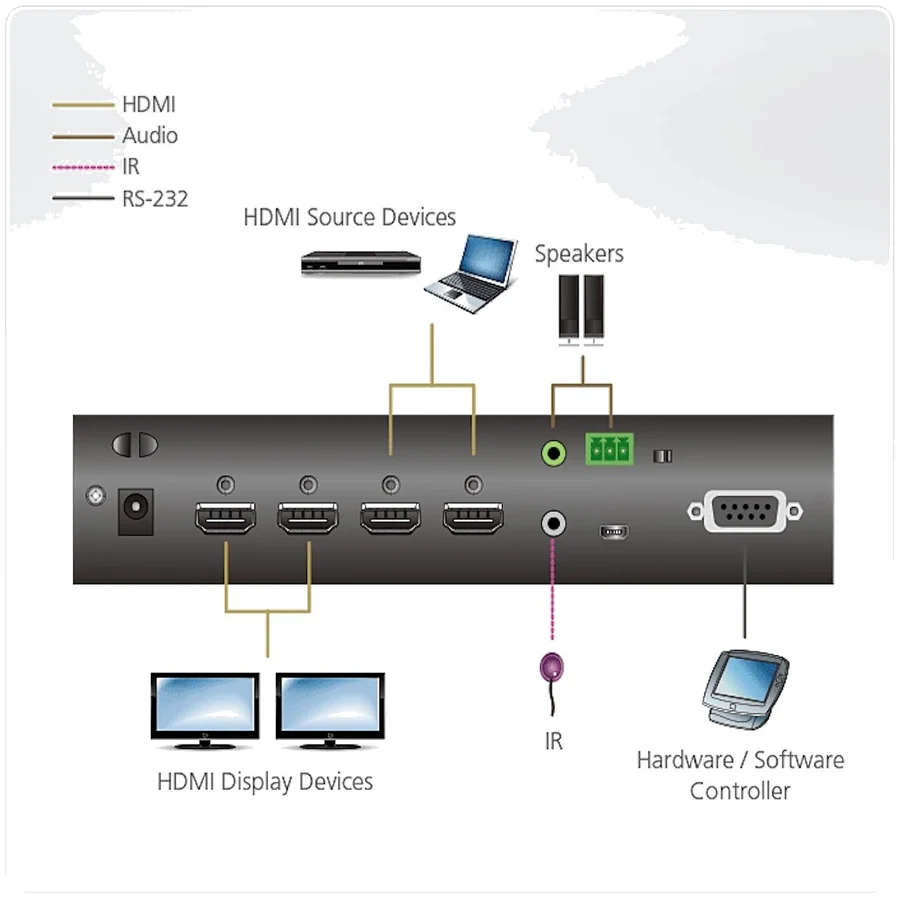

The ATEN VM0202HB is a 2x2 HDMI matrix switch: two sources, such as a computer and a media player, and two displays or projectors, with any input routed to any output. There is no need to move cables to show different content on each display, which makes it suitable for meeting rooms, classrooms and any venue with two sources and two displays.

The switch supports resolutions up to 4096x2160@60Hz (4:4:4), HDR (HDR10+, HLG, static and dynamic HDR) and data rates up to 18Gbps. Audio can go to the display over HDMI or be output separately through a stereo mini jack or line out for the room's sound system. It is controlled with front-panel pushbuttons, an IR remote or RS-232, and the all-metal housing is rack mountable.

Key features

• Any source to any display - Routes 2 HDMI sources to 2 displays in any combination, with LEDs showing the selected source.
• True 4K and HDR - Up to 4096x2160@60Hz with 4:4:4 sampling, 18Gbps (6Gbps per lane), HDR10+ and HLG, Deep Color and 3D.
• Audio de-embedding - HDMI audio is extracted to a mini stereo jack or a 3-pole line out, with support for Dolby TrueHD and DTS-HD Master Audio.
• Auto switching - Plugged mode switches to a newly connected source, and Unplugged mode switches to the remaining source when the active one is disconnected. Off by default and set via RS-232.
• Control and integration - Front-panel pushbuttons, IR remote with receiver, RS-232 for control systems, CEC, EDID Expert and support for LockPro HDMI cable locks.

Specifications

In the box

• VM0202HB matrix switch
• 3-pole terminal block
• Power adapter
• IR remote control
• IR receiver
• Rack mount kit
• User instructions
