Splitter USB-C Gold Touch USB3.1 Type C To Multi Port w/i DisplayPort SU-C15 Color:silver

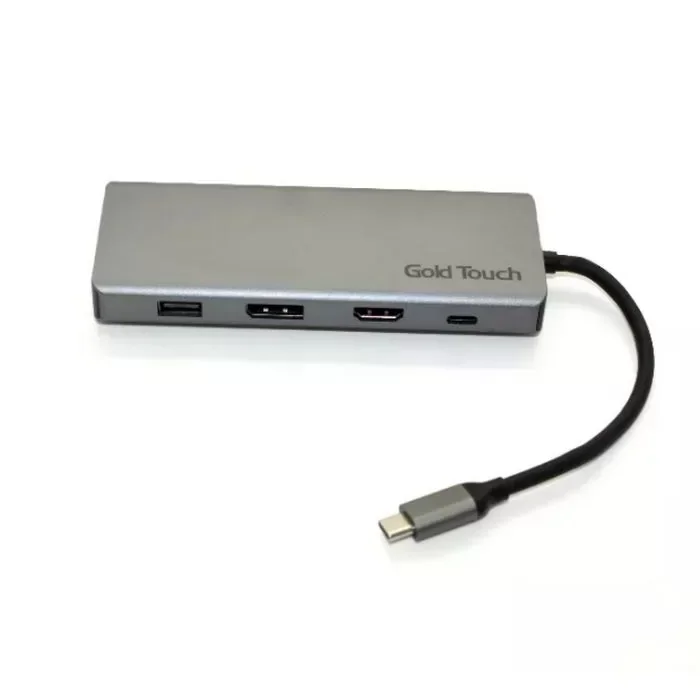

Docking Station Gold Touch USB3.1 Type C To Multi Port w/i DisplayPort

The Gold Touch SU-C15 is a docking station that connects to a laptop through a USB 3.1 Type-C port (DP Alt Mode) and turns it into a full workstation: three video outputs (HDMI, DisplayPort and VGA), Gigabit LAN, two USB 3.0 and two USB 2.0 ports, SD and TF card slots, an audio jack and Power Delivery charging up to 100W.

HDMI and DisplayPort show up to 4K UHD (3840x2160) at 30Hz and VGA up to 1920x1080 at 60Hz. One, two (1920x1080/60Hz each) or three displays can be connected. Extended mode with multiple displays is supported on Windows; on a Mac multiple displays work in mirror mode only.

The laptop charger plugs into the dock, which passes up to 100W (20V/5A) to the laptop under PD 3.0, so a single cable gives the laptop video, network, peripherals and power. The body is small, 120x50x15 mm, with a built-in 145 mm Type-C cable.

Key features

• Three video outputs - HDMI and DisplayPort up to 3840x2160 at 30Hz and VGA up to 1920x1080 at 60Hz. Work with one 4K display, two displays at 1920x1080/60Hz or three displays.
• Power Delivery 3.0 up to 100W - The laptop USB-C charger plugs into the dock, which passes up to 100W (20V/5A) to the laptop while all ports are in use.
• Gigabit LAN - A 10/100/1000BASE-T LAN port gives a stable wired network connection, even for laptops without an Ethernet port.
• 4 USB ports - Two USB 3.0 ports up to 5Gbps for external drives and two USB 2.0 ports up to 480Mb/s for keyboard, mouse and printer. Total USB output up to 5V/900mA.
• SD and TF card slots - SD 3.0 and TF 3.0 (microSD) slots with read/write up to 104MB/s, and both slots can work together.
• Audio jack and compact body - An audio jack for headphones or speakers, a 120x50x15 mm body and a built-in 145 mm Type-C cable.

Specifications
