Name: Adapter EDID ATEN VC081A 4K HDMI EDID Emulator VC081A
Brand: Aten
SKU: 90999
Price: 396.00 ILS
Availability: InStock

Adapter EDID ATEN VC081A 4K HDMI EDID Emulator VC081A

In the importer's stock

* The picture is for illustration only

Short review: ATEN VC081A HDMI EDID emulator adapter: it learns and stores the display's EDID and passes it to the source, with 4K at 60Hz and HDCP 2.2 support., Manufacturer: Aten, Condition: New, SKU: 90999

Adapter EDID ATEN VC081A 4K HDMI EDID Emulator VC081A

Pick up and delivery options:

Collection from the Ashdod branch - 0₪
PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
Home delivery - 45 shekels - over 2999₪ - Free Delivery
Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

Payment options:

Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
Bank transfer (Deferred payment not accepted), Bit, PayBox
Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
PayPal - Only Shipments With a Tracking Number

Наличие: In stock at supplier: delivery to branch within: 7 business days
Print:
Brand: Aten
SKU: 90999
MPN: VC081A

Aten

₪396

Qty

Add to Cart

Buy Now!

Add to Wish List Compare this Product

Send us a question on WhatsApp

Send a question about this product

Technical Specifications

Specification

Revew

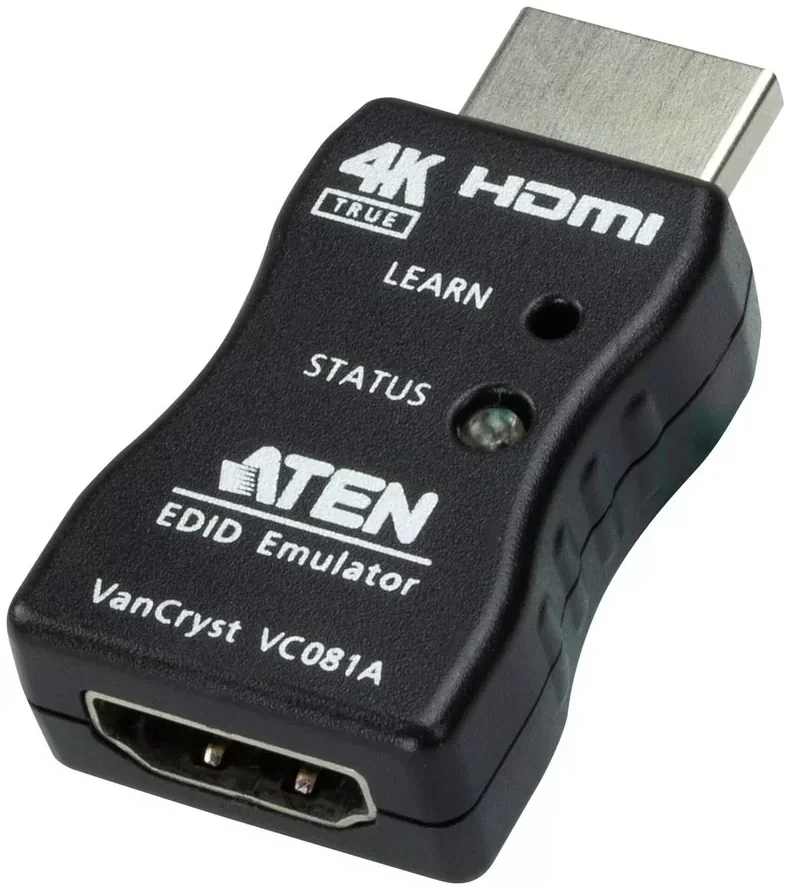

ATEN VC081A 4K HDMI EDID Emulator

The ATEN VC081A is a small adapter that emulates and stores one EDID set from a connected display and passes it to the video source. This helps prevent blank or blinking displays caused by EDID synchronization failures in professional audio and video systems.

The adapter sits between an HDMI source and a display or cable and is powered by the source, so it needs no external power supply. Pressing the learn button starts learning mode, in which the adapter stores the display's EDID up to 4K at 60Hz.

ATEN VC081A 4K HDMI EDID Emulator

Key features

One-button EDID learning - A single button starts learning mode, and the adapter stores the display's EDID and passes it to the source.
Prevents blank or blinking screens - Storing the EDID avoids synchronization problems between the source and the display in professional setups.
True 4K support - Up to 4096 x 2160 / 3840 x 2160 at 60Hz (4:4:4) in learning mode, with HDMI 3D, Deep Color and HDCP 2.2.
No external power - The adapter takes 5V from the HDMI source and draws only 0.1W, and an LED shows the learning status.
Small and light - It measures 4.40 x 2.40 x 1.18 cm and weighs 0.08 kg, in a plastic housing.

Specifications

Manufacturer	ATEN
Model	VC081A
Input	HDMI Type A male
Output	HDMI Type A female
Default resolution	1080p at 60Hz
Learning mode resolution	Up to 3840 x 2160 and 4096 x 2160 at 60Hz 4:4:4
Standards	HDMI (3D, Deep Color, True 4K), HDCP 2.2, CEC
EDID modes	Default / Learning
Power	5V DC from the source, 0.1W
Operating temperature	0 to 50°C
Dimensions	4.40 x 2.40 x 1.18 cm
Weight	0.08 kg
Housing	Plastic

Review

Warranty

1 year

Manufacturer Part Number

VC081A

Model

VC081A 4K HDMI EDID Emulator

Condition

New

EAN

4710469340314

Manufacturer

Aten

Characteristics

עכבה: 100Ωפורמטים: HDMI (3D, Deep Color, 4K)תאימות HDCP: כן – HDCP 2.2מצבים: ברירת מחדל / למידהמקור: Bus-powered דרך HDMIצריכה: 5V DC, 0.1Wטמפ' פעולה: 0–50°Cטמפ' אחסון: 20–60°Cלחות: 0–80% RH (ללא עיבוי)חומר: פלסטיקמידות: 4.40×2.40×1.18 ס"ממשקל: 0.08 ק"ג

Dimensions

4.40×2.40×1.18 ס"מ

Weight

0.08 ק"ג

Link To The Manufacturer'S Website

Get full product information - Go to product page

Product Link

Adapter EDID ATEN VC081A 4K HDMI EDID Emulator VC081A

Matching SKUs

ID:~90999~, NEW, OC: 46653, BND: 99366-330-00, MPN: VC081A, EAN: 4710469340314
