Name: Copper network cable DAHUA PFM920I-6U CAT6 UTP 305m PFM920I-6U Color:white
Brand: Dahua
SKU: 117598
Price: 920.00 ILS
Availability: InStock

Copper network cable DAHUA PFM920I-6U CAT6 UTP 305m PFM920I-6U Color:white

In the importer's stock

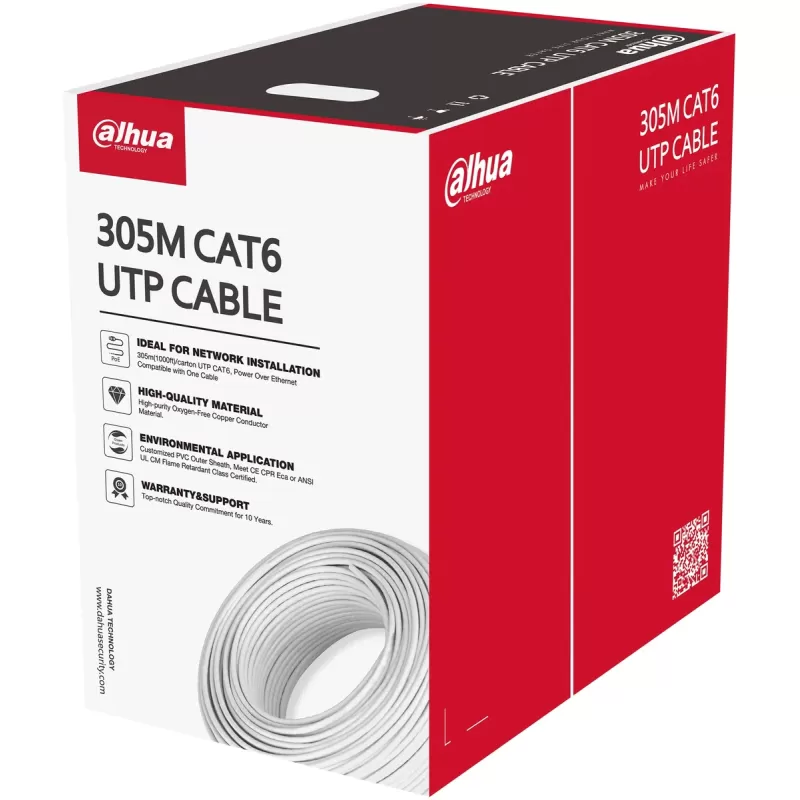

* The picture is for illustration only

Short review: Dahua PFM920I-6U CAT6 UTP network cable on a 305 m reel, with 99.97% pure oxygen-free copper 23AWG conductors and a white PVC sheath., Manufacturer: Dahua, Color: white, Length: 305m, Condition: New, SKU: 117598

Copper network cable DAHUA PFM920I-6U CAT6 UTP 305m PFM920I-6U Color:white

Pick up and delivery options:

Collection from the Ashdod branch - 0₪
PICKUP collection points - 20₪ - over 199₪ - Free Delivery (For small packages)
Home delivery - 45 shekels - over 2999₪ - Free Delivery
Self-collection from the importer - 0₪ - contact us for pick up option

*Except for cases of abnormal size/weight

Payment options:

Up to 6 interest-free Credit Card (7-36 with interest) payments through a website, phone, or Ashdod branch
Bank transfer (Deferred payment not accepted), Bit, PayBox
Cash at the Ashdod Branch - Up to 6000₪ only or above 6000₪ up to 10% of the order amount and not more than 6000₪ in cash as per the law
PayPal - Only Shipments With a Tracking Number

Наличие: In stock at supplier: delivery to branch within: 10 business days
Print:
Brand: Dahua
SKU: 117598
MPN: PFM920I-6U

Dahua

₪920

Qty

Add to Cart

Buy Now!

Add to Wish List Compare this Product

Send us a question on WhatsApp

Send a question about this product

Technical Specifications

Specification

Revew

DAHUA PFM920I-6U CAT6 UTP 305m Copper Network Cable

The Dahua PFM920I-6U is an unshielded CAT6 (UTP) network cable supplied in a 305 m carton for structured cabling in buildings, IP cameras, access points and any Ethernet equipment. It also supports Power over Ethernet on the same cable.

The four twisted pairs use oxygen-free copper (OFC) conductors with 99.97% purity and a diameter of 0.57 mm (23AWG), HDPE insulation, a PE cross separator and a rip cord. The outer sheath is white PVC with a diameter of 6.3 mm.

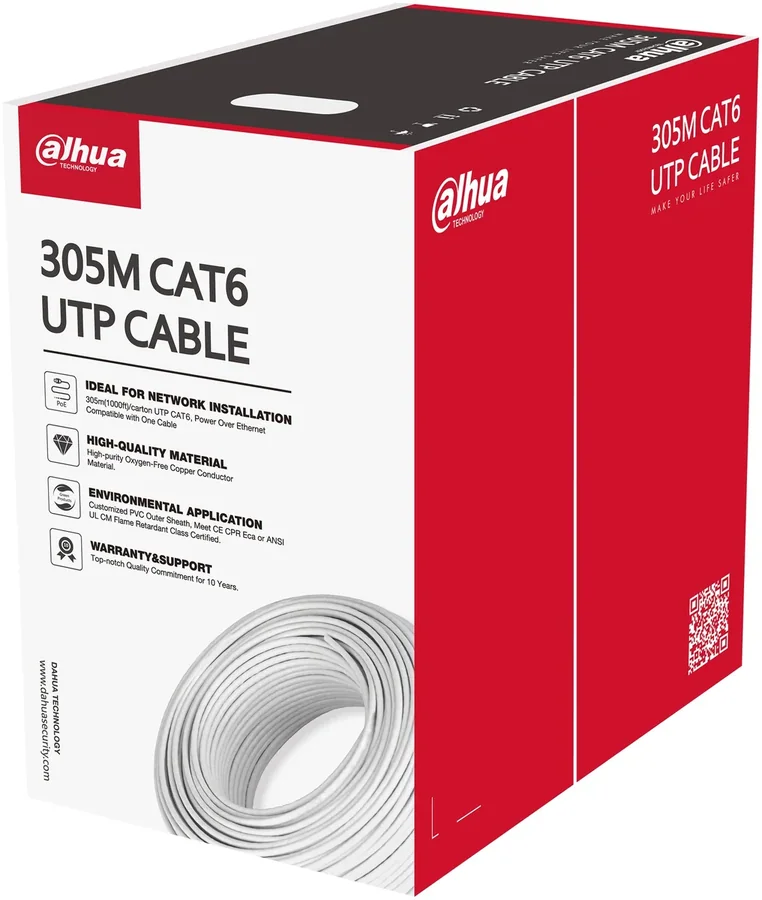

DAHUA PFM920I-6U CAT6 UTP 305m Copper Network Cable

Key features

Solid copper - Oxygen-free copper conductors with 99.97% purity, no copper-clad aluminium.
CAT6 UTP - Unshielded 4-pair cable for Ethernet networks and PoE.
305 metres - A 305 m carton for building-wide cabling.
23AWG conductor - 0.57 mm conductors for a low resistance of up to 7.5 ohm per 100 m.
Careful construction - Cross separator, rip cord and a customized 6.3 mm PVC sheath.

Specifications

Manufacturer	Dahua
Model	PFM920I-6U
Type	CAT6 UTP network cable
Length	305 m
Conductor	Oxygen-free copper, 99.97% purity
Conductor diameter	0.57 mm (23AWG)
Insulation	HDPE, 1.0 mm diameter
Pairs	4 pairs: blue, orange, green, brown
Separator	PE
Sheath	White PVC, 6.3 mm diameter
DC resistance	Up to 7.5 ohm per 100 m
Characteristic impedance	100 ± 15 ohm
Return loss	17.3 dB or more per 100 m at 250 MHz
PoE	Supported
Installation bending radius	More than 8 times the cable diameter
Operating temperature	-20 to +60 °C
Installation temperature	0 to +50 °C
