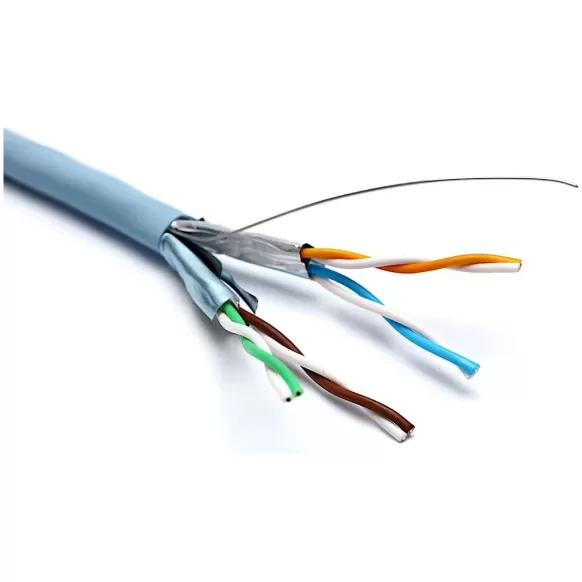

Network Cable Excel CAT6A U/FTP 23AWG LSOH 500m 100-191

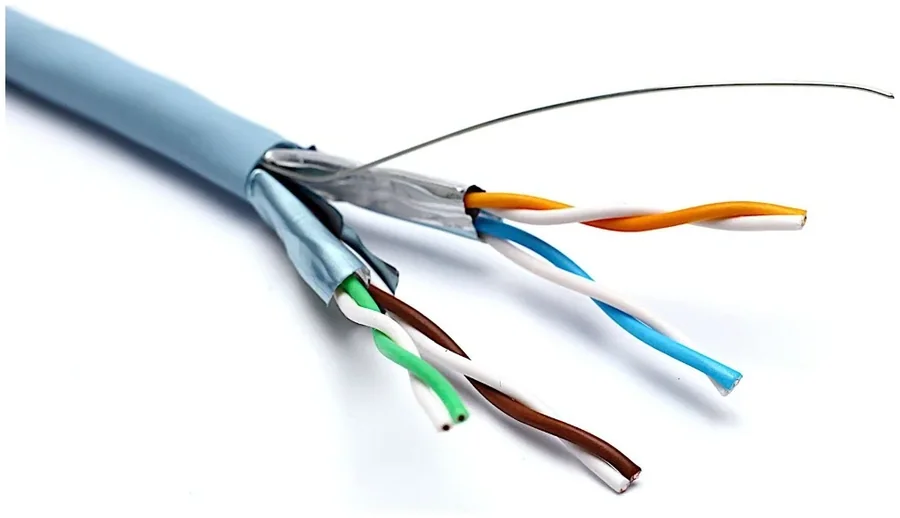

Excel CAT6A U/FTP 23AWG LSOH 500m Network Cable, Ice Blue

The Excel 100-191 is a screened Cat6A U/FTP network cable with solid copper conductors, designed for permanent structured cabling. It delivers Class EA performance and supports 10GBASE-T (10 Gigabit Ethernet) over links of up to 90 metres.

Each pair is protected by S-Foil screening, and the ice blue outer sheath is halogen-free LSOH with CPR fire class Dca-s2,d2,a1. The cable is supplied on a 500 m reel.

Key features

• Cat6A performance for 10G - Class EA performance supporting 10GBASE-T (10 Gigabit Ethernet) over links of up to 90 metres.
• S-Foil pair screening - Each pair is wrapped in aluminium/polyester foil and the pairs are arranged in an S configuration that keeps them separated for stable performance.
• Safe LSOH sheath - A halogen-free, low-smoke sheath with CPR fire class Dca-s2,d2,a1, suitable for installation in buildings.
• 23 AWG solid copper - Solid bare copper 23 AWG conductors for permanent structured cabling.
• 500 m reel - 500 metres on a reel for office and building network projects.

Specifications
