Network Cable Excel Cat6A F/FTP LSOH 3m gray 100-153

Excel Cat6A F/FTP LSOH 3m Patch Lead, Grey

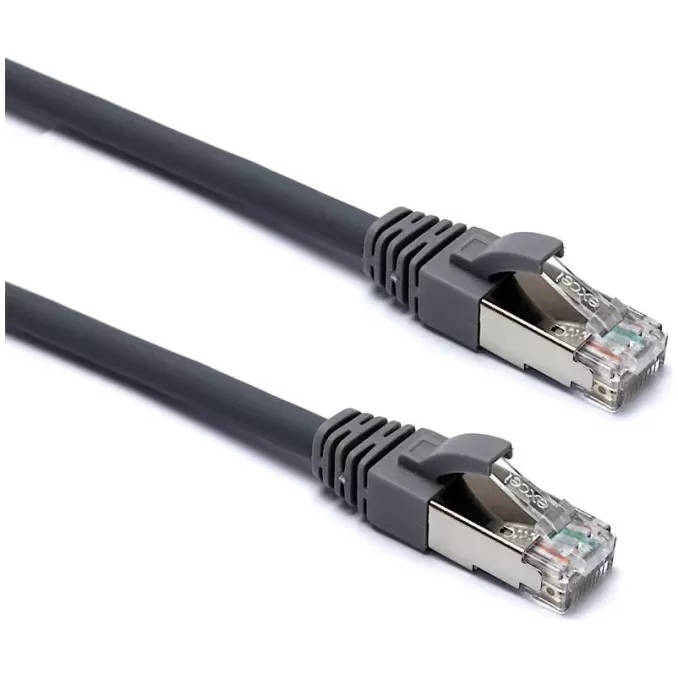

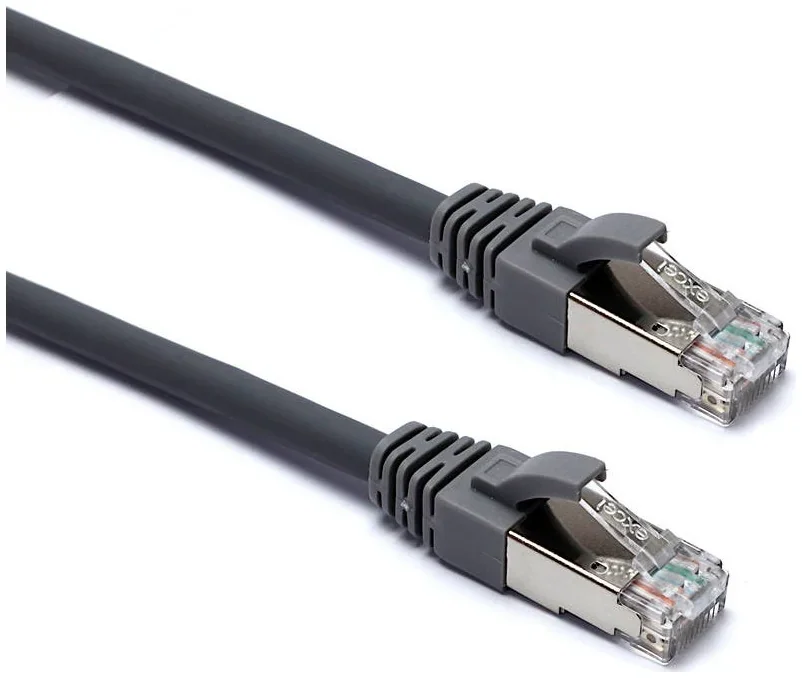

The Excel 100-153 is a 3 m Category 6A patch lead with a shielded RJ45 plug at each end. It is specified to 500 MHz and suits 10GBASE-T (10 Gigabit Ethernet) and PoE++ applications, connecting switches, routers, servers and end devices in patch panels and network cabinets.

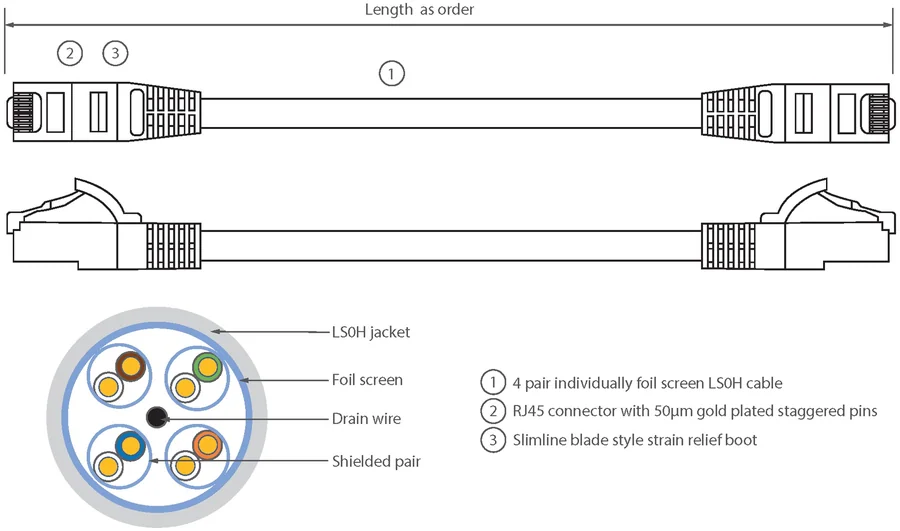

Each of the four twisted pairs has its own aluminium/polyester foil screen, and the conductors are 26 AWG stranded copper. The grey outer sheath is flame-retardant LSOH, and the slim moulded blade-style boots suit high-density switch and router ports.

Key features

• Cat6A for 10 Gigabit - Specified to 500 MHz and supports 10GBASE-T (10 Gigabit Ethernet) as well as PoE++ power delivery over the cable.
• Individually screened pairs - A separate aluminium/polyester foil around each pair, with different lay lengths for stable performance and reduced interference.
• Slim blade boot - A slim moulded strain relief boot with a latch protector, suited to high-density switch and router ports.
• LSOH sheath - A halogen-free, low-smoke, flame-retardant sheath for offices and server rooms.
• Shielded plugs - Shielded RJ45 plugs with gold-plated staggered pins and 1:1 wiring at both ends.

Specifications
