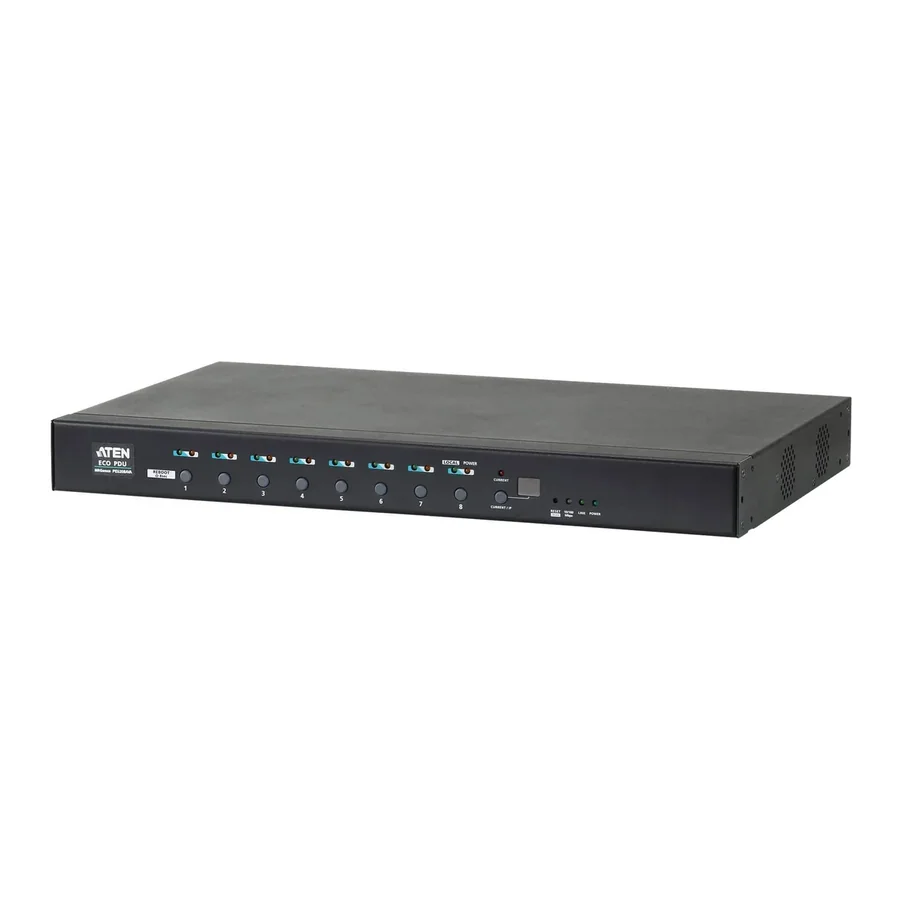

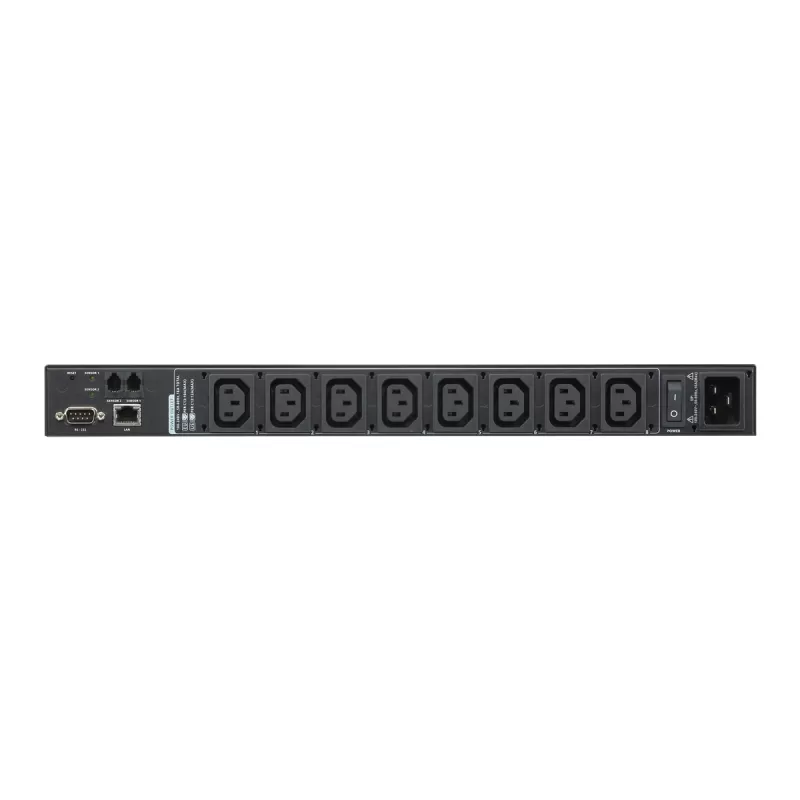

| Revew | ATEN PE6208AV 16A 8-Outlet eco PDUThe ATEN PE6208AV is an eco PDU intelligent power distribution unit designed for ProAV systems and also suited to server rooms. The 16A version has 8 IEC C13 outlets and an IEC C20 inlet, and measures current, voltage, power, power factor and energy at the unit (bank) level. The detachable front panel fits 19" racks of different depths, and front pushbuttons let you switch outlets on and off on the spot. Remotely you can control each outlet or outlet group over the network, RS-232, Control4 or the ATEN Control System, with power-on sequencing and overload protection.

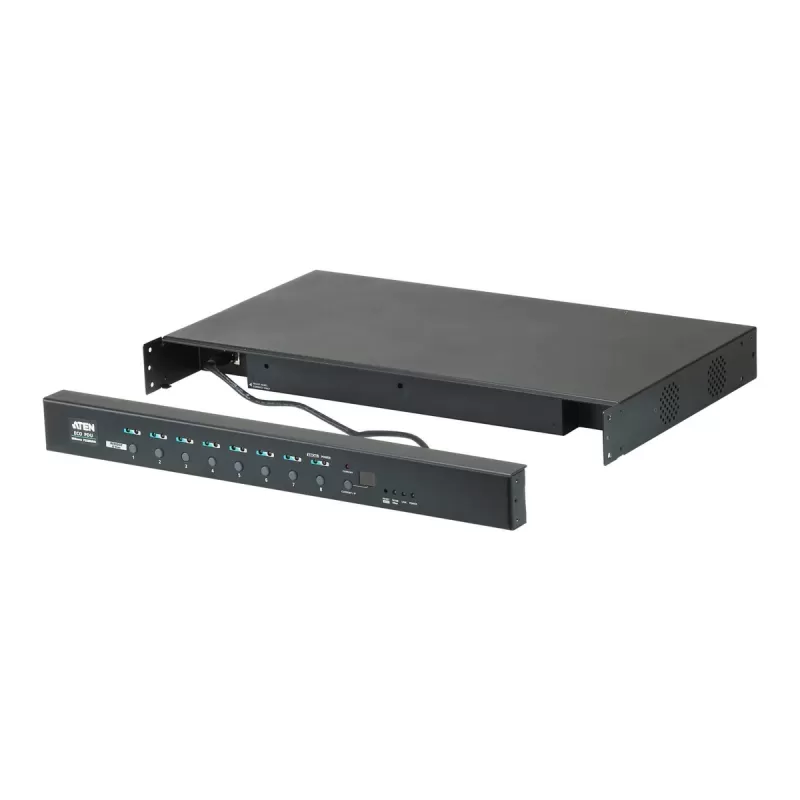

Key features- Detachable front panel - The front panel separates from the unit body and fits 19" racks of different depths next to AV equipment.
- Local and remote control - Switch on, switch off and power cycle individual outlets or outlet groups with the front pushbuttons, over the network or through the RS-232 port, including Wake on LAN.
- Control system integration - ATEN Control System and Control4 libraries let you integrate the PDU into an AV system without complex programming.
- Sequencing and overload protection - Set a power-on sequence and delay time for each outlet, and ATEN POP powers off the last outlet that caused a current overload to protect the equipment.
- Metering and environment monitoring - Bank-level current, voltage, VA, power factor and kWh metering with 1% accuracy, plus two ports for optional temperature and humidity sensors.
- Management and security - 10/100 Ethernet, browser interface, SNMP v1/v2/v3, 128-bit SSL, IP/MAC filter, RADIUS authentication and eco DC energy management software.
Specifications| Manufacturer | ATEN | | Model | PE6208AV | | Series | NRGence eco PDU | | Type | Switched intelligent PDU with bank-level metering | | Height | 1U | | Input voltage | 100-240V AC, 50-60Hz | | Max. current | 16A | | Max. input power | 3680VA | | Inlet | IEC 60320 C20 | | Outlets | 8 x IEC C13 (up to 10A per outlet) | | Metering | Current, voltage, VA, power factor and kWh at bank level | | Control interfaces | RJ-45 10/100 Mbps, RS-232 (DB-9), front pushbuttons | | Protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Telnet, SNMP v1/v2/v3 | | Integration | ATEN Control System, Control4 | | Environment sensors | 2 ports (optional sensors) | | Power cord length | 3 m | | Operating temperature | 0 to 40°C | | Dimensions | 43.24 x 26.72 x 4.4 cm | | Weight | 3.76 kg | | Color | Black |
In the box- ATEN PE6208AV PDU
- Power cord
- RJ-45 cable, 1.5 m
- 4 cable ties
- Footpad set
- Mounting kit
- User instructions
|
